Features:
- Insulated-gate bipolar transistor (IGBT) module
- Designed as a 62Pak phase leg module for high-power switching applications
- Features a copper (Cu) base-plate to reduce thermal resistance

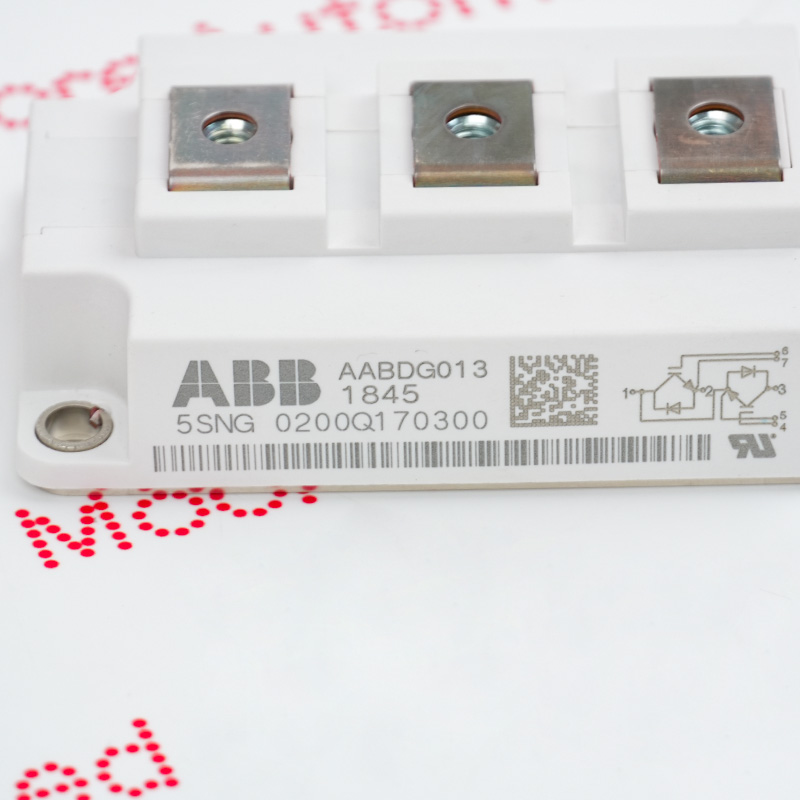

The 5SNG0200Q170300 is a high-power IGBT half-bridge module designed for industrial power electronics applications such as inverters, converters, and motor drives. It integrates two Insulated Gate Bipolar Transistors (IGBTs) with fast-switching diodes in a compact 62PAK package, providing efficient turn-on and switching performance.
This module supports high continuous and pulsed currents while maintaining thermal stability, enabling reliable operation in high-voltage, high-current systems. Its robust design allows for use in harsh environments, while its extremely low on-resistance makes it easy to install and provides a long service life.
The 5SNG0200Q170300 ABB IGBT module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 5SNG0200Q170300 IGBT module INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 5SNG0200Q170300 operates by controlling the current flowing through its IGBT switches using a gate-emitter voltage signal. When a positive voltage is applied to the gate, the IGBT turns on, and current flows from the collector to the emitter. Conversely, removing or reversing the gate voltage turns the device off. An integrated freewheeling diode handles reverse current during switching transients, enabling efficient power transfer and pulse-width modulation operation.
1. Motor Drives: Used in low- and medium-voltage variable frequency drives (VFDs) for precise motor control in industrial automation.
2. Renewable Energy: Integrated into solar inverters and wind turbine converters for managing power generation and grid connection.
3. Power Supply: Commonly used in uninterruptible power supplies (UPS) and high-frequency switching power supplies (SMPS) for data centers and critical infrastructure.
4. Grid Infrastructure: Used in static var compensators (SVCs) and other power quality systems to stabilize the power grid.
5. Transportation: Used in traction auxiliary converters for locomotives, subways, and trams to power onboard systems such as air conditioning and lighting.
6. Induction Heating: Ideal for high-power industrial heating processes due to its rapid switching capability.
