Features:

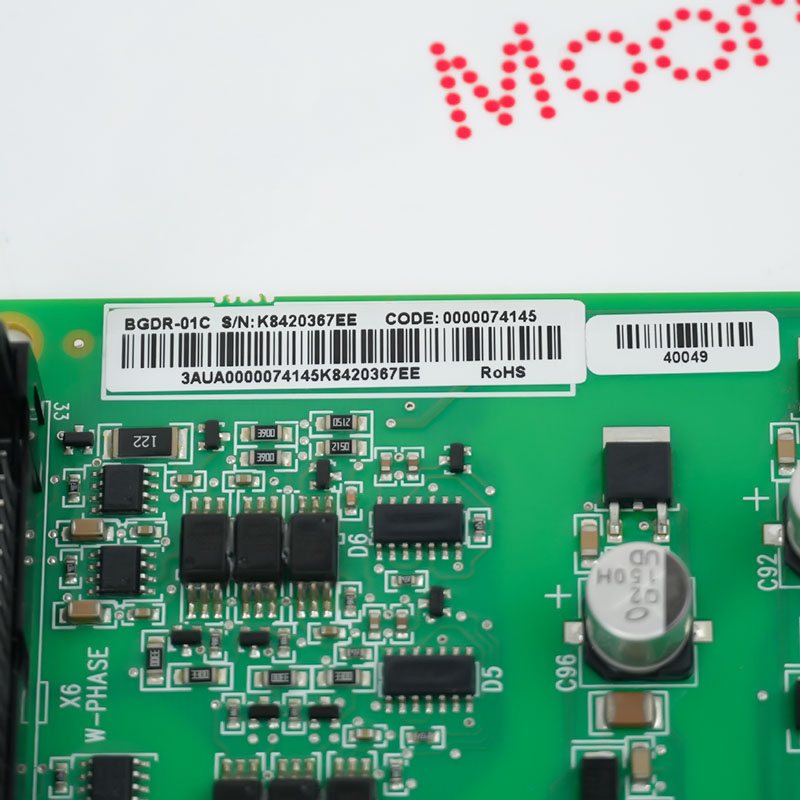

- Gate Driver Board
- Compatible drive family ACS880-04, ACS580-04
- Controlling the switching performance of power electronic devices such as IGBTs and MOSFETs
This module plays a crucial role in frequency converters or industrial drive systems, performing signal amplification and isolation. It converts low-power control signals from the control board into drive signals suitable for power switching devices, thereby achieving efficient control of the motor or load. Its design focuses on ensuring the accuracy and stability of the switching process to improve overall operating efficiency and reliability.
This module is typically integrated into ABB frequency converter drive systems, working in conjunction with the control unit and power module to precisely regulate the motor's operating status. Simultaneously, its structural design emphasizes industrial-grade reliability, capable of withstanding harsh conditions such as high temperature, high vibration, and continuous operation, thus ensuring long-term stable system operation.
The BGDR-01C 3AUA0000074145 ABB Gate Driver Board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB BGDR-01C 3AUA0000074145 Gate Driver Board info(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The BGDR-01C 3AUA0000074145 receives PWM or logic control signals from the control unit, isolates, shapes, and amplifies them, and then outputs them to the gate of the power switching device. Its internal drive circuit employs high-speed switching and isolation technology to ensure that the drive signal maintains good anti-interference capability and timing accuracy even under high-voltage environments, thereby achieving reliable turn-on and turn-off control of the power device.
VFDs: Primarily used as backup control boards for ABB ACS880-04 and ACS580-04 series VFDs.
Power Module Control: Designed for rack sizes such as the ACS880-104-R8i (R8i module) and ACS580-04 (R10 and R11 racks).
Industrial Automation: Widely used in motor drives, power inverters, and uninterruptible power supply (UPS) systems requiring precise control of IGBT or MOSFET switching.
Power Conversion: Enables efficient power conversion by managing gate voltage and current, thus reliably switching power devices.
