Features:

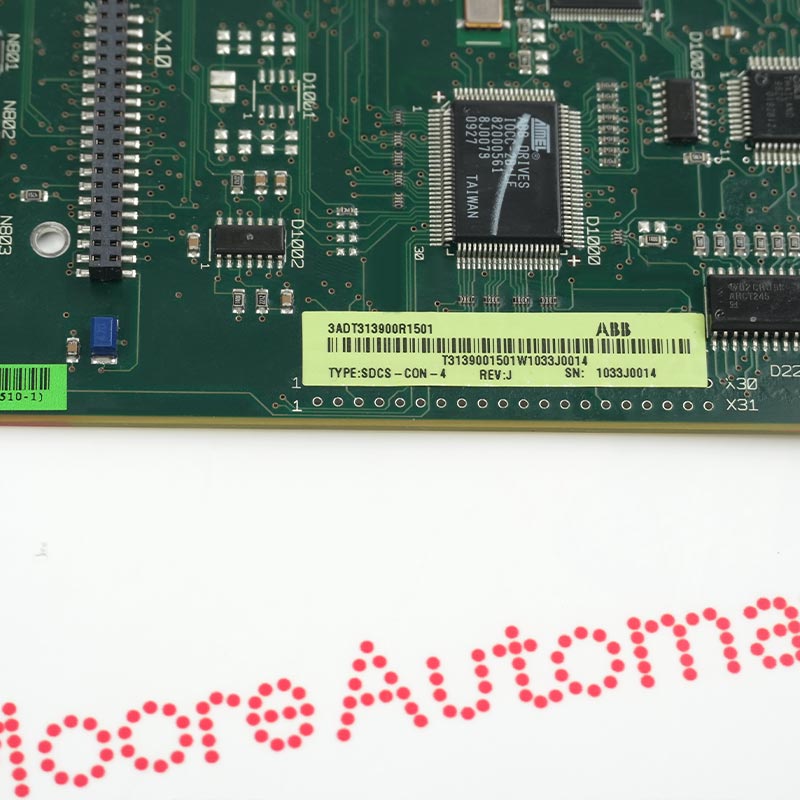

- 3ADT313900R1501 SDCS-CON-4 is the complete listed product identity for the supplied hardware execution.
- The documented hardware is an ABB main control board selected for its assigned equipment role.
- Installation requires a verified match to DCS 800, the connected assemblies and the approved configuration.
3ADT313900R1501 SDCS-CON-4 is an ABB main control board selected by its complete product identity and documented equipment role. Its suitability depends on the installed DCS 800 system, hardware execution, interfaces and application requirements matching the supplied unit. Visual similarity or a shortened code is not proof of interchangeability.
Before replacing 3ADT313900R1501 SDCS-CON-4, record the full nameplate, installed position, connector or terminal arrangement, paired equipment and relevant ABB service information. After installation, verify power, communication and control interfaces, complete the approved functional checks and confirm stable operation before returning the equipment to service.
The 3ADT313900R1501 SDCS-CON-4 ABB Main Control Board is supplied subject to exact-item verification. Current revision, lifecycle status, availability and supplied scope are confirmed in the written quotation.
ABB 3ADT313900R1501 SDCS-CON-4 documentation and reference links.
Important Notice: Every linked document must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
The control board has an internal watchdog. The watchdog controls the running of the control board program. If the watchdog trips, it has the following effects:
• Writing to FPROM is disabled.
• Thyristor firing control is reset and disabled.
• Digital outputs are forced low.
• Programmable analogue outputs are reset to zero, 0V.
When building or commissioning drive systems, the SDCS-CON-4 can be configured to operate in specific mechanical architectures:
Four-Quadrant (Regenerative) Control: Configured to handle forward and reverse drive and braking actions. This control board continuously triggers two full-power SCR rectifier bridges, feeding kinetic braking energy back to the plant's AC grid.
Master-Slave (Load Balancing) Array: Suitable for devices where two independent DC motors are mechanically coupled to the same shaft or drum (e.g., dual-motor mine hoists). One SDCS-CON-4 acts as the speed master, while the other control board tracks the speed via high-speed driver-to-driver (D2D) communication to precisely match torque output.
Excitation Reversal System: Manages high-speed motor operation above reference speed (field weakening mode) by dynamically adjusting the excitation current via an external excitation card (e.g., SDCS-FEX-4).
After installing 3ADT313900R1501 SDCS-CON-4, inspect the mounting and wiring, verify power and communication interfaces, complete the approved functional tests and confirm stable operation before returning the equipment to service.
