Features:
- IGBT MODULE+DRIVE IGBT KIT

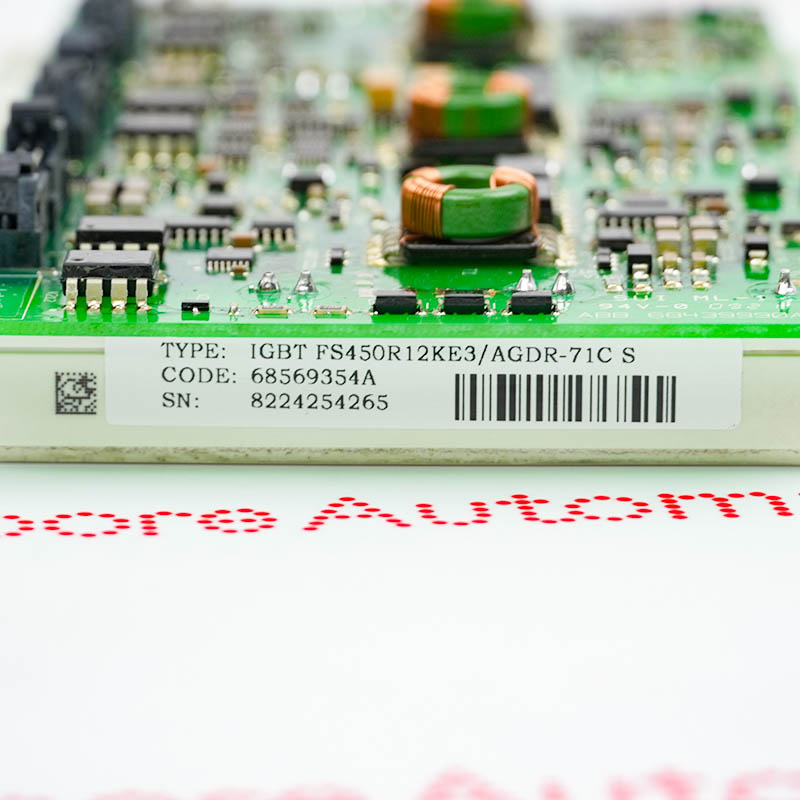

- Combines a high-power Infineon IGBT module with an ABB AGDR-71C gate driver board
- It is a critical power component used primarily as a spare part for large industrial variable frequency drives (VFDs)
The FS450R12KE3/AGDR71CS is a high-power IGBT module designed for industrial and renewable energy applications, providing efficient and reliable control of high-power loads. It supports voltage and current ratings suitable for demanding motor drives, inverters, and power converters.
The module integrates fast-switching IGBT components and a freewheeling diode, ensuring robust thermal performance at high frequencies while minimizing conduction and switching losses. Its compact package facilitates mechanical integration and optimizes heat dissipation in high-power systems.
The FS450R12KE3/AGDR71C S ABB IGBT-Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB FS450R12KE3/AGDR71C S IGBT-Module MANUAL(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The FS450R12KE3/AGDR71CS operates by using a gate signal provided by the drive controller to control the current flowing through its IGBT switches. When a gate voltage is applied, the IGBT allows current to flow from the collector to the emitter, thus powering the load. When the gate signal is removed, the current is rapidly interrupted. An integrated freewheeling diode provides a reverse current path during switching, enabling efficient pulse-width modulation (PWM) operation and precise voltage and current regulation in high-power converter systems.
Variable Frequency Drives (VFDs): Used to control the speed and torque of heavy-duty induction motors (such as pumps, fans, and compressors) in water treatment and HVAC systems.
Renewable Energy Converters: Power conversion stages in wind turbines and large solar inverters for synchronizing DC power with the AC grid.
Heavy Industrial Machinery: Drive units for conveyor systems, cranes, and hoists integrated into mining and material handling environments.
Marine and Traction Propulsion: Auxiliary power converters for marine and electrified railway systems, suitable for applications requiring high current density and high reliability.
