Features:
- ABB SYNCHROTACT 4 module,Excitation Control Unit (ECU) module
- Primarily functioning as a Synchronizing and Voltage Matching Module or an Excitation Control Unit (ECU)
- It is a critical component for the automatic synchronization of generators to the gridand the control of synchronous motors

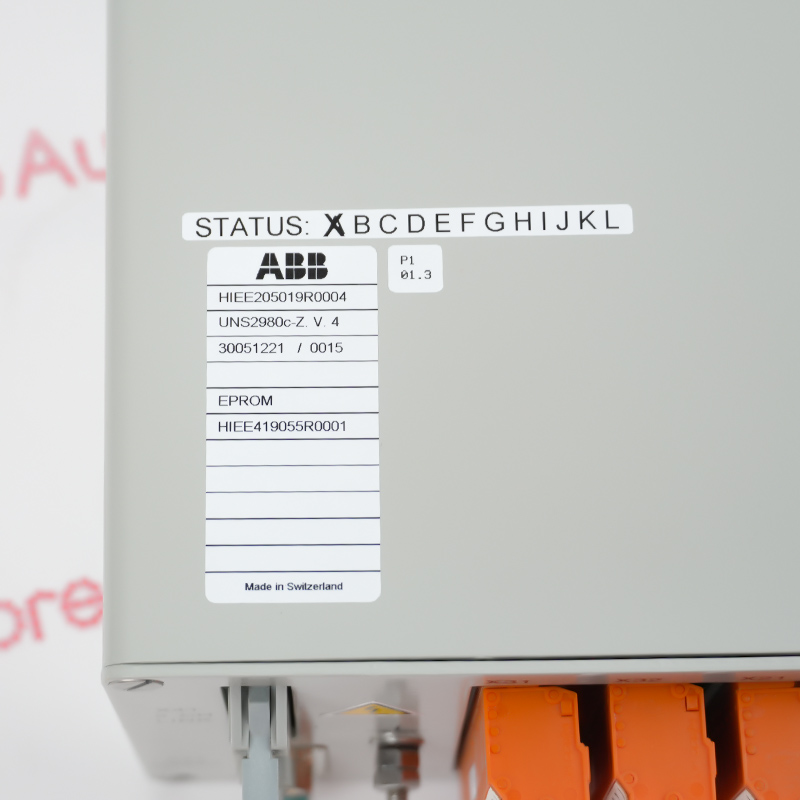

The ABB HIEE205019R0004 (model UNS2980C-Z.V.4) is a high-performance excitation control unit (ECU) module primarily used in synchronous generators and motors in power plants, industrial facilities, and large-scale energy systems.
As part of the ABB SYNCHROTACT 4 series, this module precisely controls the excitation current and implements intelligent regulation strategies to ensure stable power system operation. It features robust real-time monitoring and fault diagnosis capabilities, tracking key parameters during the excitation process and automatically handling faults when anomalies are detected.
The HIEE205019R0004 UNS2980C-Z.V.4 ABB Excitation Control Unit may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB HIEE205019R0004 UNS2980C-Z.V.4 Excitation Control Unit INFO(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Its operating principle is based on a closed-loop feedback control mechanism. It acquires signals such as the generator or motor's output voltage and current, calculating the deviation between the actual operating state and the setpoint. Subsequently, the module's internal processor adjusts the trigger pulses of the power equipment according to a preset control algorithm (e.g., PID control), thereby dynamically changing the current in the excitation winding, ultimately achieving the goal of automatically maintaining unit voltage stability or regulating reactive power.
- Generator Synchronization: Achieves precise automatic synchronization between generators and the power grid by monitoring voltage, frequency, and phase angle differences.
- Excitation Control: Manages excitation current and implements intelligent regulation strategies for synchronous motors and generators in large energy systems.
- Multi-Motor Control: Supports the simultaneous management and optimization of multiple asynchronous motors in complex automation environments.
- Industry Applications: Widely used in nuclear power plants, chemical plants, hydroelectric power plants, and heavy manufacturing.
