Features:

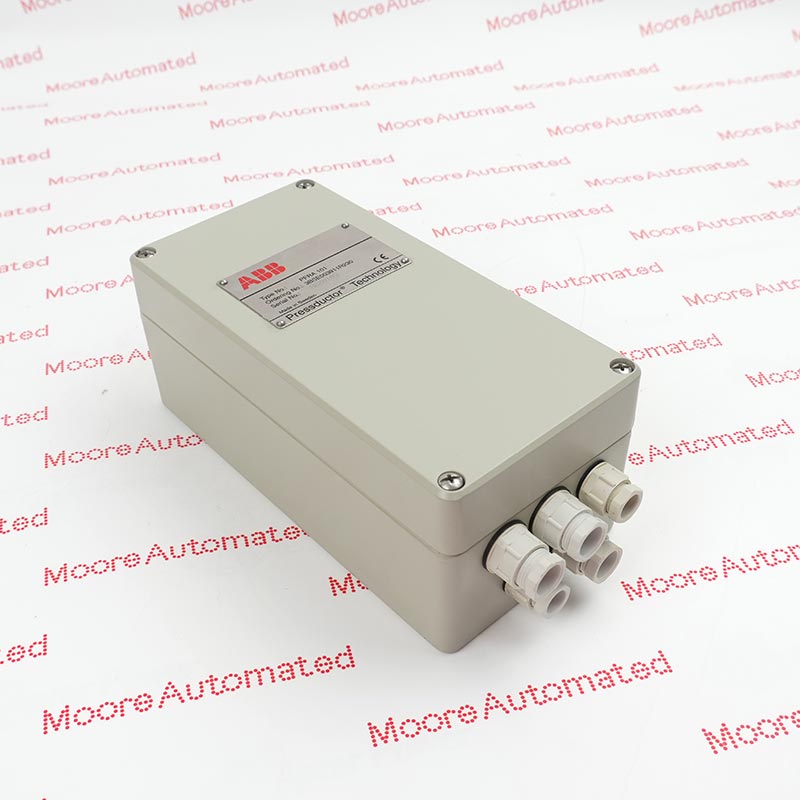

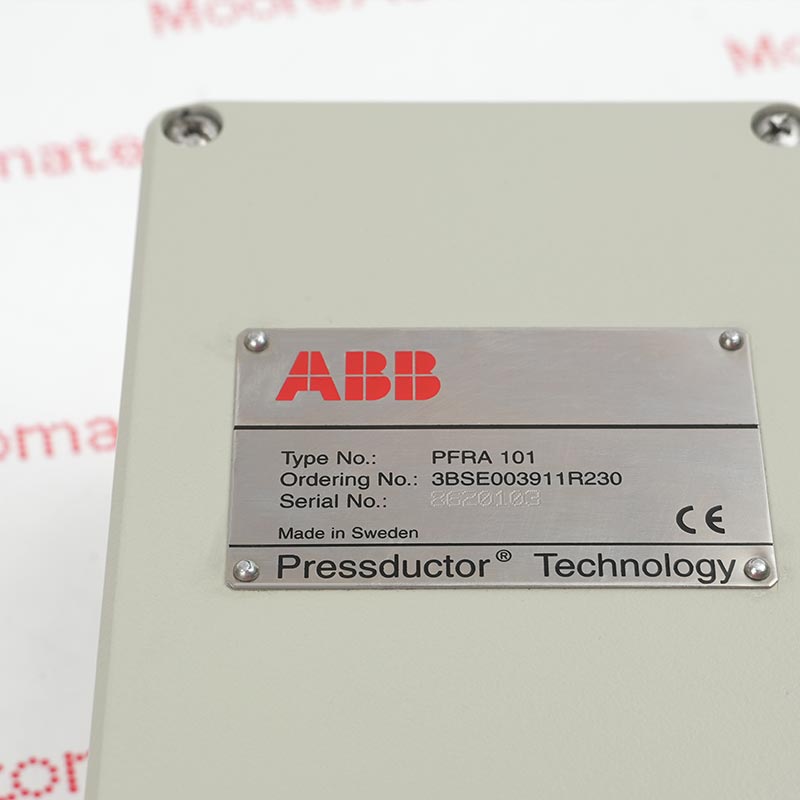

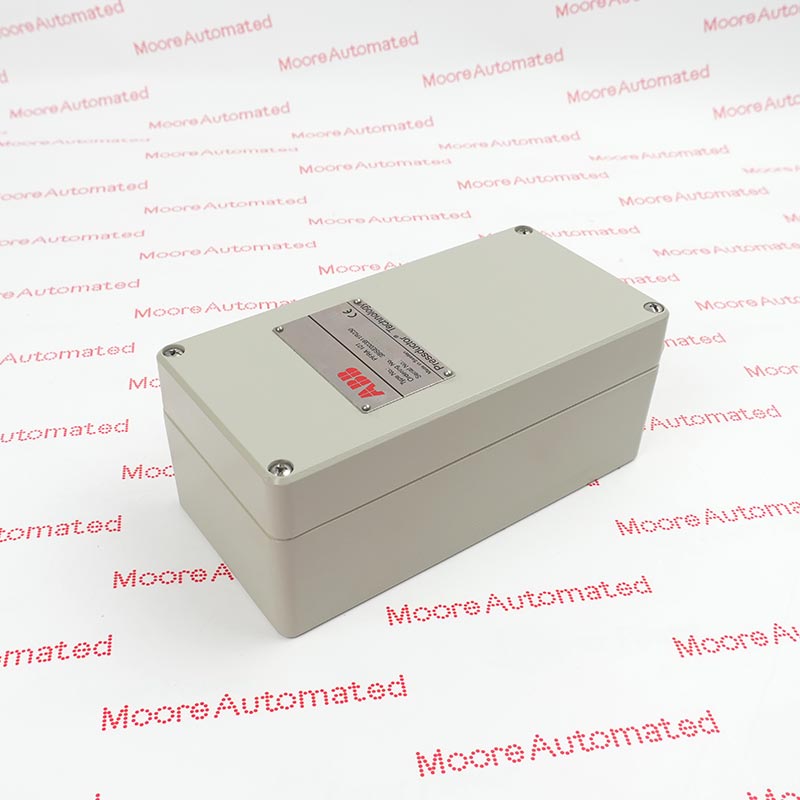

- ABB article 3BSE003911R230 identifies the PFRA101 Pressductor control unit prepared for a 230 V supply.
- Confirm article 3BSE003911R230, PFRA101 designation, 230 V execution, connected load cells, analog interfaces, control function and enclosure wiring.
- Use PFRA101 only in the documented Pressductor force or web-tension system whose sensor and control-loop records identify this 230 V execution.
PFRA101 3BSE003911R230 must be matched to the receiving equipment and project record. Isolate the supply and process loop, label sensor and output wiring, preserve shielding and grounding, and copy only the approved calibration and control settings. Verify excitation and signal wiring, zero and span, indicated force or tension, analog output direction and closed-loop response before production.
Official source: official ABB PFRA101 product PDF. Values not tied to the exact official source are withheld.
PFRA101 3BSE003911R230 official technical documentation and verified Moore Automated resources.
Important Notice: Confirm the complete model, article number and installed configuration before replacement. All links open in a new page.
Match article R230 and the documented supply arrangement.
Confirm connected load cells, cabling, shielding and measurement range.
Verify zero, span, indication, analog output and closed-loop direction.
