Features:
- 4–20 mA two-wire intelligent electro-pneumatic positioner with local operator panel.
- Single-acting fail-freeze output with standard linear or rotary actuator mounting.
- Includes plug-in 4–20 mA analog position feedback, M20 cable entry and G 1/4 air connections.
V18345-1010261001 is an ABB TZIDC intelligent electro-pneumatic positioner configured by its complete order string. Code 10 defines the standard varnished-aluminium housing and actuator mounting; the following codes identify the 4–20 mA two-wire input, no explosion-protection option, single-acting fail-freeze output, M20 x 1.5 and G 1/4 connections, analog feedback module and standard design.
Before replacement, record the nameplate, actuator model and travel, mounting kit, lever or coupling geometry, air-supply pressure, tubing, signal wiring, feedback wiring, action direction and configured end positions. Do not copy settings from a nearby TZIDC execution with a different suffix. After installation, run the approved adaptation procedure and prove full travel, direction, end stops, fail-freeze behavior, analog feedback, leakage and stable valve response before service.
The ABB V18345-1010261001 TZIDC intelligent electro-pneumatic positioner may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB V18345-1010261001 documentation and reference links.
Important Notice: Confirm the complete order identity, hardware execution, receiving-system configuration and required document revision before replacement.

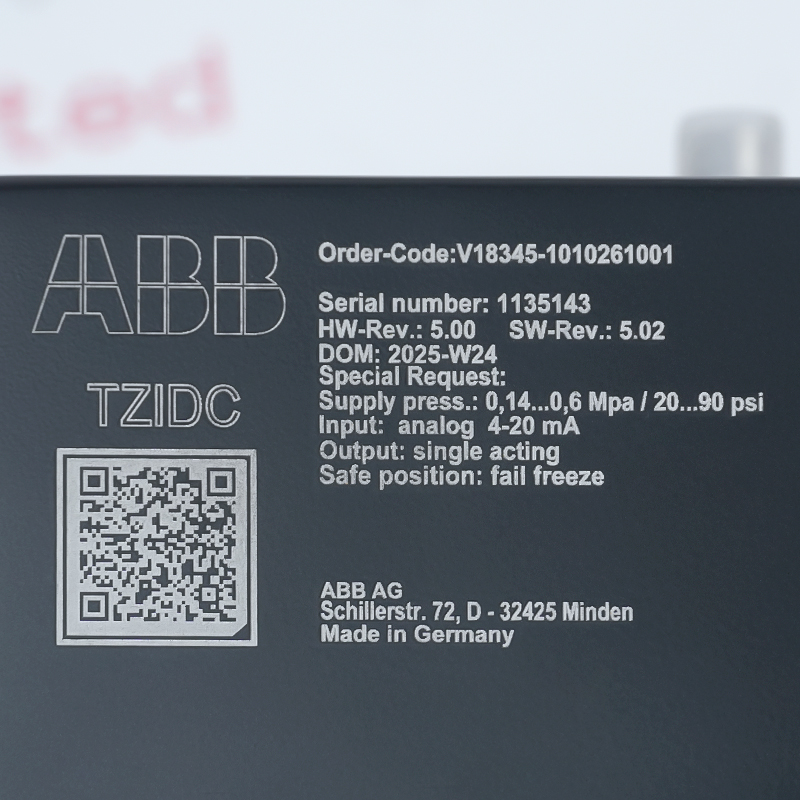

The suffix 1010261001 decodes as standard housing and mounting, 4–20 mA two-wire input, no explosion protection, single-acting fail-freeze output, M20 x 1.5 and G 1/4 connections, analog feedback, no mechanical feedback kit and standard design.
Confirm linear or rotary actuator geometry, travel, action direction, mounting hardware, G 1/4 tubing, clean instrument-air supply and the documented 1.4 to 6 bar pressure range.
After mounting and wiring, run the approved adaptation procedure. Verify end positions, direction, stable control, fail-freeze response, analog feedback, air leakage and the affected control loop.
