Features:
- Module Type is AC Power Supply Module for the documented 1768-PA3 execution.
- Input Power is 85…265V ac; 108…132V dc and must match the supplied unit.
- Connector allocation, paired assemblies and configuration data must be preserved during replacement.

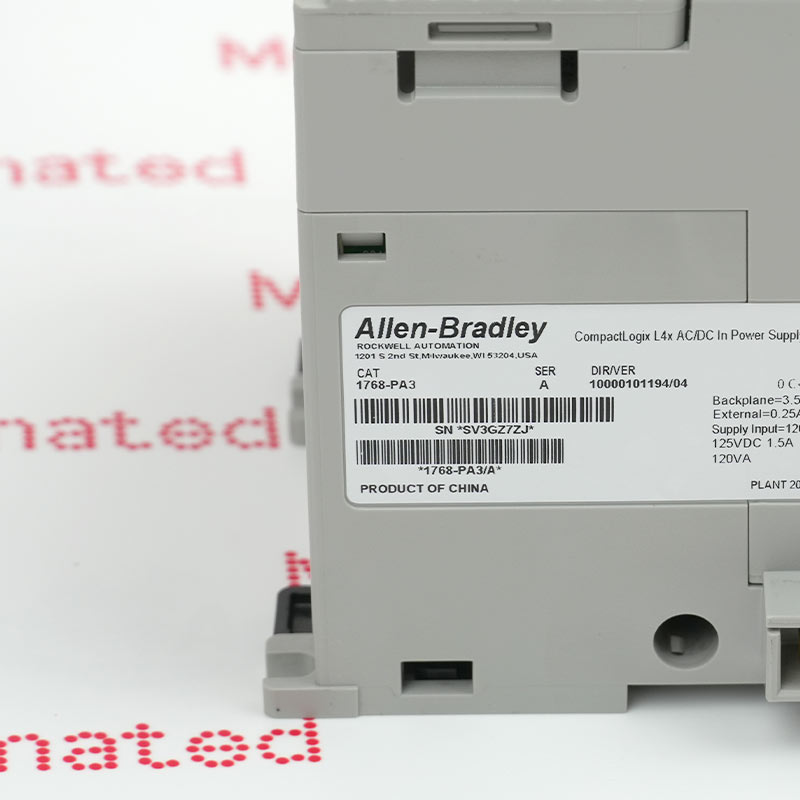

1768-PA3 is an Allen-Bradley CompactLogix Power Supply Module selected by its complete catalog identity and documented equipment role. Correct selection depends on the installed hardware execution, connected assemblies and approved CompactLogix configuration rather than appearance alone.
Before installing 1768-PA3, record the original nameplate, slot or mounting position, terminal or connector allocation, paired assemblies and relevant settings. Compare the supplied unit with approved documentation, preserve required configuration data and complete controlled diagnostics and functional checks before return to service.
The 1768-PA3 Allen-Bradley CompactLogix Power Supply Module is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
Allen-Bradley 1768-PA3 documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
1768-PA3 performs the documented compactlogix power supply module role within the CompactLogix platform. Module Type is AC Power Supply Module; Input Power is 85…265V ac; 108…132V dc; Input Frequency Range is 47…63 Hz (85…265V ac)
Replacement of 1768-PA3 requires a verified match to the receiving CompactLogix hardware, controller revision, connected assemblies and configuration record. Preserve the installed slot, connectors and required settings before removal, then verify every affected function after installation.
After installing 1768-PA3, confirm power, communication, I/O or motion interfaces as applicable; review controller diagnostics; restore approved configuration data; and complete the documented functional test before production release.
