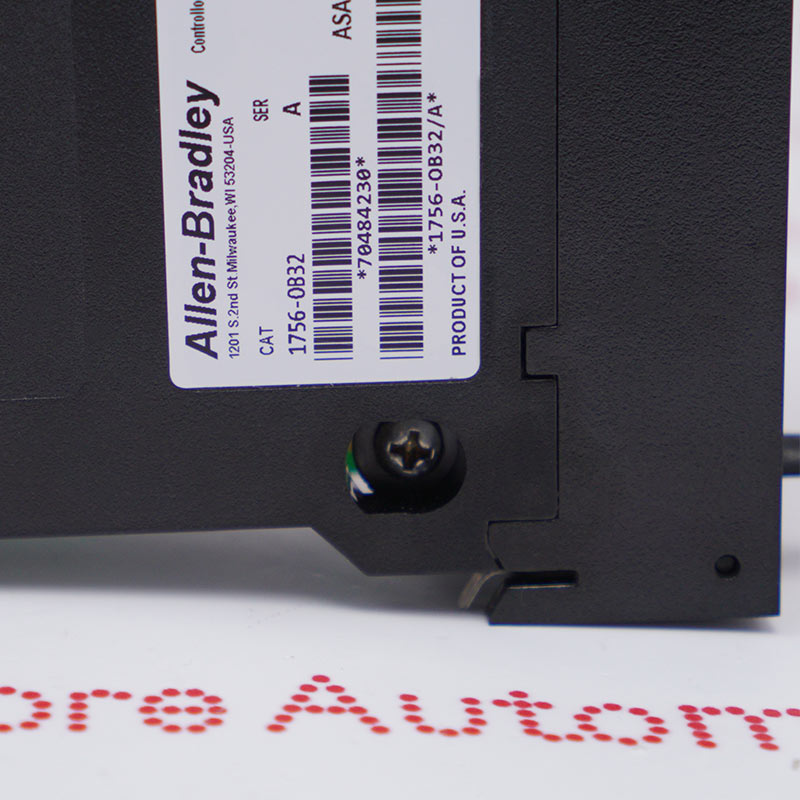

      Allen-Bradley 1756-OB32
      Allen-Bradley 1756-OB32
      Allen-Bradley 1756-OB32
      Allen-Bradley 1756-OB32
      Allen-Bradley 1756-OB32
      Allen-Bradley 1756-OB32
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote

      1756-OB32

      Discrete output module
      In Stock

      Product Information:

      Discrete output module

      Voltage category

      32 channels with 2 groups

      8 channels each

      Warranty Policy
      We provide 1 year warranty for all remaining parts.
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      Return Notice
      The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
      In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
      Shiping Mode
      Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
      Parts Availability
      Moore automated offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
      Expand All
      Collapse all

      Technical specifications for 1756-OB32

      • Manufacturer:
        Allen-Bradley
      • Product Category:
        PLC System
      • Spare Part Number:
        1756OB32
      • Estimated shipping dimensions:
        23.3x18.2x5.3cm
      • Weight:
        0.35 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Product Line:
        ControlLogix
      • Product Type:
        DC Output Module
      • Outputs per Module:
        32-Point
      • Voltage:
        12-24 Volts DC Source
      • Operating Voltage Range:
        10-31.2 Volts DC
      • Current per point:
        0.5 A @ 50 °C (122 °F) linear derating 0.35 A @ 60 °C (140 °F)
      • Current per module:
        16 A @ 50 °C (122 °F) linear derating 10 A @ 60 °C (140 °F)
      • Power Dissipation (Max):
        4.8 Watts at 60 degrees Celsius
      • Isolation Voltage:
        50 Volts Continuous
      • Stock:
        30
      Ask for Quote

      Ask our team:

      Related Products

      Browsing history

      FAQ

      View All Faqs
      • What is this module?
        A 1756‑OB32 is a 32‑point 24V DC digital output module for ControlLogix.
      • What is its main function?
        Controls 32 field actuators (e.g., relays, indicators, solenoid valves) from the PLC.
      • What are its key features?
        Voltage:12-24 Volts DC Source
      • How is it configured?
        Configured in Studio 5000 under the I/O configuration of the ControlLogix chassis.
      • What if an output point is not switching?
        Check field wiring and load, verify the LED status, ensure the output is enabled in the program, and check for diagnostic faults.
