Features:
- Panelview Plus 7 Performance Terminal
- Performance terminal from Allen Bradley's Panelview Plus 7 series, designed for efficient human-machine interaction
- Featuring a 10.4-inch TFT color display, this unit provides a clear resolution of 800 x 600 VGA with 18-bit color graphics

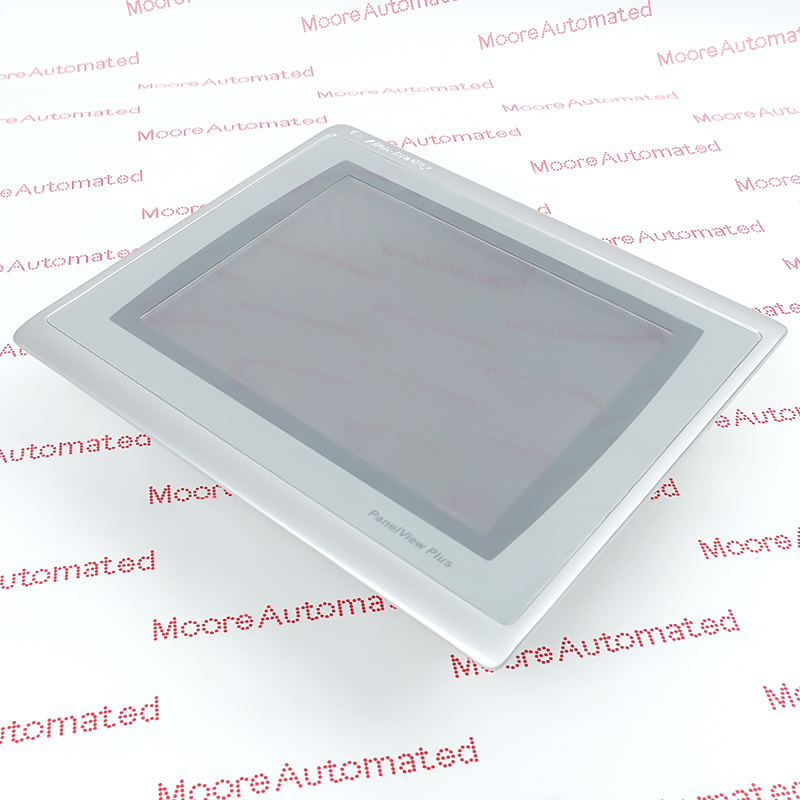

The Allen Bradley 2711P-T10C22D9P is a high-performance terminal in the Panelview Plus 7 series, designed to enhance the interactive experience in industrial applications. It features a 10.4-inch TFT color display with a resolution of 800 x 600 VGA, delivering crisp and vivid visuals. This screen is ideal for applications requiring clear visuals, ensuring data is presented clearly and legibly.

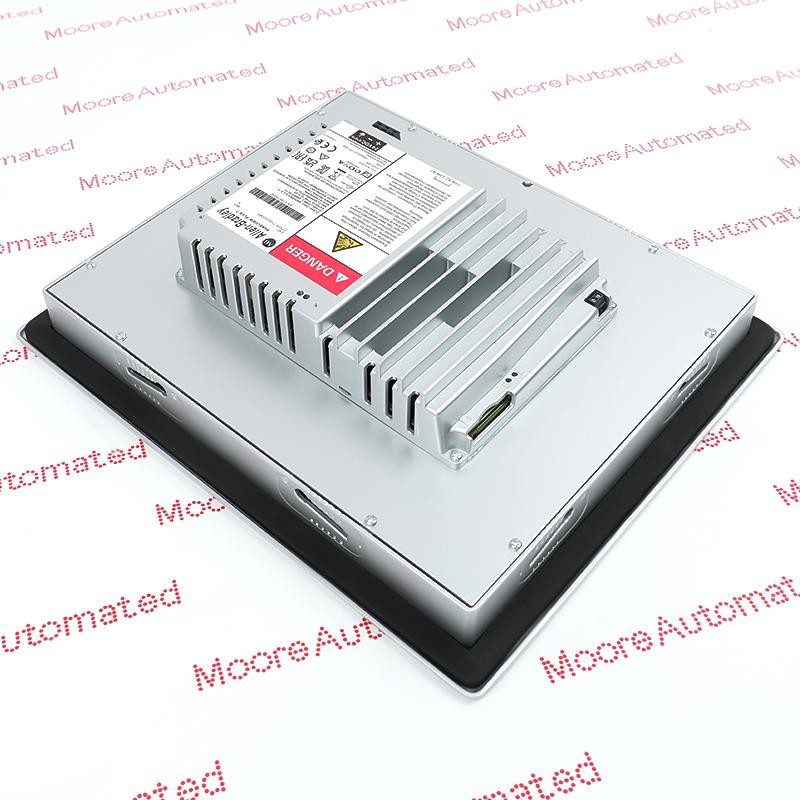

For connectivity, the 2711P-T10C22D9P is equipped with multiple communication ports. It features three USB ports, one RS-232 port, and one Ethernet port, providing various options for connecting to other devices and networks. This makes it easier to integrate into different systems and communicate with various control systems.
The 2711P-T10C22D9P Allen-Bradley Operator Terminal Panel Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 2711P-T10C22D9P Operator Terminal Panel Module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
If you are replacing spare parts for this model, please pay special attention to recent product line updates from Rockwell Automation (A-Series/B-Series hardware differences):

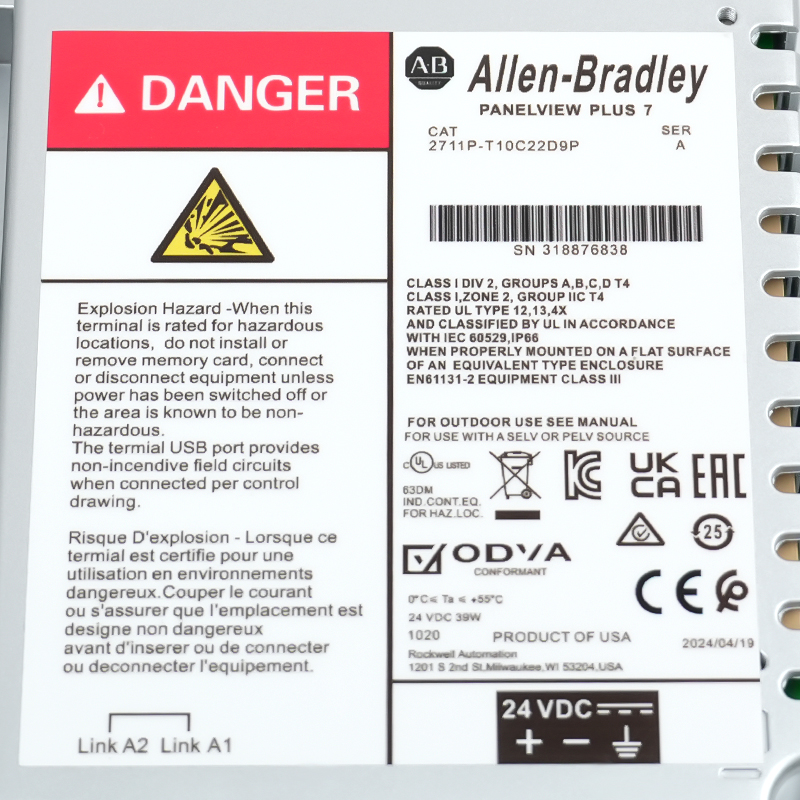

Major Hardware Upgrades for the B-Series: In recent years, Rockwell Automation has made significant upgrades to the hardware architecture of the PanelView Plus 7 Performance (B-Series hardware versions have been released and are usually indicated on the side nameplate).
Technical Changes for the B-Series: The B-Series operating system has been fully unified to Windows 10 IoT Core, and the internal system storage chips (flash memory and RAM) have been upgraded.
Firmware and Software Compatibility: If you purchased the latest B-Series hardware, the minimum required software version is typically FactoryTalk View ME V12 or higher (older .mer executables cannot be directly downloaded to B-Series hardware; you will need to use the Application Manager to upgrade the firmware and software version or recompile).
As a high-performance terminal, it boasts numerous privileges not available in the standard version: Built-in DLR dual-port ring network technology:
Without an additional switch, this HMI can directly connect to the factory's full device-level ring network (DLR) security ring network. Even if the right-side network cable breaks unexpectedly, the signal will automatically return from the left, ensuring uninterrupted screen control.
Deep integration with FactoryTalk View ME: Fully supports runtime direct access to extended tag attributes and alarm interlocks (FactoryTalk alarms and events) of the underlying Logix controller (such as ControlLogix 5580), significantly reducing the workload of manually copying variables.
Remote secure access (VNC and Web server): A built-in VNC server allows authorized factory managers or maintenance engineers to remotely view and control the HMI's live screen via mobile phone, iPad, or office computer, making it ideal for remote troubleshooting.
