Features:
- M1 controller identity: ME203/CN belongs to the documented M1 controller family.
- Configuration: ME203/Cxx CPU-module family, 33 MHz processor class and 8 MB DRAM identified in Bachmann certification documentation.
- Verification focus: Confirm the complete ME203/CN marking, processor/memory version, connector layout, and M1 rack configuration before replacement.

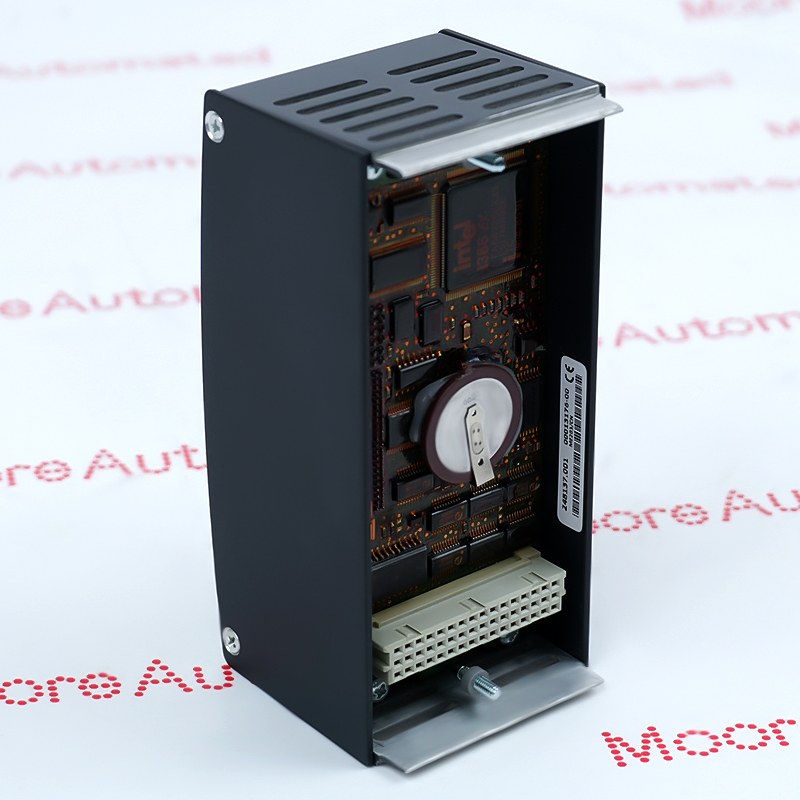

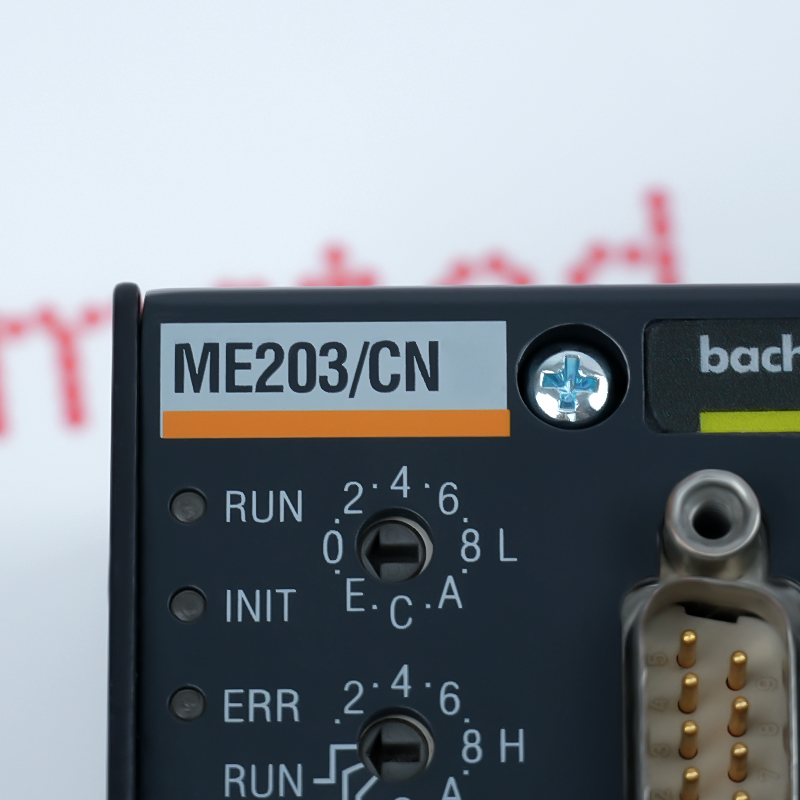

Bachmann ME203/CN is 33 mhz cpu module with can interface designed for Bachmann M1 automation controllers. According to the manufacturer documentation, it executes controller tasks and provides CAN/CANopen communication within the M1 platform. The ordering code identifies the complete ME203/CN marking, processor/memory version, connector layout, and M1 rack configuration, so the complete nameplate information should be reviewed whenever the item is being selected for a maintenance replacement, a system extension, or a spare-parts holding.
The technical content for ME203/CN is limited to the manufacturer product page and the cited official datasheet or manual. Final compatibility depends on the M1 system generation, required CAN interface, project software, and module firmware.
The Bachmann ME203/CN 33 MHz CPU module with CAN interface is supported by Moore Automated for verified industrial replacement and spare-part requirements.
Bachmann ME203/CN 33 MHz CPU module with CAN interface manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Compatibility Checks
Confirm the M1 system generation, required CAN interface, project software, and module firmware. The complete ME203/CN marking and nameplate data should be compared with the installed item before a purchase order is released.
Installation Planning
Follow the manufacturer instructions and verify rack position, backplane power, CAN wiring, firmware level, and application backup. Accessories, connectors, cables, sockets, or terminal blocks must be ordered separately unless the quotation lists them.
Configuration Reference
ME203/Cxx CPU-module family, 33 MHz processor class and 8 MB DRAM identified in Bachmann certification documentation. Use the official ordering information to confirm every suffix, revision, and option that applies to the required unit.
