Features:

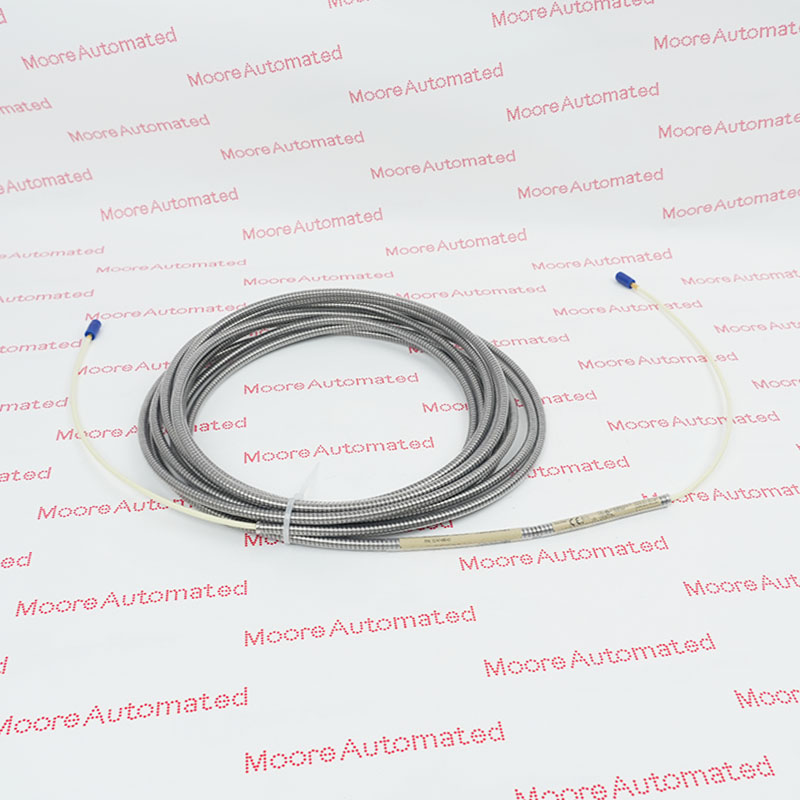

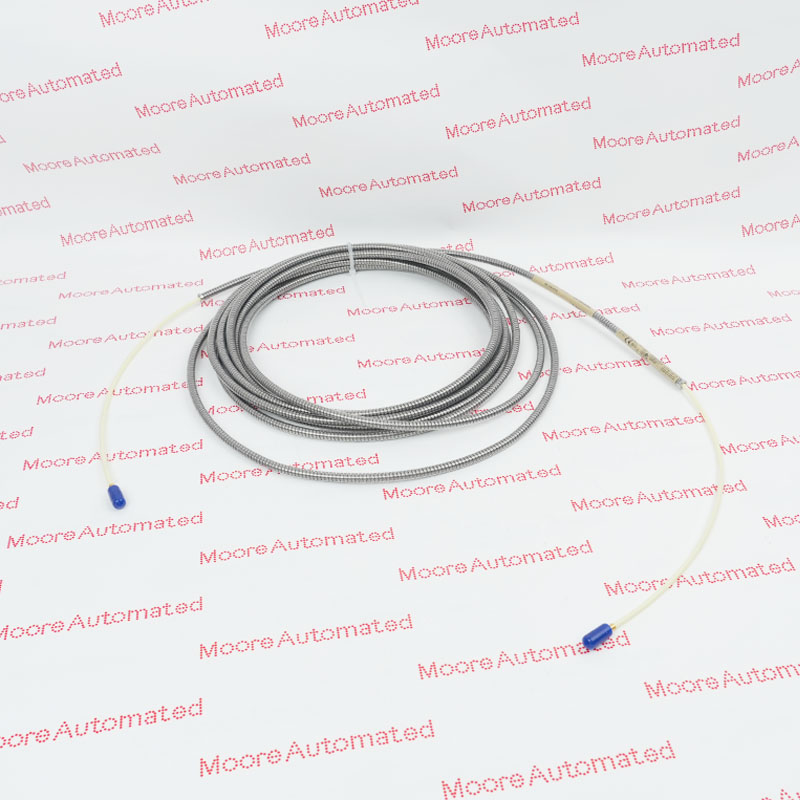

- The 21747 family is the manufacturer-documented extension cable for 7200 5 mm and 8 mm proximity transducer systems.
- Length code 075 represents a 7.5 m electrical cable, which must be added to the probe lead when checking total system length.
- Armor option 01 adds mechanical protection while preserving the connector and electrical identity required by the legacy loop.

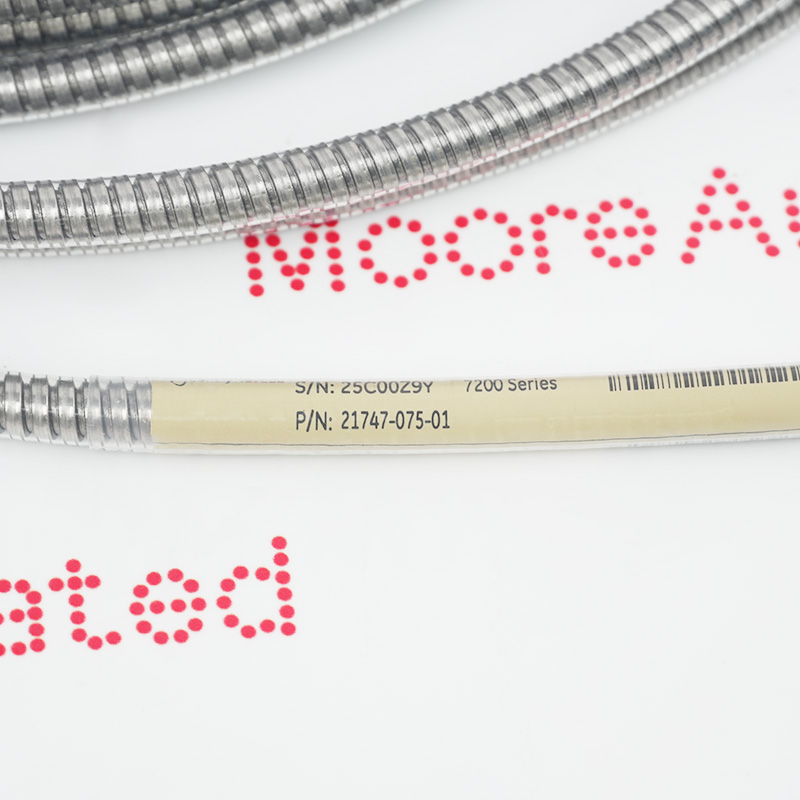

Bently Nevada identifies 21747 as the extension-cable family for 7200 5 mm and 8 mm proximity transducer systems. The first three-digit option is the cable’s electrical length and the final two-digit option identifies armor. In 21747-075-01, code 075 denotes a 7.5 m cable and option 01 specifies armor. The extension cable joins the probe’s integral coaxial lead to the appropriate 18745 Proximitor and is part of the system calibration. The probe and extension-cable electrical lengths must add to the five- or nine-metre Proximitor length. A 7.5 m cable therefore requires the installed probe length and electronics to be checked before use. Because this is a legacy system, connector condition, armor, electrical length and the complete loop numbers should be verified from labels and photographs.
Manufacturer reference: Bently Nevada 7200 Proximity Transducer Systems, 5 mm and 8 mm Technical/Ordering Information.
Moore Automated supports exact-item verification and spare-part enquiries for the Bently Nevada 21747-075-01.
Bently Nevada 21747-075-01 Armored extension cable manual (Datasheet), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Record the probe length and 18745 Proximitor option, then add the 7.5 m cable length to confirm a five- or nine-metre electrical system. Do not select by connector appearance alone.
Protect the two coaxial connector interfaces, support the armor and avoid crushing or tight bends. Route the cable in accordance with the site’s mechanical and signal-separation requirements.
The extension cable is part of the calibrated loop. A changed cable length requires the probe lead, Proximitor length and monitor scaling to be reviewed together before commissioning.
