Features:
- Full order-code identity combines a 3/8-24 UNF standard-mount case, zero unthreaded length and a 2.0 in overall case.
- The 1.0 m standard-cable probe terminates in a miniature coaxial ClickLoc connector and does not use a separate extension cable.
- Approval option 05 identifies the manufacturer-documented CSA, ATEX and IECEx version for properly engineered installations.
Bently Nevada identifies 330101-00-20-10-02-05 as a standard-mount 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case and no lead armor. The 00 and 20 positions specify zero unthreaded length and a 2.0 in case. Code 10 gives a 1.0 m probe-only system length, while option 02 supplies the standard cable with a miniature coaxial ClickLoc connector. Approval suffix 05 covers the documented CSA, ATEX and IECEx configuration. In a correctly matched transducer system, the probe supports non-contact static position and dynamic vibration measurements. Selection must preserve the full order code, target material, thread engagement, probe gap and monitoring-channel configuration; matching only the 330101 family number is insufficient.
Manufacturer reference: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet 141194 Rev. AM.
Moore Automated supports exact-item verification and spare-part enquiries for the Bently Nevada 330101-00-20-10-02-05.

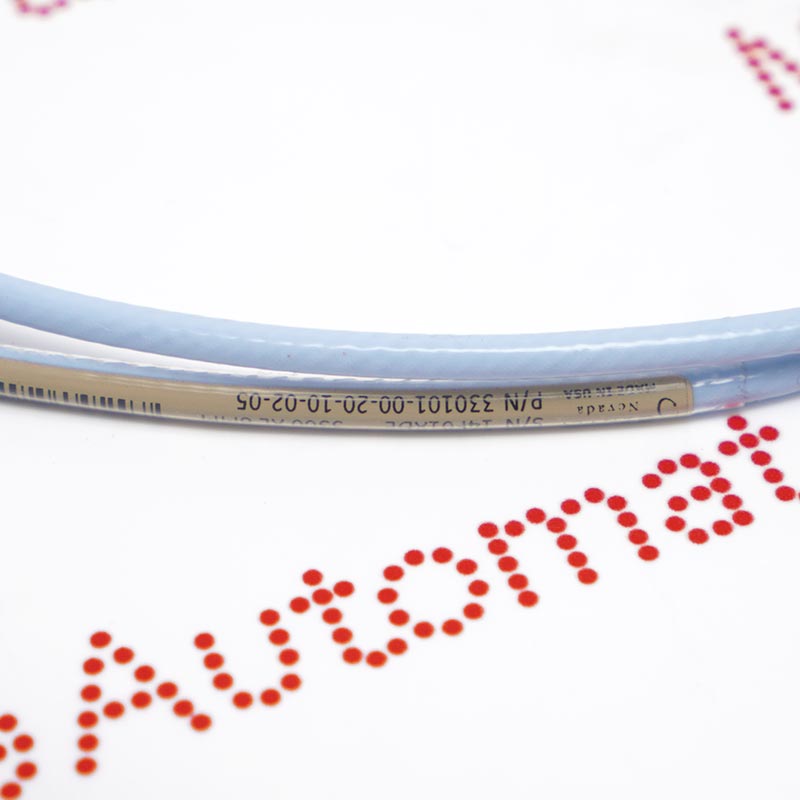

Bently Nevada 330101-00-20-10-02-05 8 mm proximity probe manual (Datasheet), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The five option blocks identify the mechanical and electrical build. For this item they define zero unthreaded length, a 2.0 in case, one-metre standard cable with ClickLoc connector, and the 05 approval package.
Keep the 3/8-24 engagement within the stated limit, route the standard cable above its minimum bend radius, and set the operating gap while observing the actual monitor voltage. Target material and nearby probe spacing affect the response.
Treat probe, cable length and Proximitor Sensor as one calibrated system. This one-metre probe-only configuration must be paired with the correct one-metre electronics and the monitor channel must use the documented scale factor.
