Features:
- The NSv probe is designed for restricted installation areas where standard 5 mm or 8 mm proximity systems may not fit.
- Supports applications such as radial vibration measurement on shafts smaller than 51 mm (2 in) and axial position measurement on small flat targets.
- Supports radial vibration, radial position, axial position, tachometer, zero-speed, and Keyphasor measurements when integrated into the complete NSv transducer system.

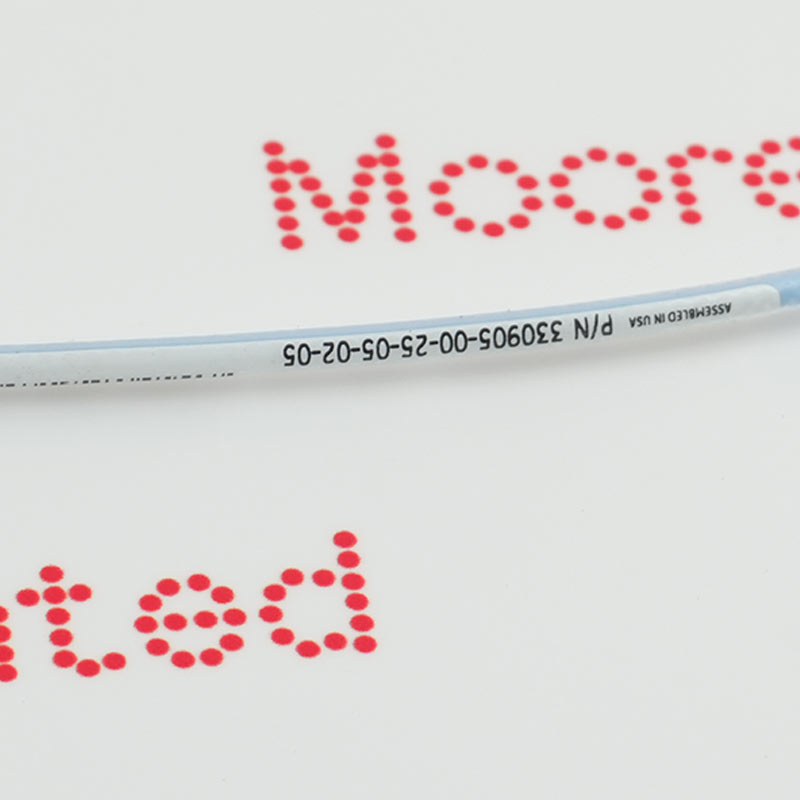

The Bently Nevada 330905-00-25-05-02-05 is a 3300 NSv proximity probe and a component of the 3300 XL NSv proximity transducer system. This complete system—comprising the 3300 NSv probe, 3300 NSv extension cable, and 3300 XL NSv Proximitor sensor—is designed for the non-contact measurement of shaft displacement in machinery utilizing fluid-film bearings.
This specific probe model features M10 × 1 metric mounting threads, a 250 mm case length, and a 0.5 m probe length; it is also equipped with a ClickLoc connector and a multi-agency approval configuration. The 3300 XL NSv system is used not only for radial vibration and radial position measurements but also for axial/thrust position, speed, and zero-speed measurements, as well as phase reference/Keyphasor signal acquisition.
The 330905-00-25-05-02-05 Bently Nevada 3300 NSv Proximity Probes may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330905-00-25-05-02-05 3300 NSv Proximity Probes Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL NSv system provides non-contact eddy-current measurement for radial vibration, radial position, axial/thrust position, tachometer, zero-speed, and Keyphasor applications. The manufacturer specifically positions the system for fluid-film bearing machines with small shafts or reduced side-view clearance, rather than as a general replacement for every standard 3300 XL 5 mm or 8 mm installation.
Before replacement or installation, verify the available mechanical clearance, target dimensions, probe mounting arrangement, and the complete probe/extension-cable/Proximitor-Sensor combination against the OEM requirements. The NSv system is specifically valuable where counterbore, side-view, or rear-view restrictions prevent the practical installation of standard 3300 or 3300 XL 5 mm/8 mm systems.
Bently Nevada states that the 3300 XL NSv Transducer System was designed to replace applicable 3300 RAM Transducer Systems and 3000-series or 7000-series 190 Transducer Systems. For an existing installation, the exact replacement configuration should therefore be checked against the original monitoring system and mechanical arrangement before ordering.
