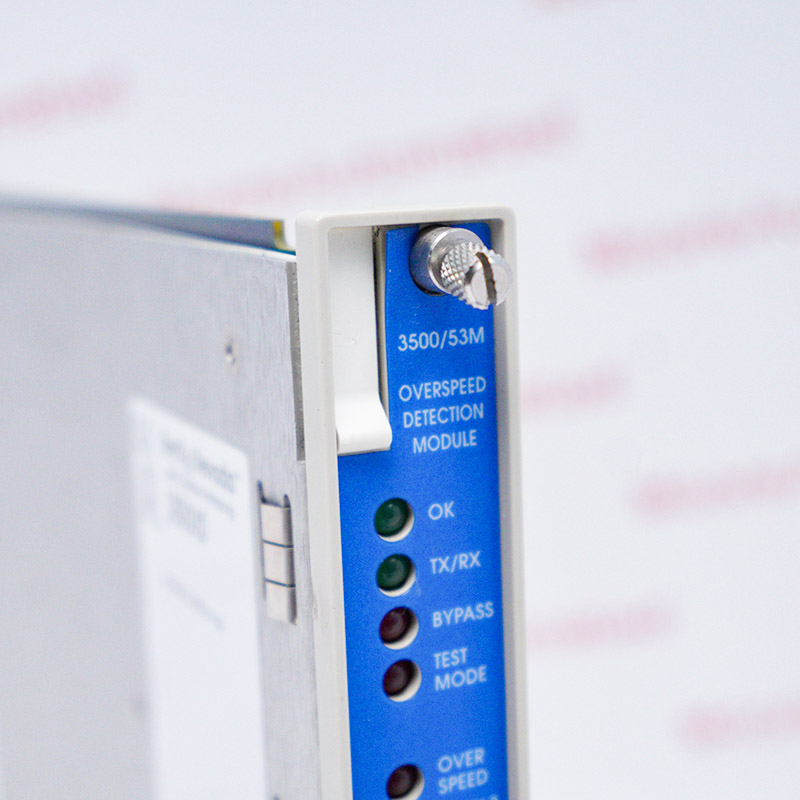

3500/53M 286566-01

Overspeed Detection Module
In Stock

Product Information:

3500/53M Electronic Overspeed Detection System

Overspeed Detection Module

3500/53M Overspeed Detection Module

3500 Series Machinery Detection System

Expand All
Collapse all

Technical specifications for 3500/53M 286566-01

  • Manufacturer:
    Bently Nevada
  • Product Category:
    TSI System
  • Spare Part Number:
    286566-01
  • Estimated shipping dimensions:
    24.1 x 2.4 x 24.2 cm
  • Weight:
    0.82 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
  • Power Consumption:
    8.0 watts, typical
  • Transducer Power Supply:
    -24 Vdc, 40 mA maximum
  • Relays Type:
    Single-pole, double-throw (SPDT) relays
  • Arc Suppressers:
    250 Vrms, installed as standard
  • Operating Temperature:
    -30°C to +65°C
  • Storage Temperature:
    -40°C to +85°C
  • Stock:
    50

Ask our team:

  • How does the 3500/53M 286566-01 achieve deterministic overspeed determination under high-risk operating conditions?
    The 3500/53M 286566-01 achieves sub-millisecond overspeed determination logic through high-speed sampling and hardware-level comparison calculations of the speed pulse signal. This architecture avoids the uncertainties of software scan cycles and communication latency, ensuring reliable and repeatable identification of overspeed events even under extreme acceleration scenarios.
  • What speed signal input formats and measurement mechanisms does the 3500/53M 286566-01 support?
    The 3500/53M 286566-01 can directly receive frequency signals from magnetic pickup speed sensors or eddy current probes, supporting multi-gear/multi-events-per-revolution configurations to achieve high-resolution speed calculations, suitable for full-condition coverage from low-speed turning gears to high-speed operation
  • How does the 3500/53M 286566-01 implement redundancy and voting logic in the overspeed protection system?
    The 3500/53M 286566-01 can be combined with other similar modules in the 3500 rack to build a 2oo2 (two-out-of-two) or 2oo3 (three-out-of-two) voting structure. This design significantly reduces the probability of spurious trips while meeting the redundancy requirements of high availability and high Security Integrity Level (SIL) systems.
  • What is the engineering significance of the response time characteristics of the 3500/53M 286566-01 for equipment safety?
    The 3500/53M 286566-01 has an extremely short overspeed identification and output response time, completing a trip action in a very short time when the speed exceeds the set threshold. This deterministic fast response mechanism is crucial for preventing rotor disintegration, shaft instability, and catastrophic mechanical damage.
  • Why is the 3500/53M 286566-01 considered an irreplaceable overspeed protection component in critical rotating equipment?
    The 3500/53M 286566-01 constructs a highly reliable ultimate protection mechanism through hardware-level overspeed judgment, redundant voting structure, fast relay output, and API 670 compliant design. In any high-energy rotating equipment, it is not only part of the protection system, but also a key technical node to ensure personnel safety, asset integrity and continuous operation of the equipment.
