Features:
- Product Type: Armored interconnect cable
- Part Number: 84661-30
- Nominal Length: 30 ft

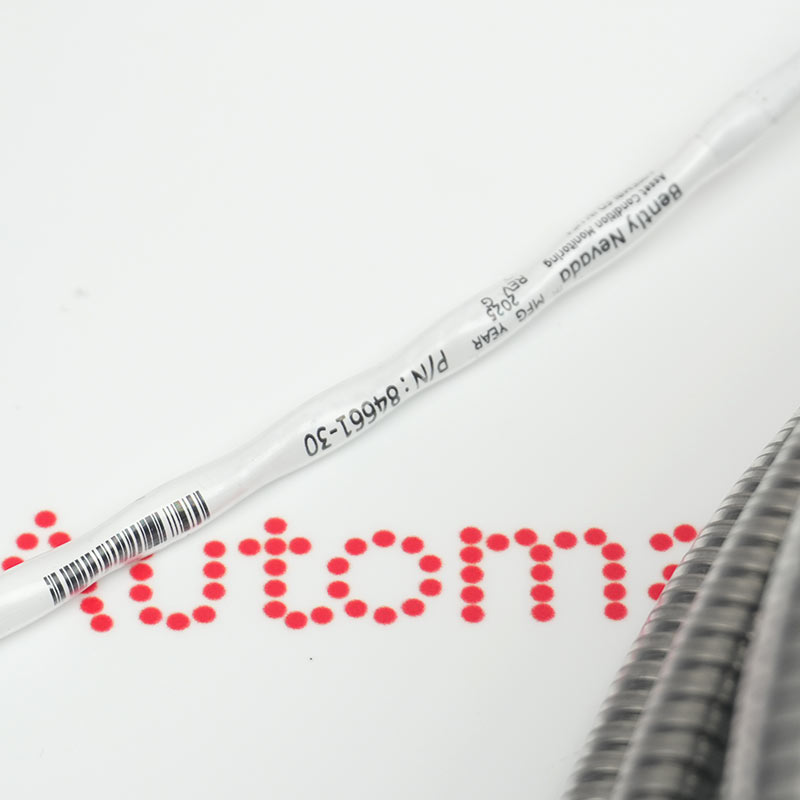

Bently Nevada 84661-30 is a 30 ft armored interconnect cable with shielded 22 AWG conductors for compatible machinery-monitoring transducers and monitors. The documented selection record identifies Product Type: Armored interconnect cable; Part Number: 84661-30; Nominal Length: 30 ft.
It has a moisture-resistant female connector at the transducer end and terminal lugs at the monitor end; verify route and end connections. Two-conductor twisted shielded 22 AWG cable with armor. Female transducer connector at one end and terminal lugs at the other. Use the supplied nameplate and current project documentation as the final order-stage reference.
The 84661-30 may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
84661-30 documentation and reference links.
Important Notice: Confirm the complete catalog identity, hardware revision, receiving-system configuration and required document revision before replacement.
Cable Build
Two-conductor twisted shielded 22 AWG cable with armor.
Apply this check to the supplied 84661-30 and the current project record before commissioning.
End Connections
Female transducer connector at one end and terminal lugs at the other.
Apply this check to the supplied 84661-30 and the current project record before commissioning.
Route Check
Confirm 30 ft length, bend route and termination before ordering.
Apply this check to the supplied 84661-30 and the current project record before commissioning.
