Features:
- Number of Output Channels: Provides 1 to 8 selectable, single–ended for the verified control, monitoring or diagnostic duties assigned to IC694ALG392-FG.
- Output Current Range: Provides 4 to 20 mA and 0 to 20 mA for the verified control, monitoring or diagnostic duties assigned to IC694ALG392-FG.
- User Supply Voltage (nominal): Supports the documented +24 VDC rating when installed in the approved PACSystems RX3i configuration.

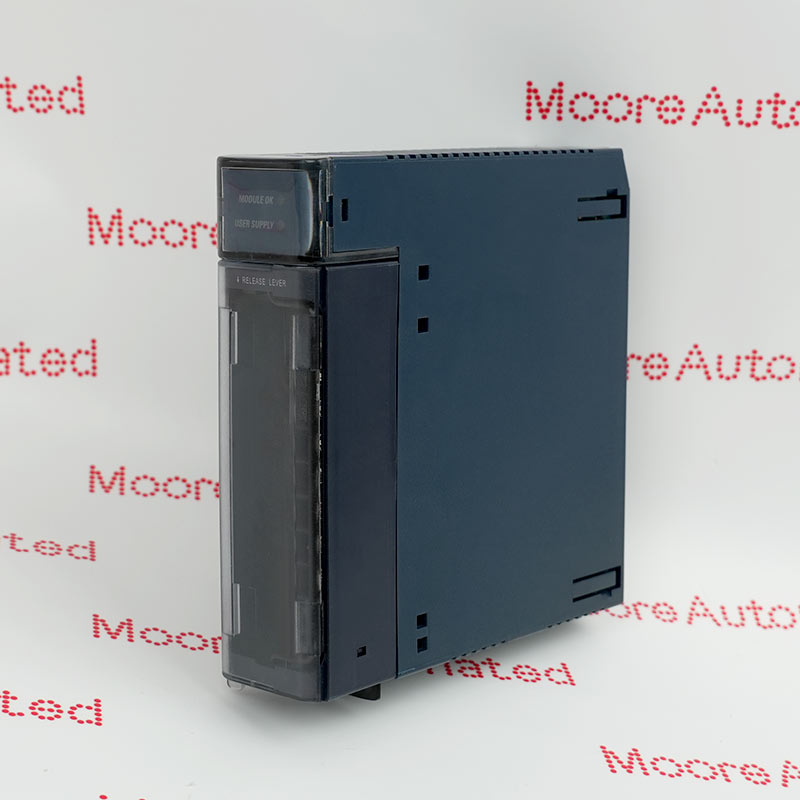

The IC694ALG392-FG General Electric analog output module plays a defined role in industrial automation and converts documented controller commands into the assigned field-output actions within the PACSystems RX3i platform. Its documented execution helps the control system maintain dependable operation while reducing the risk of mismatched connectors, channel assignments, ratings and hardware revisions during maintenance.
Before installing IC694ALG392-FG, compare the complete product label, terminal or connector arrangement, paired assemblies, firmware or logic requirements and approved project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The IC694ALG392-FG General Electric Analog Output Module is identified as Active / Available from OEM. Current availability, revision and supplied scope are confirmed in the written quotation.
General Electric IC694ALG392-FG documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
Verify that the supplied item is marked IC694ALG392-FG and that its analog output module form, connectors and revision agree with the approved PACSystems RX3i receiving record.
For IC694ALG392-FG, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact IC694ALG392-FG record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
