Features:
- Eddy current proximity probe for the documented Bently Nevada 3300 proximity transducer system.
- Measurement Range: 0–2.0 mm (0–80 mils).
- Sensitivity: 200 mV/mil (7.87 mV/µm).

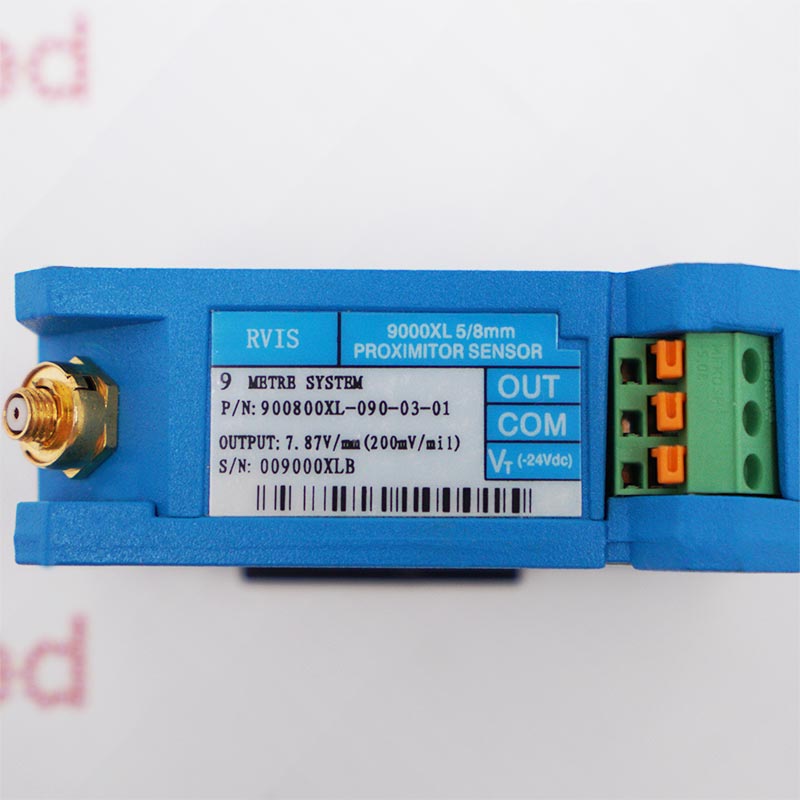

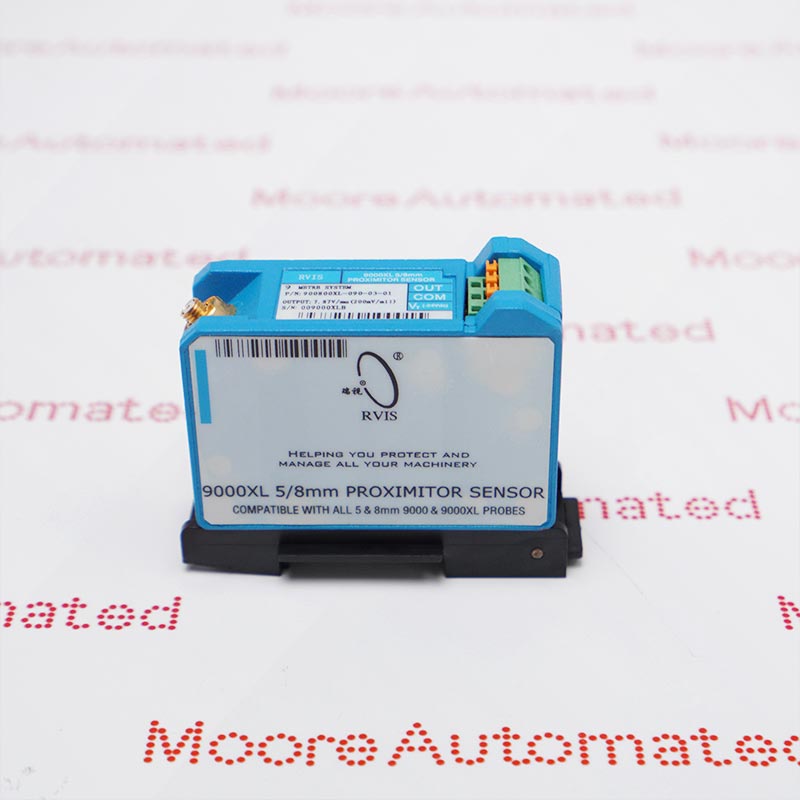

900800XL-090-03-01 belongs to the Bently Nevada 3300 proximity transducer system and performs the documented eddy current proximity probe role in the Bently Nevada proximity measurement system. The retained technical evidence records Measurement Range: 0–2.0 mm (0–80 mils); Sensitivity: 200 mV/mil (7.87 mV/µm); Frequency Response: 0.1 Hz – 10 kHz (±3 dB). The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Bently Nevada 3300 proximity transducer system receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The 900800XL-090-03-01 Eddy current proximity probe is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
900800XL-090-03-01 Bently Nevada product documentation and selection resources.
Important Notice: The uploaded PDF documents the listed model or its identified Bently Nevada product family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Probe Mounting: 900800XL-090-03-01 performs the eddy current proximity probe function within the Bently Nevada 3300 proximity transducer system. The retained documentation identifies measurement range as 0–2.0 mm (0–80 mils); apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
System Alignment: approve 900800XL-090-03-01 only for the documented Bently Nevada proximity measurement system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Validation Steps: isolate the equipment, remove stored energy and inspect the receiving hardware before installing 900800XL-090-03-01.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
