      Bently Nevada 330130-040-02-CN
      Bently Nevada 330130-040-02-CN
      Bently Nevada 330130-040-02-CN
      Bently Nevada 330130-040-02-CN
      Bently Nevada 330130-040-02-CN
      Bently Nevada 330130-040-02-CN

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock
      Ships by Monday, September 21
      Fast Shipping Available
      3300 XL Standard Extension Cable

      330130-040-02-CN

      Spare Part Number

      PN330130-040-02-CN

      Product Information:

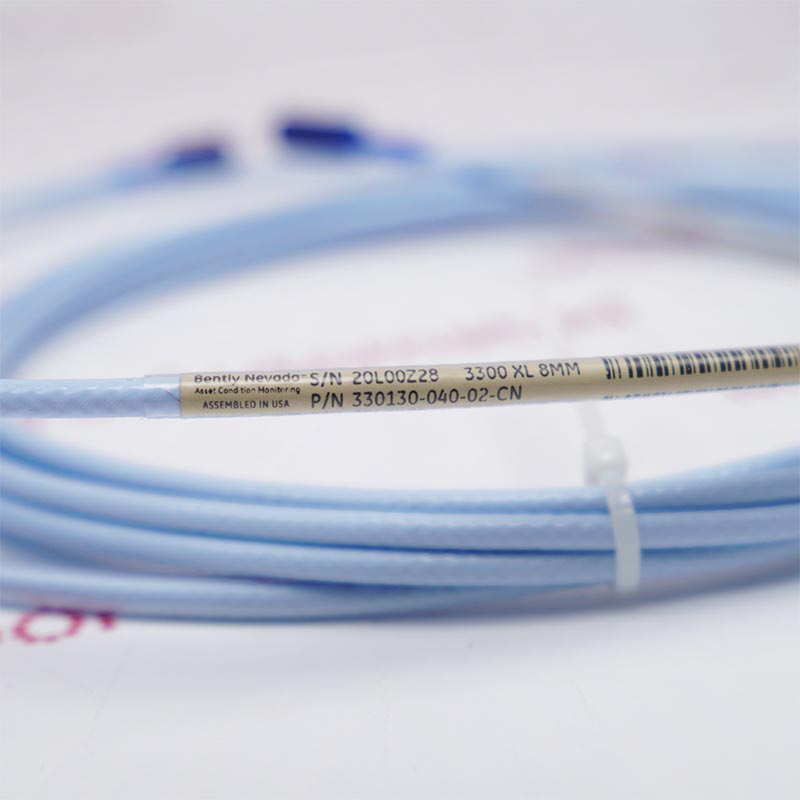

      The Bently Nevada 330130-040-02-CN is a standard 3300 XL 8mm eddy current sensor extension cable, customized and certified for the Chinese market. This 4.0-meter cable (Option 040) features a ClickLoc™ gold-plated coaxial connector (Option 02) and a stainless steel flexible armor layer, offering excellent physical specifications and system compatibility.

      The Bently Nevada 330130-040-02-CN can also be used as an intermediate connector, designed to connect a 1.0-meter 3300 XL 8mm probe and preamplifier, creating an industry-standard 5.0-meter total length eddy current measurement system. Its high-strength armor layer provides 100% physical shock resistance, effectively preventing field impacts such as trampling, pulling, and corrosion from high-temperature turbine oil.

      The Bently Nevada 330130-040-02-CN is responsible for transmitting the micron-level radial vibration (X/Y axis), axial thrust displacement, and high-frequency velocity/critical phase signals acquired by the probe to the preamplifier without loss, thus playing a crucial role in preventing serious accidents such as bearing failure and dynamic/static friction.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      330130-040-02-CN

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Bently Nevada
      • Product Category:
        Sensor
      • Spare Part Number:
        330130-040-02-CN
      • Estimated shipping dimensions:
        20.5 x 22.5 x 3 cm
      • Weight:
        0.24 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        USA
      • Place of shipment:
        Xiamen, Fujian, China
      • Cable Length:
        4.0 meters (11.5 feet)
      • Connector Protector and Cable:
        Standard cable with connector protector
      • Agency Approval:
        Approvals country specific
      • DC Resistance:
        0.88 ± 0.13 Ω
      • Extension Cable Capacitance:
        69.9 pF/m (21.3 pF/ft)
      • Frequency Response:
        (0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring
      • Recommended Gap Setting for Radial Vibration:
        -9 Vdc [approximately 1.27 mm (50 mils)]
      • Operating and Storage Temperature:
        -52°C to +177°C (-62°F to +350°F)
      • Probe Relative Humidity:
        Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity in accordance with IEC standard 68 2 3 for up to 56 days
      • Product Type:
        Extension Cable
      • Category Series:
        3300 XL series
      • Series:
        3300 System
      • Stock Availability:
        100
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      33013004002CN 330130 040 02 CN 330I30-040-02-CN 33O13O-O4O-O2-CN 33OI3O-O4O-O2-CN 330130-0A0-02-CN 330130-040-02-00 330130-040-02-05 330130-040-02-BR 330130-040-02-KR 330130-040-02-RU 330130-040-02-US 33O13O-O4O-O2-OO

      Information

      Overview Manuals Basic Info Ordering Considerations Field Maintenance Tip

      Features:

      • 3300 XL Standard Extension Cable
      • 3300 XL 8 mm Proximity Transducer System
      • The 3300 XL probe and extension cable also reflect improvements over previous designs
      The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

      Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

      The 330130-040-02-CN Bently Nevada 3300 XL Standard Extension Cable may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
      Bently Nevada 330130-040-02-CN 3300 XL Standard Extension Cable Manuals(Datasheets), Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
      • Model: 330130-040-02-CN
      • Warranty: One-year warranty
      • Condition: Brand new, original, in stock
      • Product Family: 3300 XL 8 mm Proximity Transducer System
      Ordering Information for Extension Cables
      3300 XL Standard Extension Cable
      330130-Axxx-Bxx-Cxx
      A: Cable Length
      030: 3.0 meters (9.8 feet)
      035: 3.5 meters (13.1 feet)
      040: 4.0 meters (11.5 feet)
      045: 4.5 meters (14.8 feet)
      060: 6.0 meters (19.7 feet)
      070: 7.0 meters (22.9 feet)
      075: 7.5 meters (24.6 feet)
      080: 8.0 meters (26.2 feet)
      085: 8.5 meters (27.9 feet)

      B: Connector Protector and Cable
      00: Standard cable
      01: Armored cable
      02: Standard cable with connector protector
      03: Armored cable with connector protector
      10: FluidLoc cable
      11: Armored FluidLoc cable
      12: FluidLoc cable with connector protector
      13: Armored FluidLoc cable with connector protector

      C: Agency Approval
      00: Not required
      05: CSA, ATEX, IECEx Approvals
      When connecting this extension cable to the proximity probe, ensure that the ClickLoc™ connector is dry and free of oil mist. It is strongly recommended to wrap the connector with silicone self-adhesive tape or cover it with an external connector sleeve to completely isolate the signal from conductive moisture or lubricating oil inside the housing.

      Manuals

      Technical notes

      The Bently Nevada 330130-040-02-CN is a 4.0-meter standard extension cable for the 3300 XL 8mm/5mm eddy current sensing system. It has an impedance of 75 Ω, a dustproof protective sheath, and is CN explosion-proof certified. This cable is suitable for harsh industrial environments ranging from -51°C to +177°C and has a tensile strength of up to 330 Newtons.
      PRODUCT & ORDER FAQS

      Questions buyers ask about 330130-040-02-CN

      • What are the main engineering functions of the 330130-040-02-CN in a high-integrity rotating machinery monitoring architecture?

        The 330130-040-02-CN is a precision extension cable assembly designed for use with compatible 3300 Series eddy current proximity probe systems. Its primary function is to maintain the calibrated electrical characteristics between the proximity probe and its associated driver or signal conditioner, enabling accurate measurements of shaft displacement, radial vibration, axial position, and rotor dynamics in critical machinery protection applications.

      • How does the 330130-040-02-CN maintain impedance-controlled signal transmission in a calibrated proximity sensor system?

        The 330130-040-02-CN employs a precision impedance-controlled coaxial cable architecture designed specifically for eddy current sensor applications. This design minimizes signal attenuation, phase distortion, and impedance discontinuities, ensuring a stable probe-driver relationship within the specified operating frequency range after calibration.

      • What connector configuration is used for the 330130-040-02-CN extension cable assembly?

        The 330130-040-02-CN uses a 02 connector configuration, providing a safe, low-noise electrical interconnect between compatible proximity probes and drive modules. This connector system is carefully designed to maintain shielding continuity, mechanical reliability, and long-term signal integrity in industrial environments.

      • How does the 330130-040-02-CN improve electromagnetic compatibility in industrial facilities with high electrical requirements?

        The 330130-040-02-CN features a shielded coaxial transmission design optimized for enhanced electromagnetic compatibility (EMC). Its structure reduces sensitivity to electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring reliable transmission of low-level proximity sensor signals even in the presence of equipment such as motors, generators, switchgear, and variable frequency drives.

      • Why is the 330130-040-02-CN considered a calibration component of a complete proximity measurement system?

        The 330130-040-02-CN is more than just a passive cable; it is a calibration element within a complete proximity sensor assembly. Its electrical length, impedance, capacitance, and shielding characteristics are carefully designed to work in conjunction with the matching probe and drive electronics, ensuring the measurement accuracy, linearity, and repeatability of the entire system.
