Sooner or later every plant with a mature Emerson DeltaV system hits the same problem. A specific I/O module, such as the KJ3222X1-BA1 referenced in your drawings, starts to show up more often in bad‑actor reports or becomes harder to source. Operations wants a simple one‑for‑one swap. Procurement wants the lowest cost. Engineering is caught in the middle, trying not to paint the plant into a corner for the next ten years.
In the field, I rarely treat a module replacement as just a spare‑parts issue. It is usually the visible symptom of a deeper lifecycle question: is this I/O family staying with us, or is it time to start moving toward Emerson’s newer Electronic Marshalling and controller platforms? Emerson’s own modernization material, along with third‑party analysis from ARC Advisory Group and others, makes it clear that I/O and controller decisions are strategic, not just tactical.
This article walks through how to think about KJ3222X1-BA1‑class replacements in an Emerson DeltaV environment using only what is backed by the provided research. Instead of guessing specific part numbers, I will focus on practical, system‑level options and how to decide which path fits your plant.
Before diving into hardware options, it is worth confirming whether you should remain on DeltaV at all. A control.com discussion about DCS selection for a formaldehyde and resin plant frames this well: the core requirement was ISA‑88‑compliant batch control, not a particular brand. Modern platforms from major vendors support baseline field protocols such as HART and Profibus, so protocol checklists do not decide the winner.
In that discussion, Emerson DeltaV was already installed and familiar to operators and maintenance. The recommendation was to stay with DeltaV to leverage ISA‑88 compliance and in‑house experience, and to consider Rockwell’s batch system mainly when building a lower‑cost new plant. That aligns with what I see on site. If you already run DeltaV and your main pain point is a single I/O module family like the KJ3222X1-BA1, replacing the entire DCS platform is usually overkill.
Emerson and ARC Advisory Group make a similar point in their white paper on flexible control system migration. They describe replacing aging control hardware with modern Emerson platforms using flexible, phased approaches that reuse existing field wiring, cabinets, and marshalling wherever practical. The emphasis is on controlled, low‑risk modernization, not “rip and replace because one module is obsolete.â€
So the working assumption for a KJ3222X1-BA1 situation is simple. You are staying on DeltaV, and the real decision is which DeltaV‑compatible path you take for that I/O and the surrounding architecture.
Before you can choose any replacement, you need to be very clear about what you already have. The research set includes an Emerson overview of DeltaV controllers and I/O that is useful as a map. It describes several key building blocks that matter when you touch any module.
DeltaV M‑series hardware provides traditional I/O with high reliability and flexible installation. Many legacy systems use this style: fixed analog or discrete cards in marshalling cabinets, home‑run wiring, and classic marshalling. S‑series builds on that by adding I/O on Demand capabilities, which tie directly into Emerson’s Electronic Marshalling concept.
Electronic Marshalling, implemented through CHARM I/O Cards (CIOCs) and Characterization Modules (CHARMs), lets you land any signal type on any channel and configure the function in software. The white paper on I/O on Demand explains that this decouples field wiring from I/O card types and allows late binding of signal types. In practice, this means you no longer have to decide up front exactly how many analog‑in, analog‑out, or discrete cards you will need in a cabinet. The research notes highlight benefits such as fewer marshalling cabinets, less home‑run wiring, reduced late‑stage rework, and richer channel‑level diagnostics.
Newer DeltaV PK and PK Flex controllers sit naturally with these modern I/O concepts. The Spartan Controls article on the latest DeltaV controller family notes that PK controllers consolidate a lot of innovation from earlier generations, provide significantly higher control capacity and memory, and integrate native Ethernet device drivers. Emerson’s controller overview stresses that Electronic Marshalling and CHARMs can be added anywhere in the plant without reworking control room cabinets, which is a big deal in brownfield sites.
When you look at your KJ3222X1-BA1 rack, the question is therefore not just “what card is this?†but “which I/O architecture is this part of, and how does that align with Electronic Marshalling and PK in the long term?â€
Some plants sit on a mix of I/O families. A DeltaV controller might be surrounded by Rockwell I/O racks or even legacy DCS I/O such as Siemens Moore APACS. The research set includes an Emerson product data summary describing DeltaV IO Connect for Rockwell I/O. That solution allows a DeltaV system to communicate with and control existing Rockwell I/O, typically over Ethernet‑based networks. The intent is to reuse field wiring and I/O hardware while moving control and operations fully into DeltaV.
Similarly, the APACS‑to‑DeltaV migration article describes how APACS systems, which are now effectively end of life, can be migrated by reusing field wiring and cabinet space. Emerson’s FlexConnect approach reuses existing marshalled termination assemblies by adapting them to DeltaV I/O. DeltaV Connect maps APACS data into DeltaV tags via an OPC bridge. The common pattern is clear: reuse I/O and wiring where it makes sense, and gradually shift logic and HMI into DeltaV.
For a KJ3222X1-BA1 replacement, this matters in two ways. First, it reminds you that Emerson has a track record of supporting I/O reuse and phased migration, not only within DeltaV but also from third‑party platforms. Second, it shows that your choices are not limited to a single card type. You can potentially step back and rethink which I/O family should own that piece of the plant for the next decade.
In real projects, I see three broad paths when a DeltaV I/O module family becomes a concern. Each is valid in the right context. None of them is as simple as “swap the card and walk away,†and that is a good thing; it forces you to address lifecycle and architecture together.
Sometimes the least disruptive move is to stay within the same general I/O family, keeping the existing chassis, power, and network, and installing a compatible Emerson module that the vendor still supports. This approach is closest to a maintenance action. You keep your existing marshalling, field wiring, and controller configuration largely intact.
The control.com DCS selection discussion reminds us that lifecycle support and internal familiarity matter as much as raw features. Staying in the same I/O family leverages the team’s existing knowledge of diagnostics, faceplates, and wiring practices. It also lets you avoid a larger cutover during a short shutdown.
However, ARC’s migration guidance warns about the risks of piecemeal hardware refreshes on very old platforms. As controllers and operating systems age, spare‑parts scarcity, vendor support limits, and cybersecurity exposure all increase. A straight swap can be the right short‑term answer for a KJ3222X1-BA1, but it may delay a modernization that you will have to tackle anyway.
Emerson’s I/O on Demand white paper and the DeltaV controllers and I/O overview both emphasize Electronic Marshalling and CHARMs as key modernization tools. Instead of continuing to rely on fixed‑function cards, you can migrate a cabinet, or even a portion of a cabinet, to CHARM I/O. The field wiring stays in place; you reterminate into CHARM carriers and configure channel types in software.
The benefits, according to Emerson’s material, include reduced engineering hours, fewer cabinets, lower rework when late changes arrive, and improved channel‑level diagnostics. From a practical commissioning standpoint, this channel‑level visibility often pays off during startups and when chasing intermittent instrument issues.
The modernization white paper notes that you can approach this in a phased way, replacing obsolete I/O infrastructure first and using stepwise cutovers to minimize downtime. That matches how I usually recommend handling a KJ3222X1-BA1 replacement in a plant that is already planning to move toward Electronic Marshalling. You start with the at‑risk cabinet, move those signals into CHARMs, and leave the rest of the system alone for now.
The DeltaV IO Connect for Rockwell I/O product and the APACS migration approach both show another option: reusing third‑party I/O while letting DeltaV own the logic and HMI. In KJ3222X1-BA1 terms, this path is relevant if you are also rationalizing your I/O footprint and have existing Rockwell or other I/O in the same area. Rather than buying new DeltaV I/O for everything, you can keep some racks in service and integrate them via IO Connect or similar gateways.
The general description in the IO Connect research notes is that this type of module maps Rockwell points into DeltaV as native signals, usually over standard Ethernet networks. You can then configure, alarm, and interlock those points in DeltaV as if they were native I/O, while the underlying modules stay Rockwell.
This approach is most attractive when there is a large investment in Rockwell racks and field wiring that would be painful to abandon. It also fits well with the ARC/Emerson recommendation to allow old and new systems to operate in parallel during transition. However, it is more complex than replacing a single DeltaV module and requires careful network and cybersecurity design.
The table below summarizes the relative trade‑offs between these approaches as they typically look in real projects, based on the vendor and third‑party guidance in the research set. This is not a compatibility chart; it is a decision‑support view.
| Option | Description | Main Advantages | Main Drawbacks | Best Fit Scenario |
|---|---|---|---|---|
| Same‑family DeltaV replacement | Replace KJ3222X1-BA1 with a compatible module in the same I/O family and chassis | Minimal wiring changes, shortest outage, leverages existing training and documentation | Does not address long‑term obsolescence or modernization, may be constrained by older controller and OS lifecycle | Plants needing a fast fix during a short shutdown, with a clear medium‑term plan to modernize later |
| Electronic Marshalling (CHARMs) | Move affected signals from KJ3222X1-BA1 onto CHARM I/O with Electronic Marshalling | Reuses field wiring, supports late I/O changes, improves diagnostics, aligns with Emerson I/O on Demand strategy | Requires cabinet work and some reengineering, introduces a newer I/O technology that staff must learn | Plants committed to staying on DeltaV for the long term and wanting to reduce future I/O project risk |
| IO Connect / 3rd‑party I/O reuse | Shift control to DeltaV while keeping Rockwell or other I/O racks in place, using IO Connect‑style gateways | Protects existing investment in third‑party I/O, supports phased migration, reduces wiring and cabinet replacement | More complex network design, added gateway layer to maintain, not applicable if all I/O is native DeltaV | Mixed‑platform sites with substantial Rockwell or similar I/O that cannot be economically replaced |
| Broader system migration | Use the KJ3222X1-BA1 issue as a trigger to move to a new control platform | Opportunity to rethink architecture, MES integration, and standards like ISA‑88 from scratch | Highest cost and risk, significant retraining, long schedule; rarely justified by a single module issue | Special cases where DeltaV itself is being retired or replaced for corporate‑strategy reasons |
A common failure mode in I/O replacement projects is focusing only on the hardware and ignoring controller loading, sequencing strategy, and batch standards. The research set includes a DeltaV white paper on sequential logic that is a good reminder of this broader view.
In that paper, engineers describe replacing Sequential Function Charts with function‑block‑based sequences in a boiler application to reduce controller loading. SFCs are intuitive, self‑documenting, and great for visualizing discrete sequences, but in DeltaV they can consume significant controller processor time, especially when many sequences run at once. The function‑block approach met the same process requirements while lowering CPU use and leveraging standard DeltaV function blocks like Condition and Device Control.
When you change I/O, especially if you move from an older I/O card like the KJ3222X1-BA1 to CHARM I/O or to a controller like PK with higher capacity, it is worth revisiting your sequence strategy at the same time. A controller upgrade without rethinking heavy SFC‑based logic might simply move the bottleneck a few years out. Combining an I/O modernization with sequence optimization can extend controller headroom and improve maintainability in one shot.
ISA‑88 also enters the picture for batch or semi‑batch plants. The control.com DCS selection thread emphasizes that modular, ISA‑88‑compliant design allows significant reuse of phases, operations, and units. When migrating I/O and, potentially, controllers, it is an opportunity to clean up code so that recipes and phases can be reused across similar equipment. That reuse reduces engineering effort when you later expand lines or add parallel units.
Emerson’s modernization material and the DeltaV Revamp service description both stress that modern projects should use digital workflows and early testing. DeltaV Revamp is positioned as a way to execute projects through fully digital data paths, eliminating manual handoffs and reducing errors. The goal is to enable earlier testing so that checkout before startup is faster and more predictable.
The ARC/Emerson migration white paper adds further best practices. It recommends lifecycle and risk assessments to prioritize which assets to tackle first, parallel operation of old and new systems where possible, extensive offline testing and simulation, and structured cutover scenarios. Applied to a KJ3222X1-BA1 replacement, that translates into a few concrete behaviors.
First, build or update a detailed I/O list and signal map around the module, including scaling, range, HART or diagnostic use, and interlocks. Second, stage configuration changes in a test environment whenever possible and simulate signal changes through the replacement path, especially if you are moving to Electronic Marshalling or bringing in IO Connect. Third, plan the cutover so that you can revert or bypass safely if an unexpected behavior appears.
The Proconex article on continuous engineering for DeltaV systems reinforces the value of treating this work as part of an ongoing engineering program rather than a one‑off capital project. They describe continuous engineering as regular system reviews, loop tuning, HMI optimization, and controlled patching to keep the system efficient and resilient. Folding your KJ3222X1-BA1 replacement into that kind of continuous program, rather than a rushed maintenance task, helps ensure that tuning, alarm rationalization, and operator display updates keep pace with the hardware change.

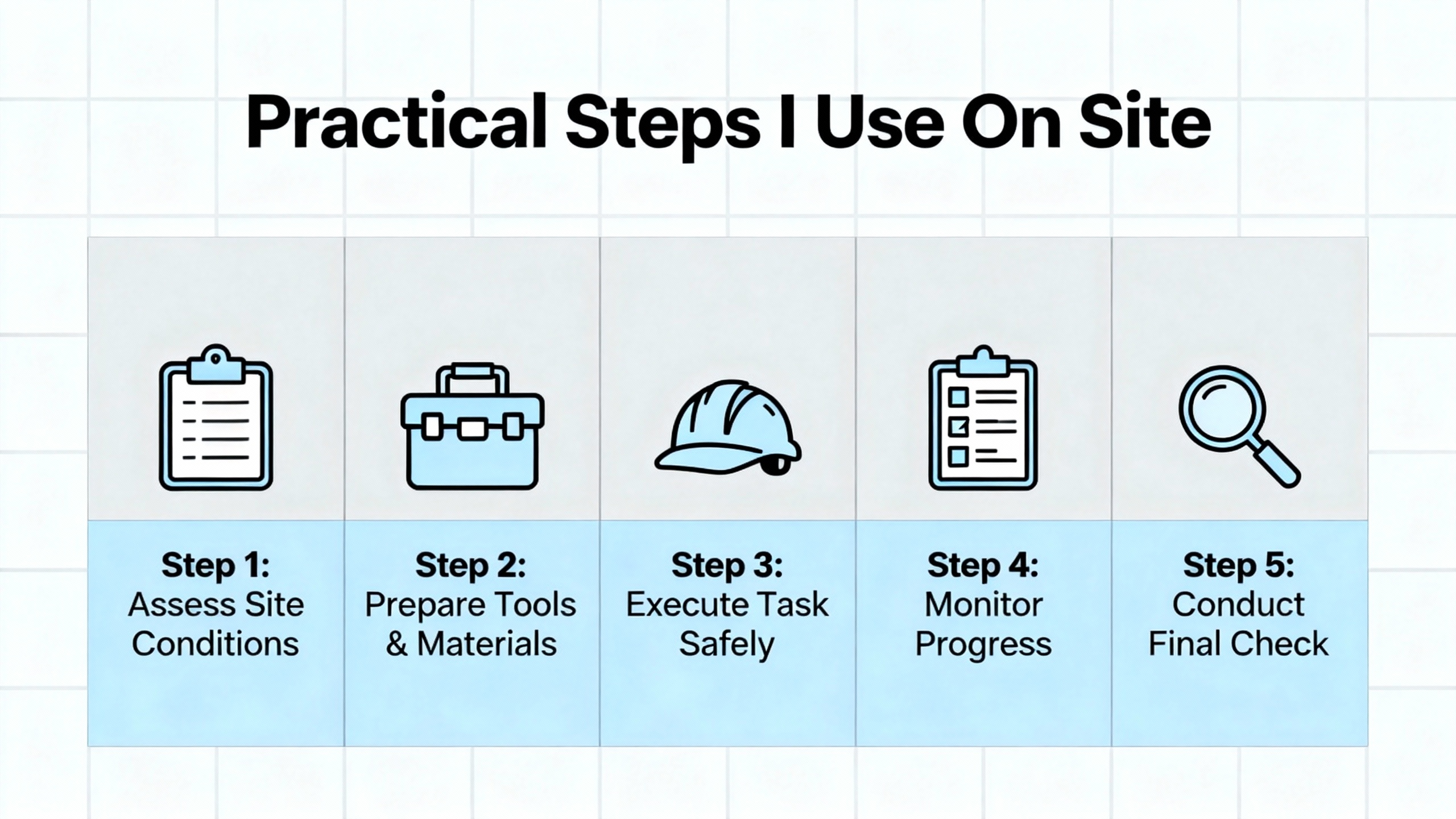

When I support a plant through a DeltaV I/O modernization that includes one or more KJ3222X1-BA1‑style modules, I approach it as a structured series of conversations and checks rather than a purely technical exercise.
The first step is to clarify objectives with operations and maintenance. Is the primary driver spares availability, obsolescence risk, nuisance failures, or a broader modernization program? That answer usually points toward either a direct same‑family replacement or a move to Electronic Marshalling.
Next, I map the technical context. I confirm which controller family is in use, how heavily loaded it is, and whether significant SFC‑based sequences sit on that controller. The sequential logic white paper shows that controller CPU loading is not a theoretical concern; it can become a real limiter. If the controller is already near capacity, simply swapping an I/O card without addressing logic or considering a controller upgrade might be shortsighted.
I then match that picture against Emerson’s modernization options as summarized in the research. If the plant is already leaning toward I/O on Demand and Electronic Marshalling, moving KJ3222X1-BA1‑connected loops into CHARMs is often the most future‑proof option. If the plant has a mix of Rockwell I/O nearby, I explore whether IO Connect‑style integration could let DeltaV take over control while preserving that hardware.
Finally, I insist on treating the change as a small migration project, not just a maintenance work order. That means a defined test plan, updated documentation, and explicit checks on alarm behavior and batch sequences. The investment is modest compared with the cost of production loss from an avoidable commissioning surprise.
Can I treat a KJ3222X1-BA1 replacement as a simple like‑for‑like swap?
You can, and in some cases that is all you can realistically fit into a short shutdown. However, vendor and third‑party material consistently point out that hardware and operating system obsolescence, cybersecurity exposure, and controller loading are growing concerns in older systems. A like‑for‑like swap buys time, but it does not change the trajectory. At minimum, use the opportunity to document the I/O and controller loading thoroughly so that you can plan a more strategic modernization.
Is Electronic Marshalling overkill for a small I/O replacement?
For a very small, isolated I/O island, Electronic Marshalling may look like extra complexity. Emerson’s I/O on Demand and controllers and I/O material, though, shows that CHARMs are designed specifically to simplify late changes and expansions by decoupling field wiring from signal type. If you are replacing KJ3222X1-BA1‑class modules in an area that is likely to see future modifications, Electronic Marshalling can pay for itself in reduced rework and easier expansions.
When does it make sense to reuse third‑party I/O instead of installing new DeltaV I/O?
The research around DeltaV IO Connect for Rockwell I/O and the APACS migration path shows that third‑party I/O reuse is most attractive when the installed base is large, well understood, and physically difficult or expensive to replace. In those cases, gateways let you move control and HMI into DeltaV without ripping out entire racks and thousands of terminations. For isolated I/O segments, or where the third‑party I/O is itself nearing end of life, new DeltaV I/O or Electronic Marshalling is often a cleaner answer.
On paper, replacing a KJ3222X1-BA1 looks like a part‑number problem. In a real plant, it is a design decision that touches controller loading, I/O architecture, modernization strategy, and even operator effectiveness. The most reliable sites I work with treat these module questions as opportunities to move steadily toward the architecture that Emerson and independent analysts describe: flexible, I/O‑on‑demand hardware, ISA‑88‑aligned batch control, and digital, continuously engineered projects. If you approach your next DeltaV I/O replacement with that mindset, you are not just keeping the lights on; you are quietly upgrading the backbone of your automation system.
