Features:
- Analog Input Module function for the documented Emerson DeltaV control system platform.
- Local Bus Power: 12 VDC at 150 mA.
- Bussed Field Power: 24 VDC at 500 mA.

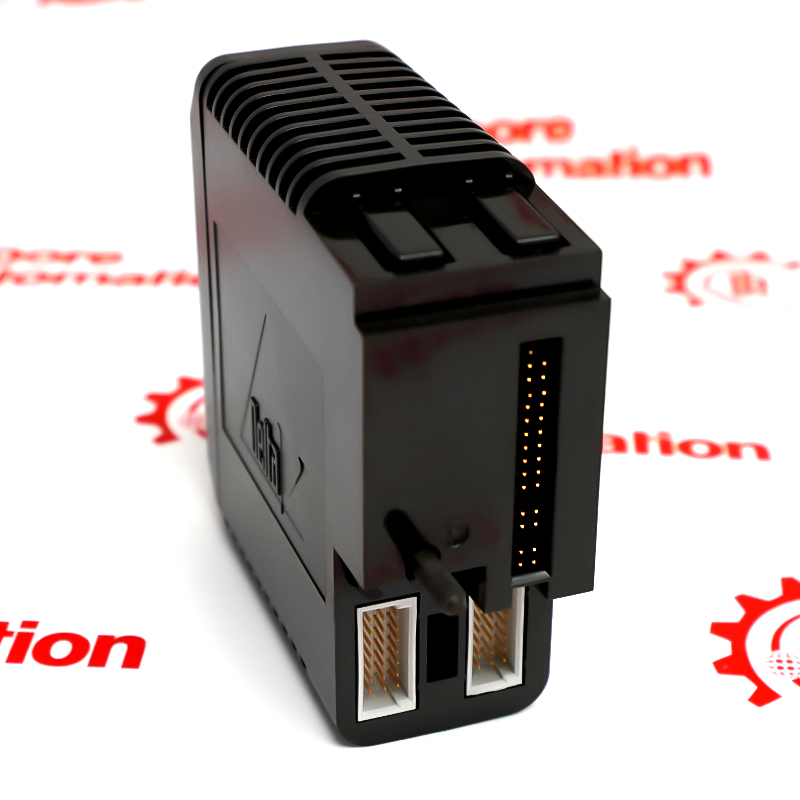

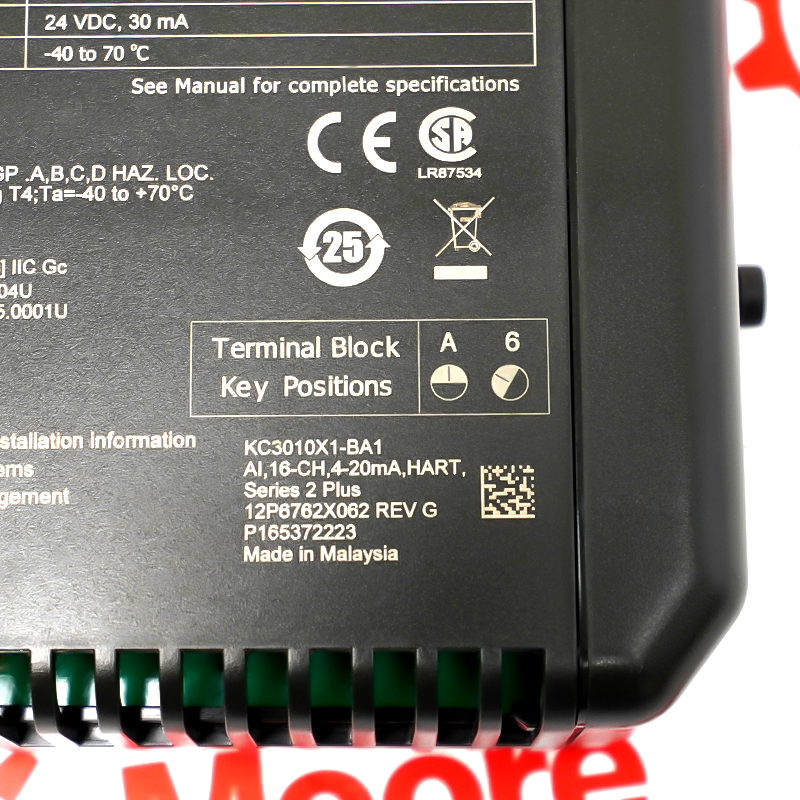

KC3010X1-BA1 12P6762X062 is a Emerson analog input module for the Emerson DeltaV control system. The documented identity places it in the Emerson DeltaV product family and defines its role as analog input module within the installed control or monitoring architecture.
The available manufacturer-family information records local bus power: 12 VDC at 150 mA; bussed field power: 24 VDC at 500 mA; field circuit: 24 VDC at 30 mA/Ch.. Before replacement, compare the complete nameplate, receiving hardware, connector or terminal arrangement and approved project documentation; after installation, verify diagnostics and every affected signal or communication path before process release.
The KC3010X1-BA1 12P6762X062 Analog Input Module is treated as Confirm Current OEM Lifecycle Status. Moore Automated may supply the exact item subject to stock, condition and complete identity verification.
Emerson KC3010X1-BA1 12P6762X062 Analog Input Module Manual(Datasheets), Link
Important Notice: Use the exact-model manufacturer document when available. If no exact PDF is confirmed, rely on the verified product-family and model information linked within Moore Automated. Accessories, cables, calibration data and software are included only when stated in the quotation. All prices are shown in USD.
KC3010X1-BA1 12P6762X062 is a Emerson analog input module for the Emerson DeltaV control system. The documented identity places it in the Emerson DeltaV product family and defines its role as analog input module within the installed control or monitoring architecture.
The listed parameters are limited to the documented model or product-family evidence. Do not import ratings from a similar part number; compare the exact label, slot or carrier, terminal map and connected equipment.
KC3010X1-BA1 12P6762X062 must remain matched to the documented Emerson DeltaV control system installation. Confirm the receiving hardware generation, connector or terminal arrangement, software or configuration dependencies and system drawings before approving the item.
Photograph labels and connections before removal and preserve the original position, keying, addressing and channel allocation.
Isolate the equipment using the approved procedure, verify all stored energy is removed and inspect the receiving hardware before fitting KC3010X1-BA1 12P6762X062.
After installation, restore power in the documented sequence, review diagnostics and test every affected signal, relay, network, control or protection function against the commissioning record.
