Features:
- LocalBus power rating: Supports the documented 120 VAC at 100 mA specification in the approved DeltaV configuration.
- Field circuit rating: The documented isolated discrete output module specification is 230 VAC at 5 mA/channel; verify it against the supplied label before installation.
- The number of CH: The documented isolated discrete output module specification is 8 channels; verify it against the supplied label before installation.

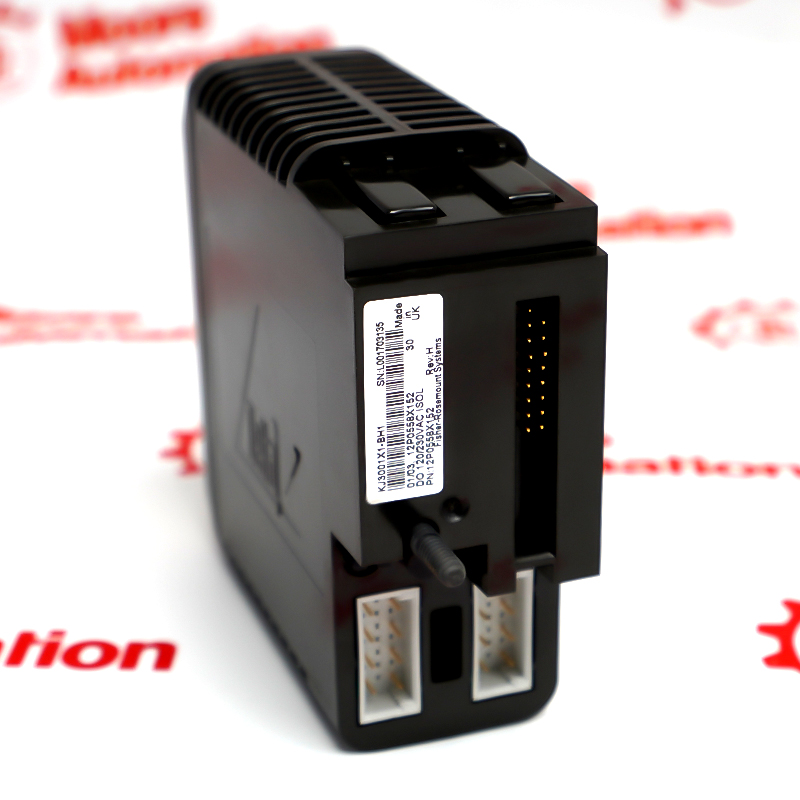

The KJ3001X1-BH1 12P0558X152 Emerson isolated discrete output module performs its documented automation, interface, control or monitoring duty within the DeltaV platform. Its correct operation depends on the relationship between the installed hardware, connected field equipment and approved system configuration. Complete model identification reduces the risk of connector, channel and revision mismatches during maintenance.
Before installing KJ3001X1-BH1 12P0558X152, compare the full product label, installed position, terminal or connector arrangement, paired assemblies, firmware or logic requirements and available project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The KJ3001X1-BH1 12P0558X152 Emerson Isolated Discrete Output Module is identified as Active / Available from OEM. Current availability, revision and supplied scope are confirmed in the written quotation.
Emerson KJ3001X1-BH1 12P0558X152 documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.

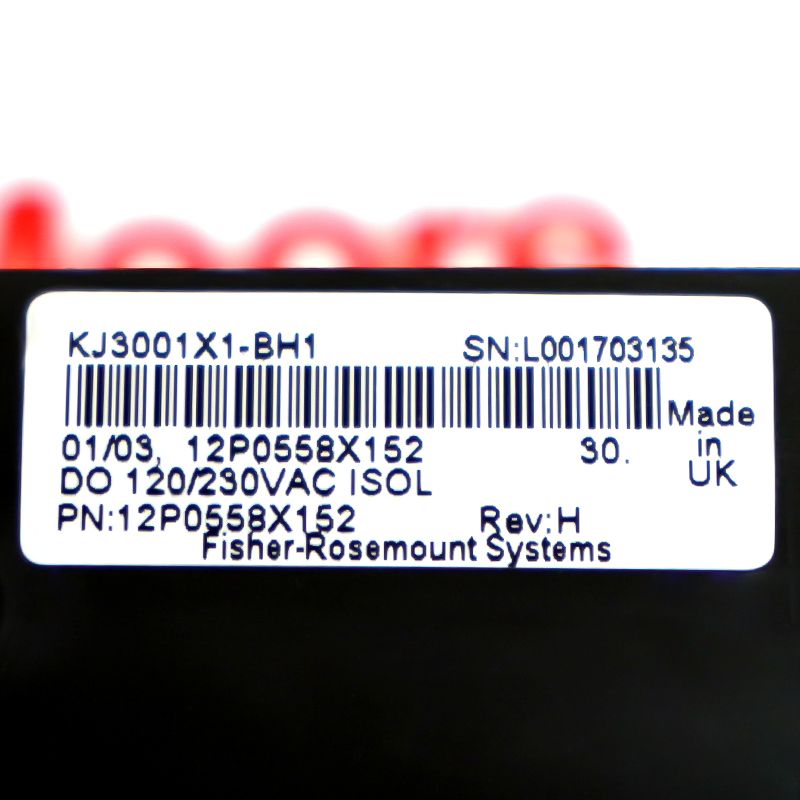

Verify that the supplied item is marked KJ3001X1-BH1 12P0558X152 and that its isolated discrete output module form, connectors and revision agree with the approved DeltaV receiving record.
For KJ3001X1-BH1 12P0558X152, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact KJ3001X1-BH1 12P0558X152 record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
