Features:
- Local Bus Power: Supports the documented 12 VDC at 150 mA specification in the approved DeltaV configuration.
- Bussed Field Power: Supports the documented 24 VDC at 300 mA specification in the approved DeltaV configuration.
- Field Circuit: The documented analog input module specification is 24 VDC at 30 mA/Ch; verify it against the supplied label before installation.
The KJ3222X1-BK1 12P4705X062 SE4003S2B1 Emerson analog input module performs its documented automation, interface, control or monitoring duty within the DeltaV platform. Its correct operation depends on the relationship between the installed hardware, connected field equipment and approved system configuration. Complete model identification reduces the risk of connector, channel and revision mismatches during maintenance.
Before installing KJ3222X1-BK1 12P4705X062 SE4003S2B1, compare the full product label, installed position, terminal or connector arrangement, paired assemblies, firmware or logic requirements and available project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The KJ3222X1-BK1 12P4705X062 SE4003S2B1 Emerson Analog Input Module is identified as Active / Available from OEM. Current availability, revision and supplied scope are confirmed in the written quotation.
Emerson KJ3222X1-BK1 12P4705X062 SE4003S2B1 documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.

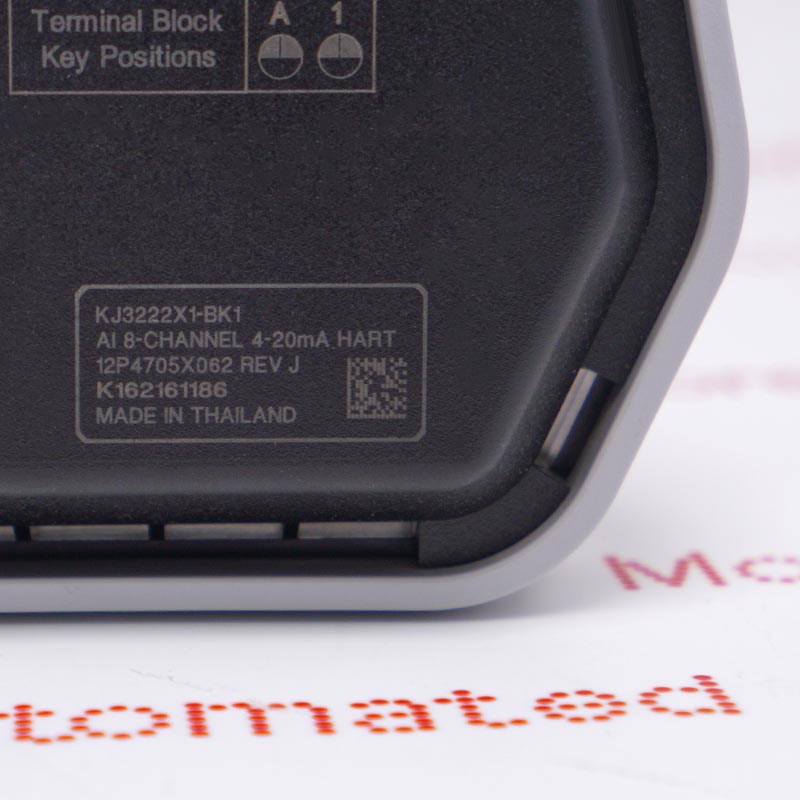

Verify that the supplied item is marked KJ3222X1-BK1 12P4705X062 SE4003S2B1 and that its analog input module form, connectors and revision agree with the approved DeltaV receiving record.
For KJ3222X1-BK1 12P4705X062 SE4003S2B1, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact KJ3222X1-BK1 12P4705X062 SE4003S2B1 record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
