Features:
- Data Load: The documented profibus master gateway i/o module specification is 244 bytes of inputs and outputs per slave; verify it against the supplied nameplate before installation.
- Network Capacity: The documented profibus master gateway i/o module specification is Supports up to 125 slaves; verify it against the supplied nameplate before installation.
- Input: Provides 28 Vdc, 0.18 A max for the verified control, monitoring or diagnostic duties assigned to IS220PPRFH1B.

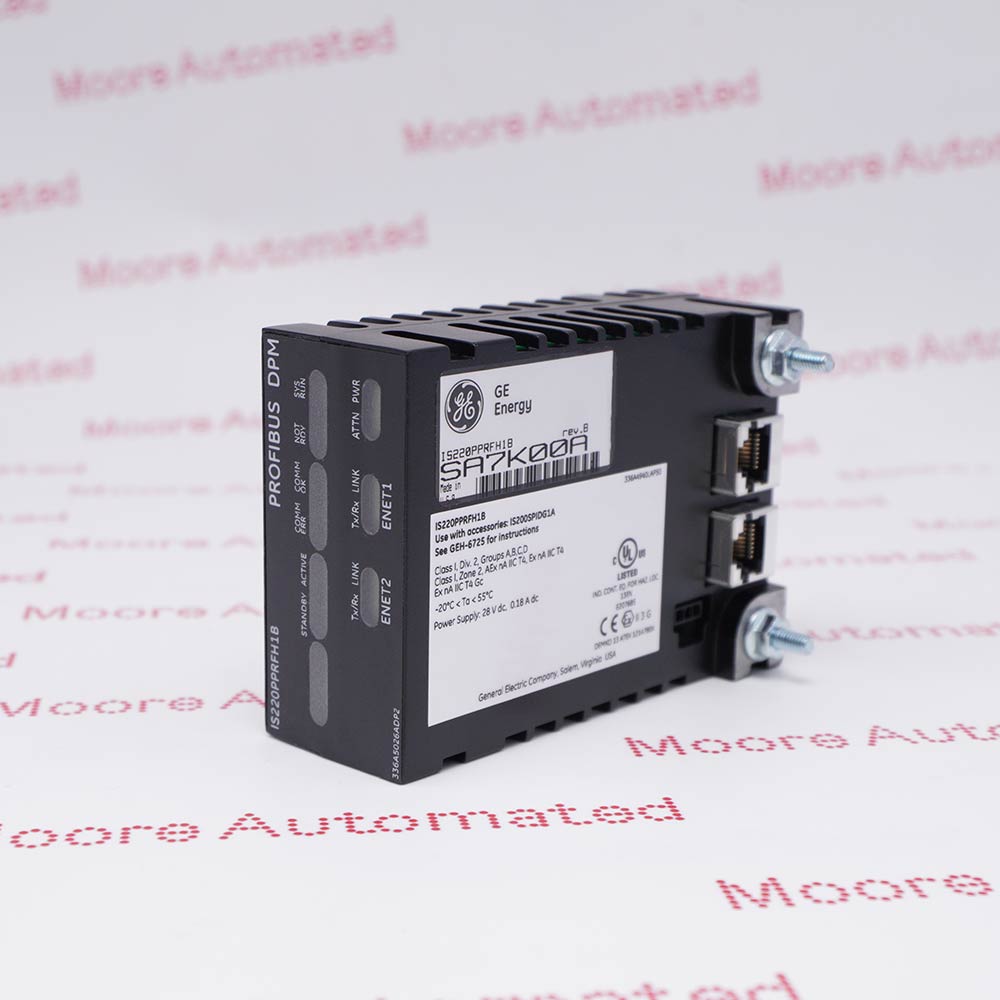

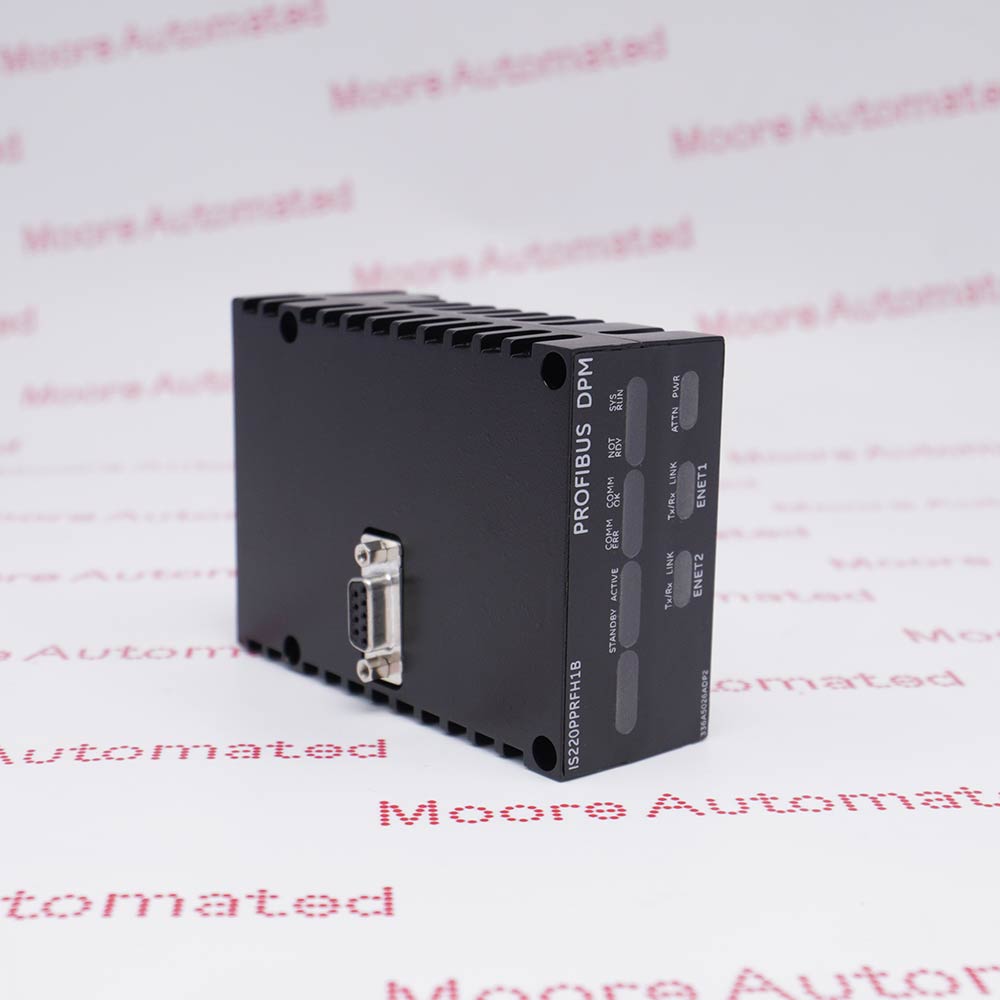

The IS220PPRFH1B General Electric profibus master gateway i/o module plays a defined role in industrial automation and maintains the documented industrial communication path between controllers and connected devices within the GE Mark VIe platform. Its documented execution helps the control system maintain dependable operation while reducing the risk of mismatched connectors, channel assignments, ratings and hardware revisions during maintenance.
Before installing IS220PPRFH1B, compare the complete product label, terminal or connector arrangement, paired assemblies, firmware or logic requirements and approved project records. After replacement, review diagnostics and function-test every affected control, protection, communication or field-signal path before returning the equipment to service.
The IS220PPRFH1B General Electric PROFIBUS Master Gateway I/O Module is identified as Active / Available from OEM. Current availability, revision and supplied scope are confirmed in the written quotation.
General Electric IS220PPRFH1B documentation and reference links.
Important Notice: The linked information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.

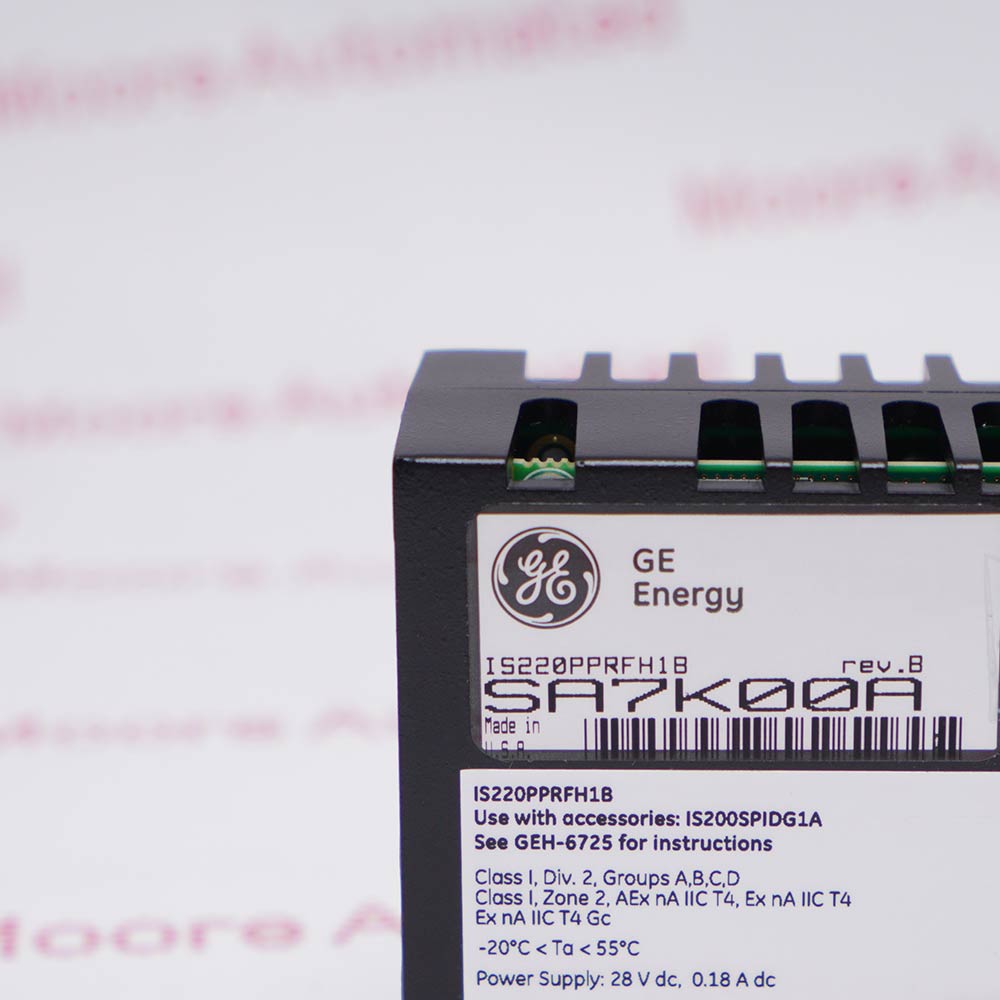

Verify that the supplied item is marked IS220PPRFH1B and that its profibus master gateway i/o module form, connectors and revision agree with the approved GE Mark VIe receiving record.
For IS220PPRFH1B, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact IS220PPRFH1B record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
