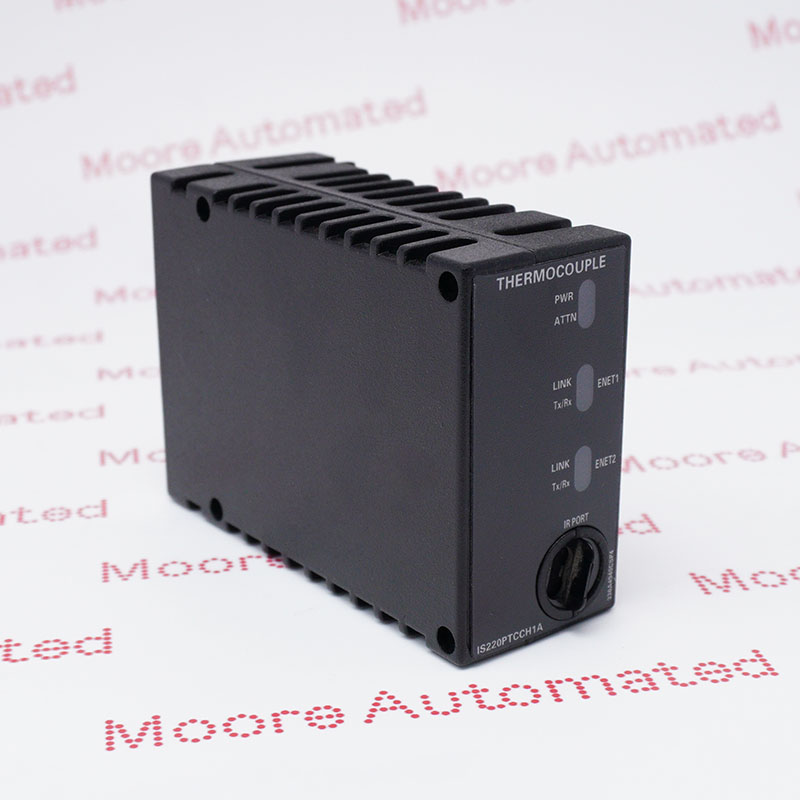

The General Electric IS220PTCCH1A is a thermocouple input modules for GE Mark VIe industrial automation applications. Documented product details include IO PACK; THERMOCOUPLE; 2 ETHERNET PORTS; AMBIENT TEMPERATURE RATING:; -30 TO + 65°C (-22 TO +149 °F). Confirm the complete model code, hardware revision and supplied condition against the installed equipment before replacement.

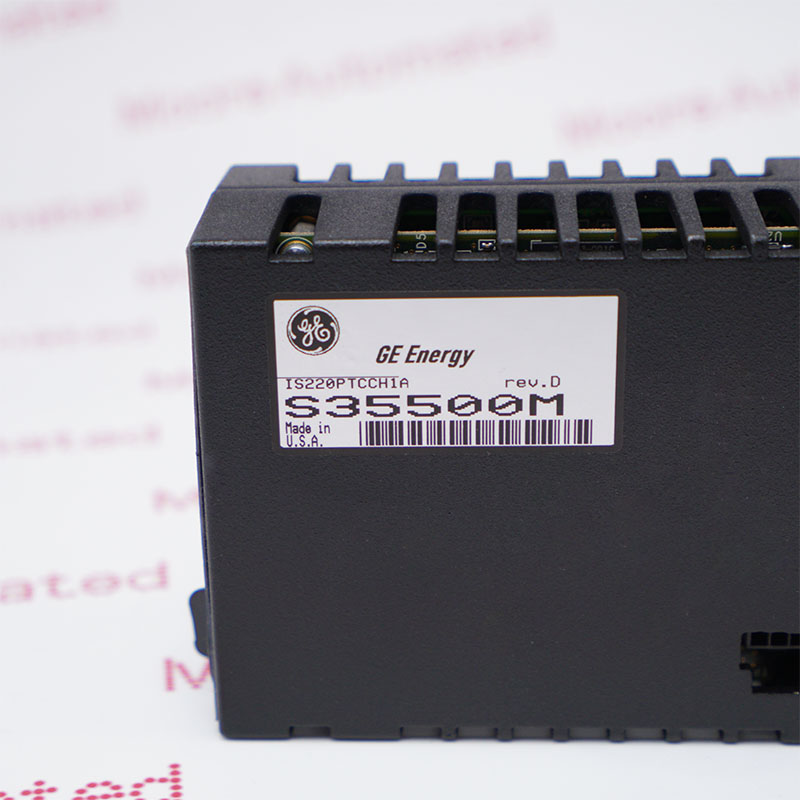

Verify that the supplied item is marked IS220PTCCH1A and that its thermocouple input modules form, connectors and revision agree with the approved GE Mark VIe receiving record.
For IS220PTCCH1A, state the required condition, quantity, installed position, connected assemblies and document requirements in the written enquiry.
Apply only parameters supported by the exact IS220PTCCH1A record or a documented family source. Do not infer electrical ratings or interchangeability from appearance.
IS220PTCCH1A technical scope: Min Voltage: 27.4 V dc; Nominal Voltage: 28.0 V dc; Max Current: 0.16 A dc; Thermocouple Inputs Voltage: -8 to 45 mV dc; Non-hazardous: UL E207685.
Use these values only for the listed hardware execution and verify the supplied label before installation.
Match IS220PTCCH1A to the approved GE Mark VIe receiving position, connector or terminal arrangement and configuration record.
After power restoration, review diagnostics and test the affected thermocouple input modules path.
Active / Available from OEM
IS220PTCCH1A is a General Electric thermocouple input modules associated with the GE Mark VIe platform. It interfaces the documented field signals with the control system through the assigned channels, terminals and installed I/O position. Correct selection depends on the complete model code, connector or terminal arrangement, hardware revision and receiving-system configuration. Before replacement, compare the original product label, installed slot or cabinet reference, connected assemblies and approved project records. After installation, review system diagnostics and function-test every affected channel, control path, protection function or communication link before returning the equipment to service.
