Features:
- EH-PT4 is identified by input channels 4 within the documented EH-150 programmable controllers configuration.
- The official specification gives sensor types as Pt100 and Pt1000 RTD, which must be retained during selection.
- Commissioning must also preserve measurement ranges (-20 to +40 or -50 to +400 degrees C) and the stated connection limits.

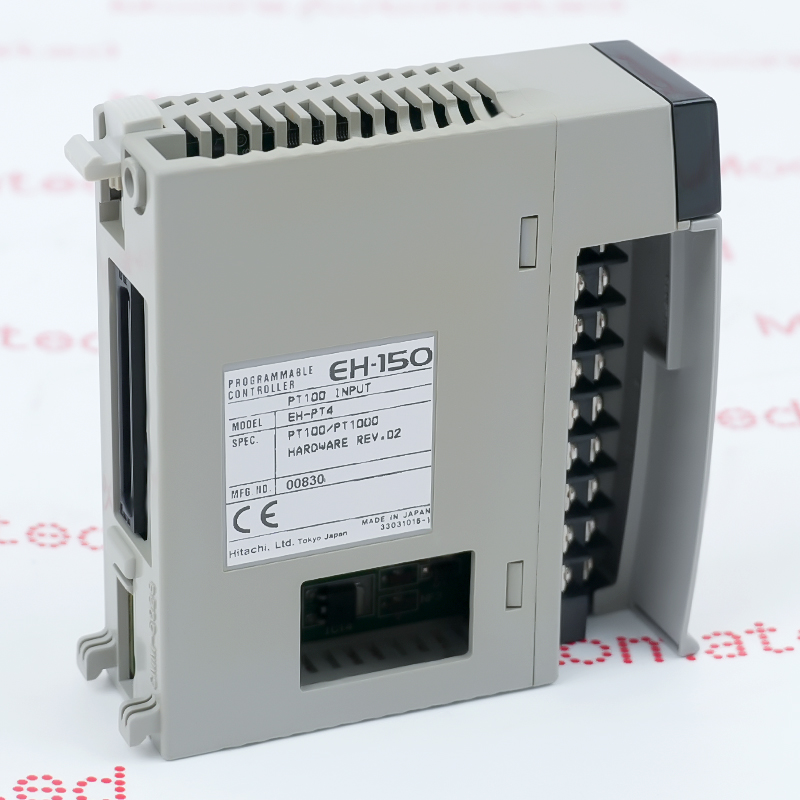

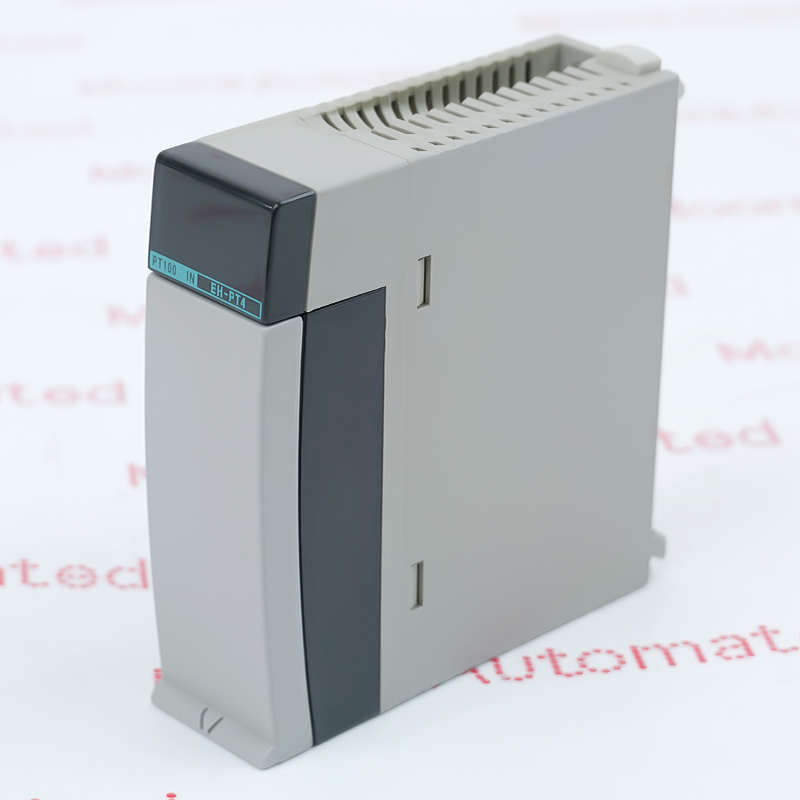

An EH-150 temperature-input module accepting four platinum resistance temperature detector channels. It supports Pt100 and Pt1000 elements, signed 15-bit conversion, linearization and a removable M3 terminal block for industrial temperature acquisition. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official EH-150 programmable controllers documentation.
Moore Automated supports exact-item verification and spare-part enquiries for EH-PT4.
No public single-model PDF was located for EH-PT4; use the verified related internal resource before requesting exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

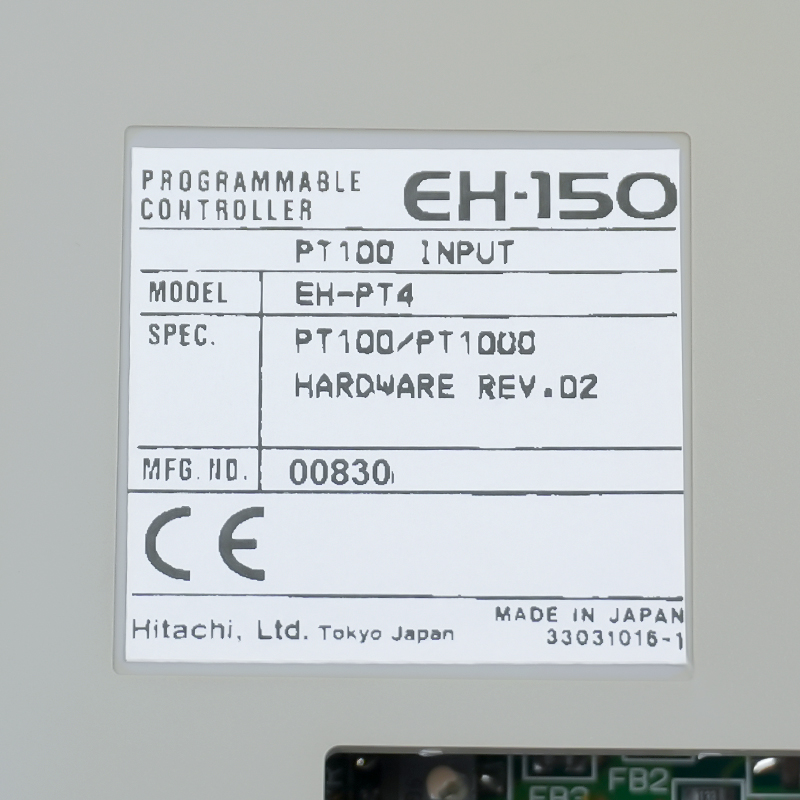

Confirm the complete EH-PT4 identity and compare input channels, sensor types and measurement ranges with the installed design before approving a replacement.
Use in an EH-150 base and CPU configuration that supports EH-PT4. Confirm 24 VDC external power, I/O allocation, sensor type, three-wire shielded wiring and selected measurement range.
Power down the base, seat the module and terminal block, wire each RTD according to the documented three-wire circuit, short unused terminals as instructed and validate channel scaling and open-circuit diagnostics.
