- Nine-metre calibration defines the required combined probe and extension-cable length for this sensor execution.
- Panel-mount packaging uses the documented four-hole footprint and electrically isolated mounting base.
- SpringLoc terminals support field wiring while improved RFI and EMI immunity reduces special enclosure requirements.

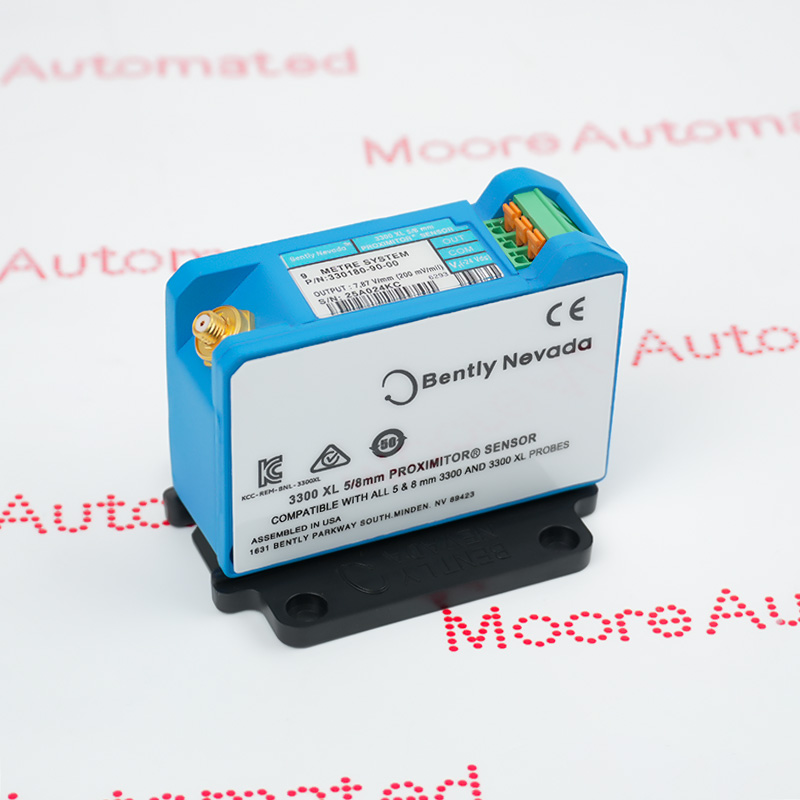

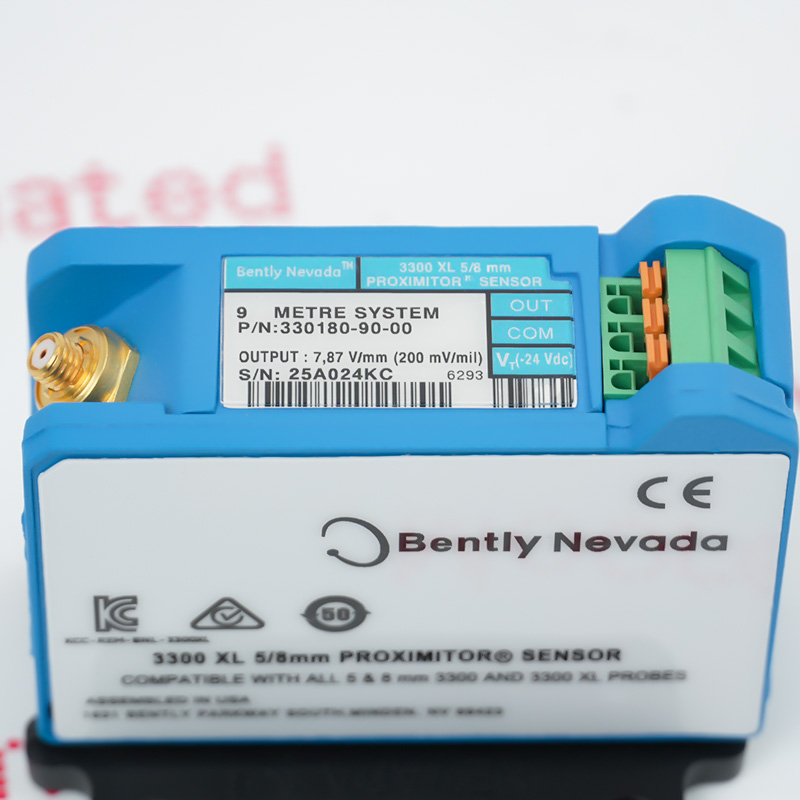

The 330180-90-00 converts the matched eddy-current probe signal into a voltage proportional to target distance. Its 90 code is a system-length and mounting definition, so a DIN-mount or 5 m sensor cannot be accepted from appearance alone.
Commissioning must preserve probe family, total system length, target material and field-wiring practice. Supply polarity, bias voltage and monitor-channel response should be checked before machinery protection is returned to operation.
The exact item is supplied only after its complete label, condition and current OEM availability have been confirmed.
Bently Nevada 330180-90-00 Proximitor Sensor Manual(Datasheets), Link
Important Notice: The uploaded PDF documents the listed model or its identified manufacturer family. Confirm the complete order code, connected hardware and installation requirements before replacement. Accessories and cables are included only when stated in the quotation. All prices are shown in USD.
Verify the panel-mount footprint, isolation and available terminal clearance before installing the 330180-90-00.
Confirm the negative DC supply, current capacity, shielding and monitor input before reconnecting field wiring.
With the matched 9 m chain connected, check bias, scale response and affected alarm logic against the commissioning record.
