Features:
- FSC-SMM Communication Module for the documented Honeywell FSC / Safety Manager.
- FSC software version: ≥ 400.
- Space requirements: 8 TE, 3 HE (= 8 HP, 3U).

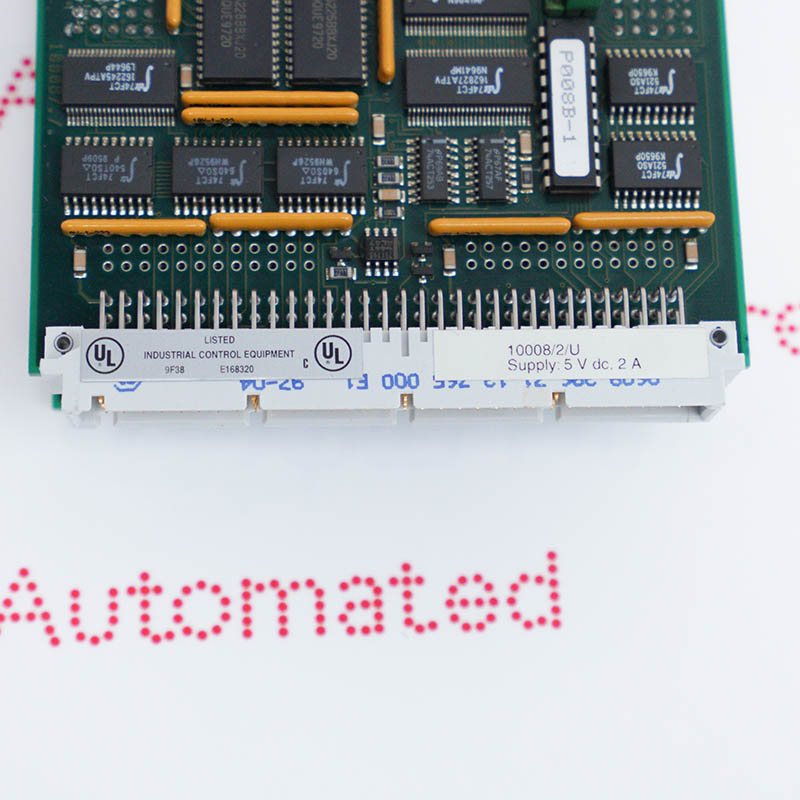

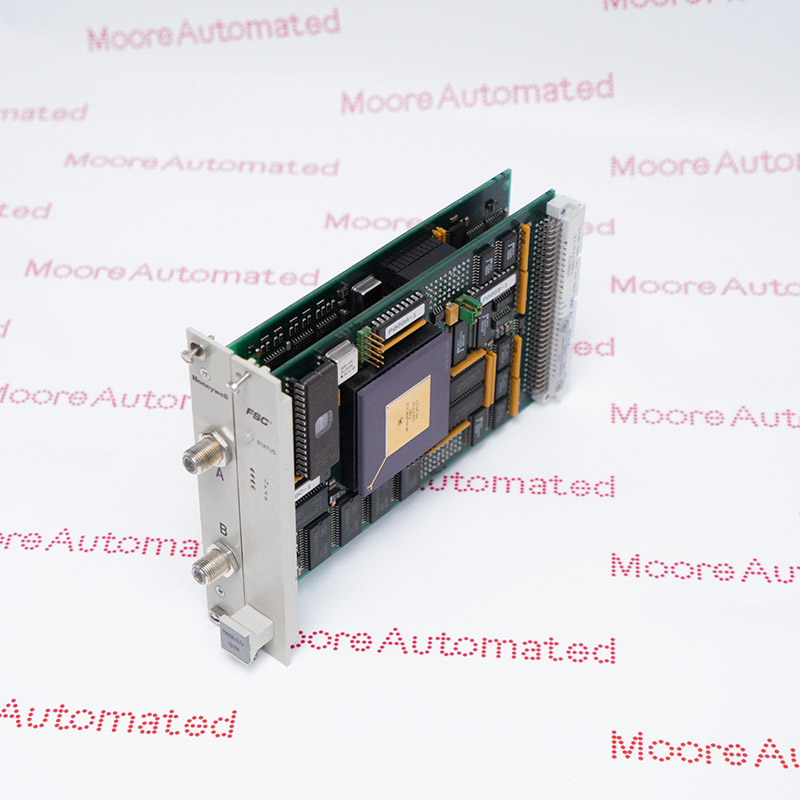

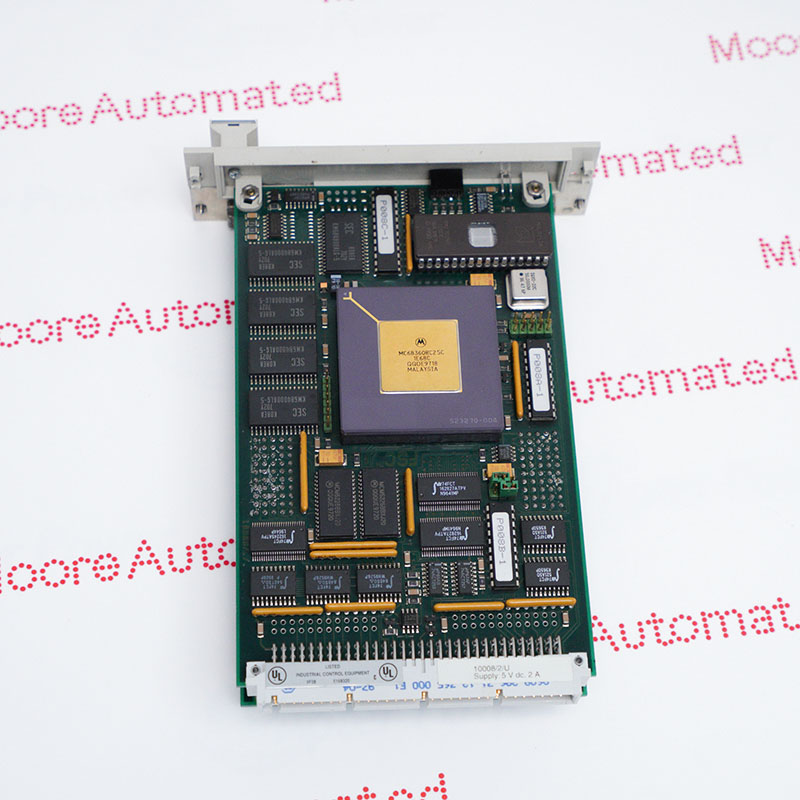

10008/2/U belongs to the Honeywell FSC / Safety Manager and performs the documented fsc-smm communication module role in the Honeywell fail-safe control system. The retained technical evidence records FSC software version: ≥ 400; Space requirements: 8 TE, 3 HE (= 8 HP, 3U); Power requirements: 5 Vdc 2 A. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Honeywell FSC / Safety Manager receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The 10008/2/U FSC-SMM Communication Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Honeywell 10008/2/U FSC-SMM Communication Module Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Network Fit: 10008/2/U performs the fsc-smm communication module function within the Honeywell FSC / Safety Manager. The retained documentation identifies fsc software version as ≥ 400; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Integration Review: approve 10008/2/U only for the documented Honeywell fail-safe control system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Startup Testing: isolate the equipment, remove stored energy and inspect the receiving hardware before installing 10008/2/U.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
