Features:
- Field Control Processor for the documented Foxboro I/A Series.
- Processor SDRAM and flash memory: 128 MB.
- Block Executions Per Second: 16,000 blocks/second, maximum.

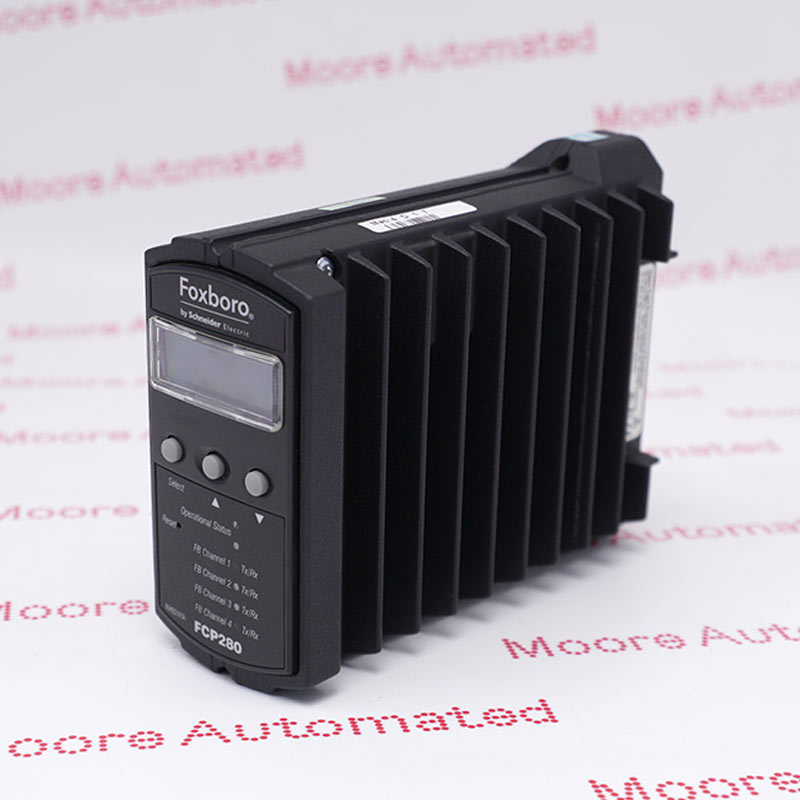

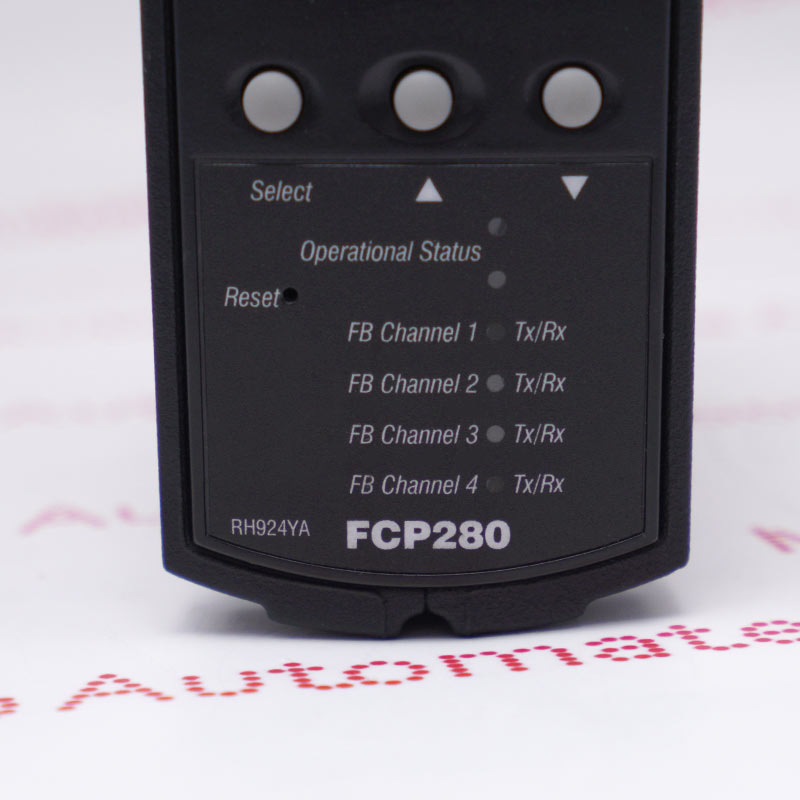

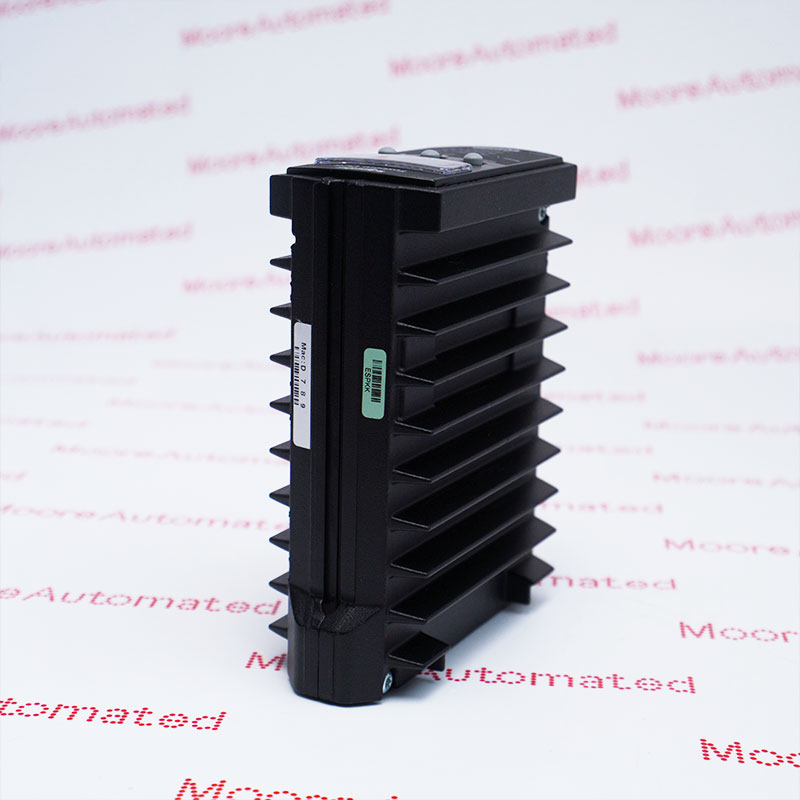

RH924YA FCP280 belongs to the Foxboro I/A Series and performs the documented field control processor role in the Foxboro I/A distributed control system. The retained technical evidence records Processor SDRAM and flash memory: 128 MB; Block Executions Per Second: 16,000 blocks/second, maximum; Transmission Rate: 2 Mbps for 200 Series FBMs or 268 Kbps for 100 Series FBMs. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Foxboro I/A Series receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The RH924YA FCP280 Field Control Processor is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Foxboro RH924YA FCP280 Field Control Processor Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Execution Role: RH924YA FCP280 performs the field control processor function within the Foxboro I/A Series. The retained documentation identifies processor sdram and flash memory as 128 MB; apply that value only to this documented execution.

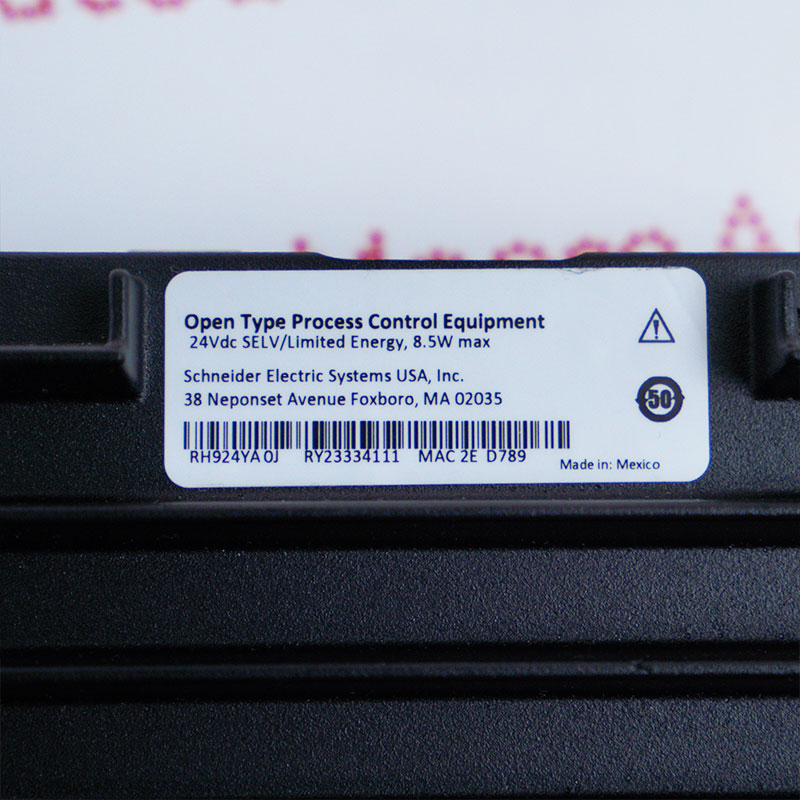

Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
System Review: approve RH924YA FCP280 only for the documented Foxboro I/A distributed control system. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Validation Steps: isolate the equipment, remove stored energy and inspect the receiving hardware before installing RH924YA FCP280.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
