Features:
- Fieldbus Module for the documented Foxboro I/A Series and Foxboro Evo.
- Hardware Role: Fieldbus Module.
- Receiving System: Approved Foxboro I/A Series or Foxboro Evo position.

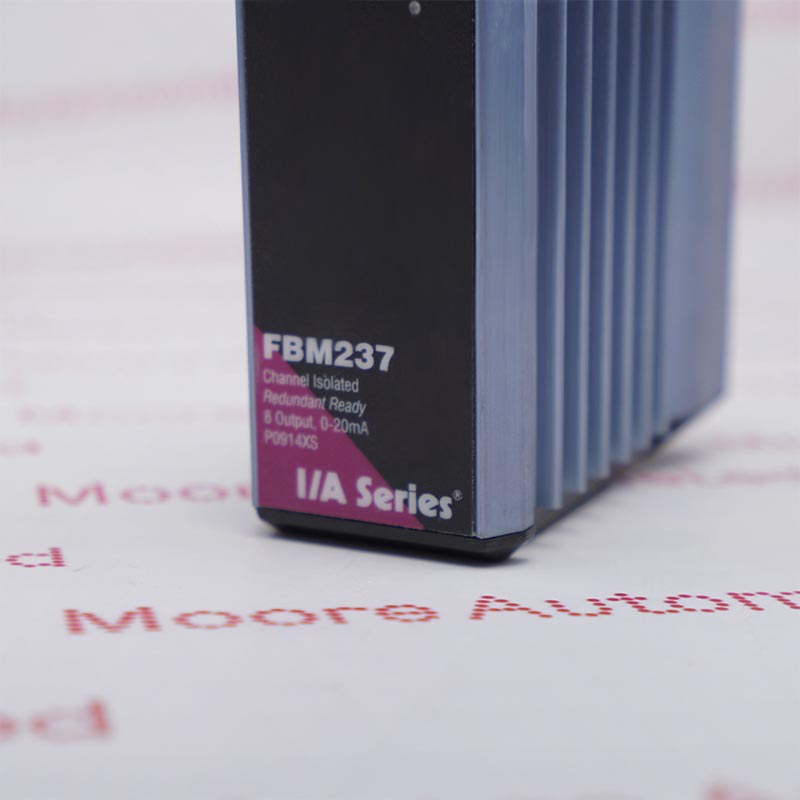

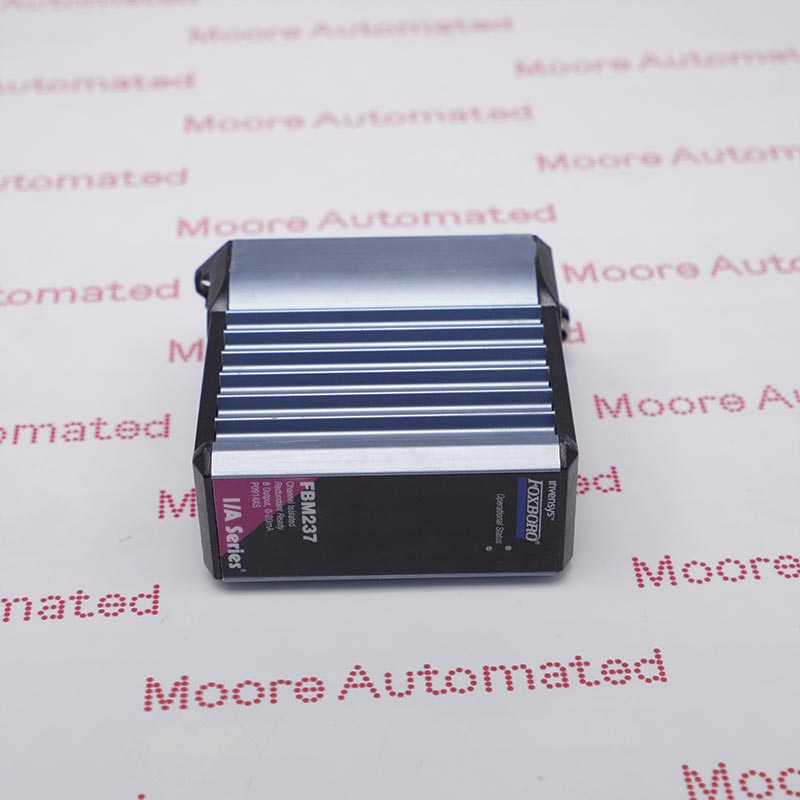

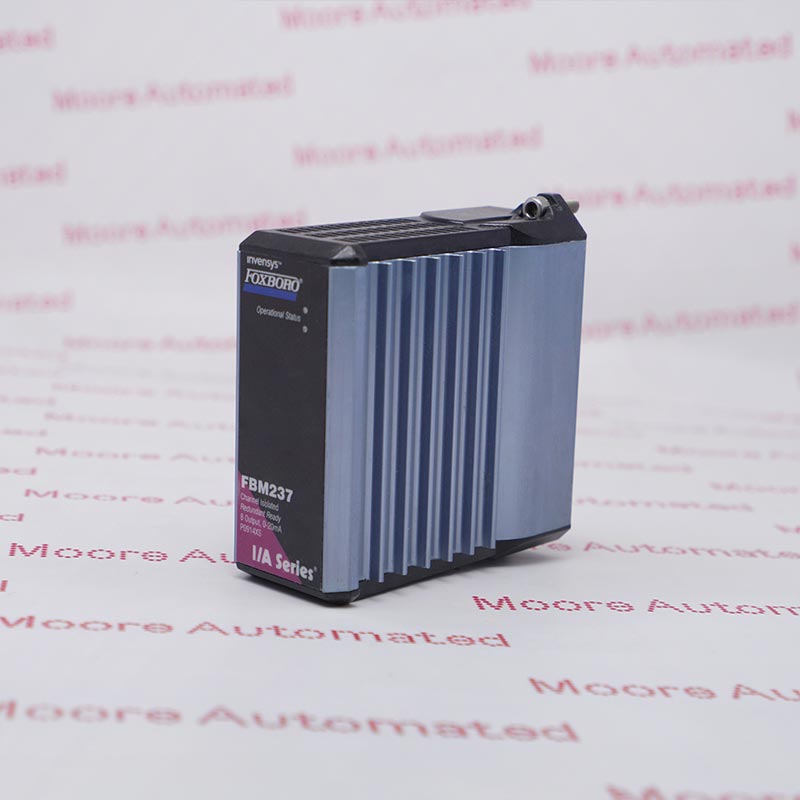

FBM237 belongs to the Foxboro I/A Series and Foxboro Evo and performs the documented fieldbus module role in the Foxboro I/A Series and Foxboro Evo distributed control architecture. The retained technical evidence records Hardware Role: Fieldbus Module; Receiving System: Approved Foxboro I/A Series or Foxboro Evo position; Interface Basis: Matching connectors, terminals and field wiring. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the Foxboro I/A Series and Foxboro Evo receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The FBM237 Fieldbus Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
Foxboro FBM237 Fieldbus Module Manual(Datasheets), Link
Important Notice: The linked PDF documents the listed Foxboro model or its identified product family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Network Fit: FBM237 performs the fieldbus module function within the Foxboro I/A Series and Foxboro Evo. The retained documentation identifies hardware role as Fieldbus Module; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Platform Review: approve FBM237 only for the documented Foxboro I/A Series and Foxboro Evo distributed control architecture. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Acceptance Test: isolate the equipment, remove stored energy and inspect the receiving hardware before installing FBM237.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
