Features:
- CV-X420F is identified by controller class CV-X F-series within the documented CV-X intuitive vision systems configuration.
- The official specification gives supported camera class as Up to 2 megapixels, which must be retained during selection.
- Commissioning must also preserve inspection platform (CV-X icon-driven vision tools) and the stated connection limits.

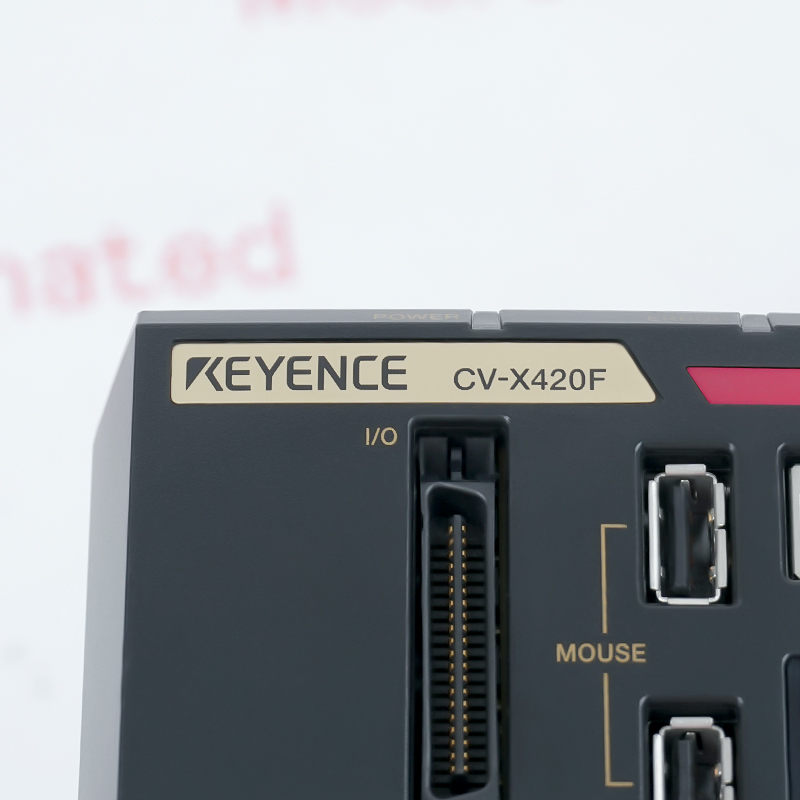

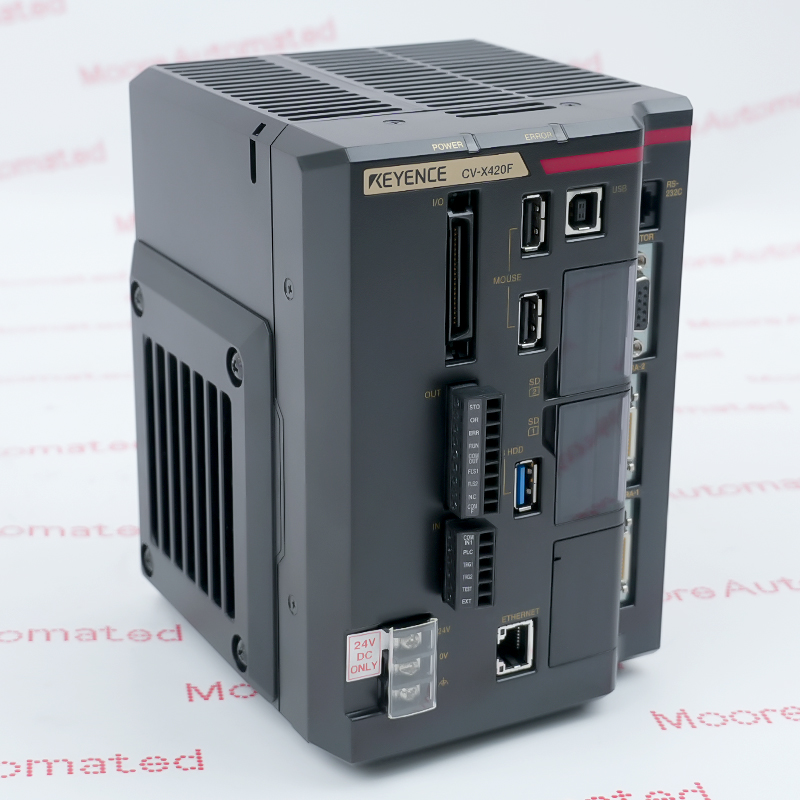

A CV-X Series vision-system controller designed for 2-megapixel camera configurations. It runs KEYENCE's icon-driven inspection environment for image acquisition, measurement, judgment and communications; the exact regional 420F hardware must be checked rather than substituted by a similar 422F or higher-camera-capacity controller. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official CV-X intuitive vision systems documentation.
Moore Automated supports exact-item verification and spare-part enquiries for CV-X420F.
No public single-model PDF was located for CV-X420F; use the verified related internal resource before requesting exact documentation, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete CV-X420F identity and compare controller class, supported camera class and inspection platform with the installed design before approving a replacement.
Verify the exact camera model, pixel class, cable, lighting controller, expansion units, network protocol and saved CV-X program. A controller that powers up is not compatible unless the camera and project files are supported.
Back up the inspection program and calibration data, reproduce power and I/O wiring, connect only documented cameras and lighting hardware, restore settings and validate every measurement, output and network handshake.
