Features:
- AutoMax rack communication module
- Allen-Bradley Remote I/O scanner
- Three selectable baud rates
- Up to 32 adapters and 32 logical racks
- Block-transfer support

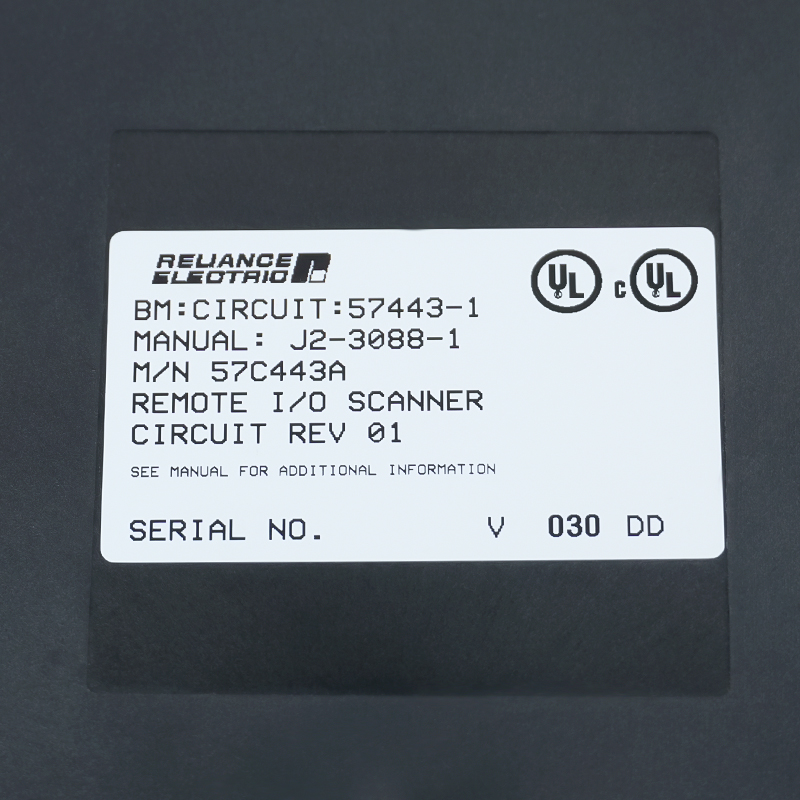

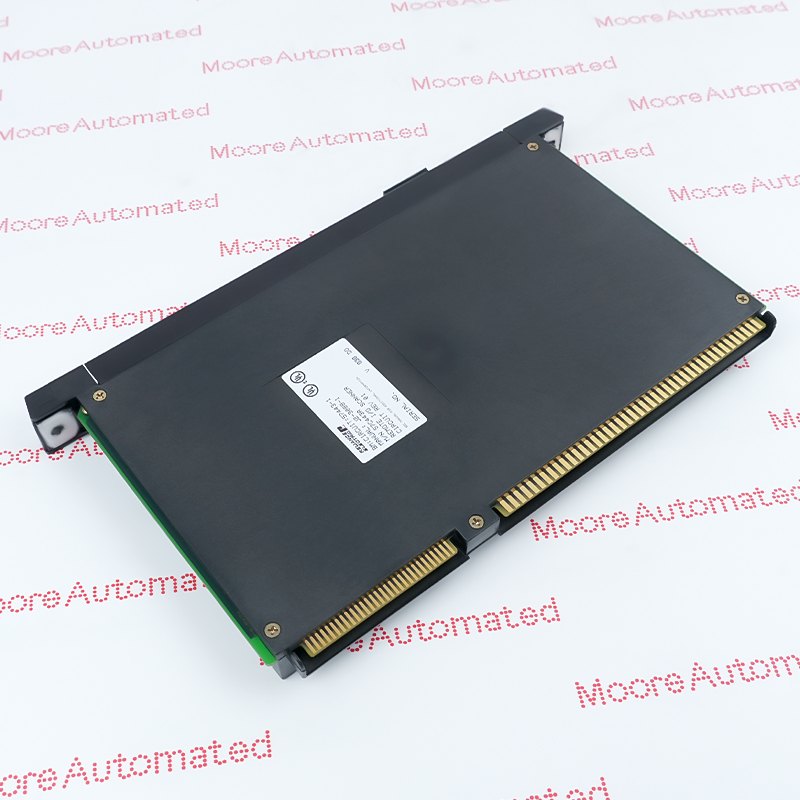

Reliance Electric 57C443A is the revision-A AutoMax A-B Remote I/O Scanner. It exchanges remote rack data through the Allen-Bradley twinaxial remote-I/O network.
The scanner supports multiple addressing modes and block transfers. Baud rate, cable distance, rack number, adapter configuration and termination must be reproduced exactly during replacement.
The Reliance Electric 57C443A may be supplied and supported by Moore Automated according to the stated manufacturer lifecycle and confirmed stock condition.
Reliance Electric 57C443A A-B Remote I/O Scanner Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included with this equipment unless listed in the stock item description. All prices are shown in USD.
Network Capacity:
- 32 maximum adapters
- 32 maximum logical racks
- 48 simultaneous block-transfer requests
Network capacity and cable distance depend on the configured baud rate and the remote rack layout.
Communication Setup:
- 57.6, 115.2 or 230.4 kbit/s
- Two-slot, one-slot or half-slot addressing
- Belden 9463 twinax cable
Set all adapters and the scanner to compatible rack addresses, addressing modes and baud rates.
Installation Limits:
- 0 to 60 °C operation
- 5 to 95% RH non-condensing
- 650 mA at 5 VDC
Verify rack power, cable routing, termination and environmental limits before energizing the scanner.
