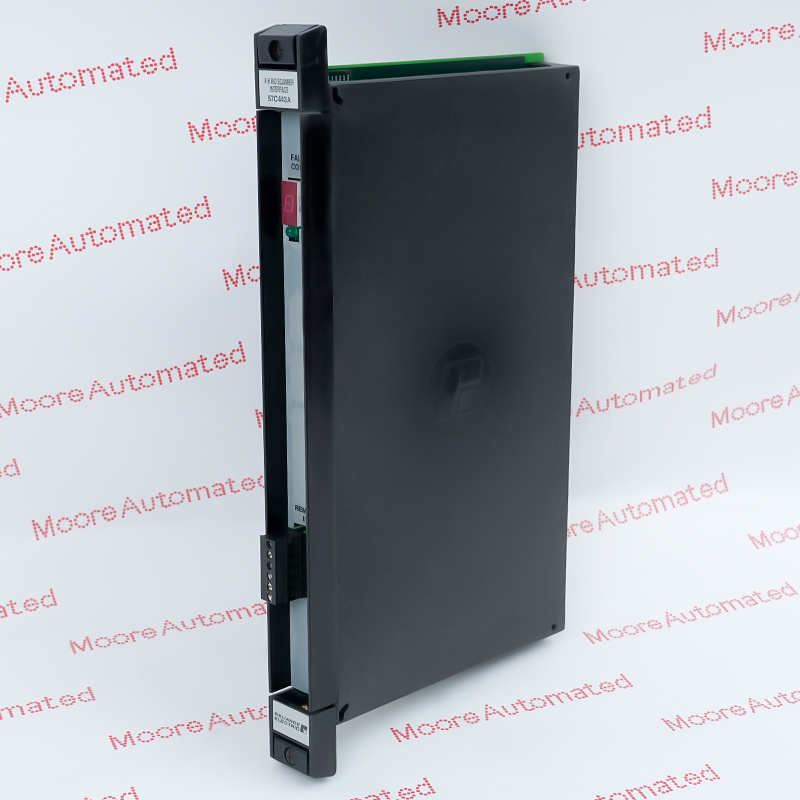

Reliance Electric DCC53120 DCC2000 is a legacy AutoMax DPS encoder feedback assembly. The DCC2000 marking distinguishes this configuration from other DCC53120 variants.
The board supports closed-loop drive feedback and must be matched to the installed regulator, encoder and connector configuration. Exact identification is essential because similar assemblies are not automatically interchangeable.
The Reliance Electric DCC53120 DCC2000 may be supplied and supported by Moore Automated according to the stated manufacturer lifecycle and confirmed stock condition.
Reliance Electric DCC53120 DCC2000 Encoder Feedback Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, licenses and related items are not included with this equipment unless listed in the stock item description. All prices are shown in USD.
Board Identification:
- Assembly DCC53120

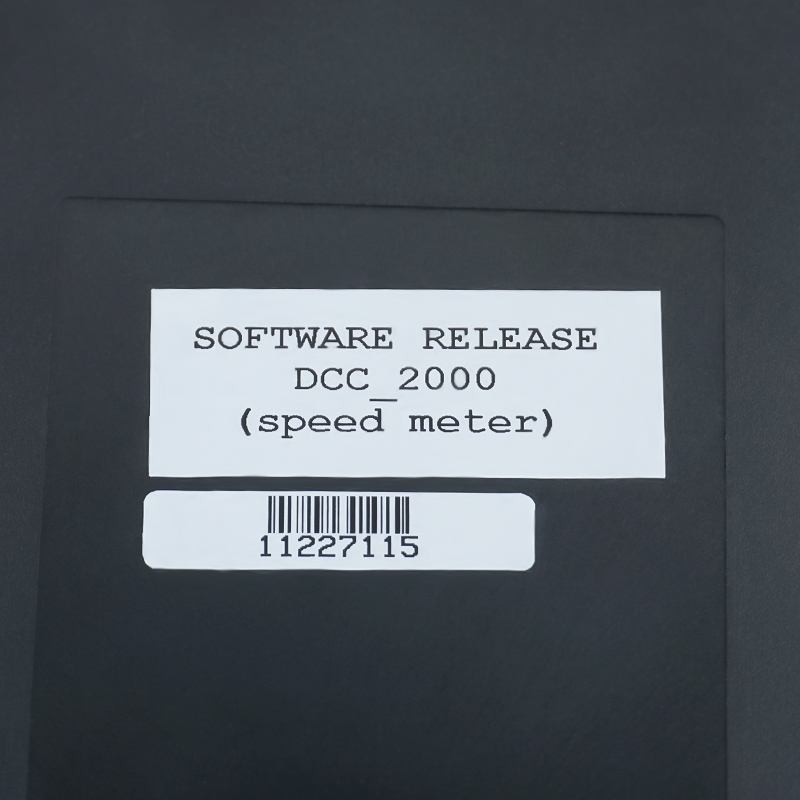

- Configuration DCC2000
- Separate from DCC2102 variant
Confirm every printed identifier and revision before ordering or fitting a replacement.
Drive Feedback Role:
- Encoder interface
- Closed-loop motor feedback
- AutoMax DPS integration
Feedback polarity, signal scaling and regulator parameters must correspond to the installed encoder and application.
Service Checks:
- Power isolated before handling
- ESD-safe board replacement
- Connector and revision verification
After installation, validate feedback direction and scaling before enabling drive operation.
