Features:
- Dual-reference Identity: PN072132P902 and 3D658187G901 remain paired throughout the spare-part enquiry.
- Board-level Scope: The listing concerns a replacement circuit board rather than a complete drive or control system.
- Configuration Matching: Parent equipment, revision and connector records govern replacement selection.

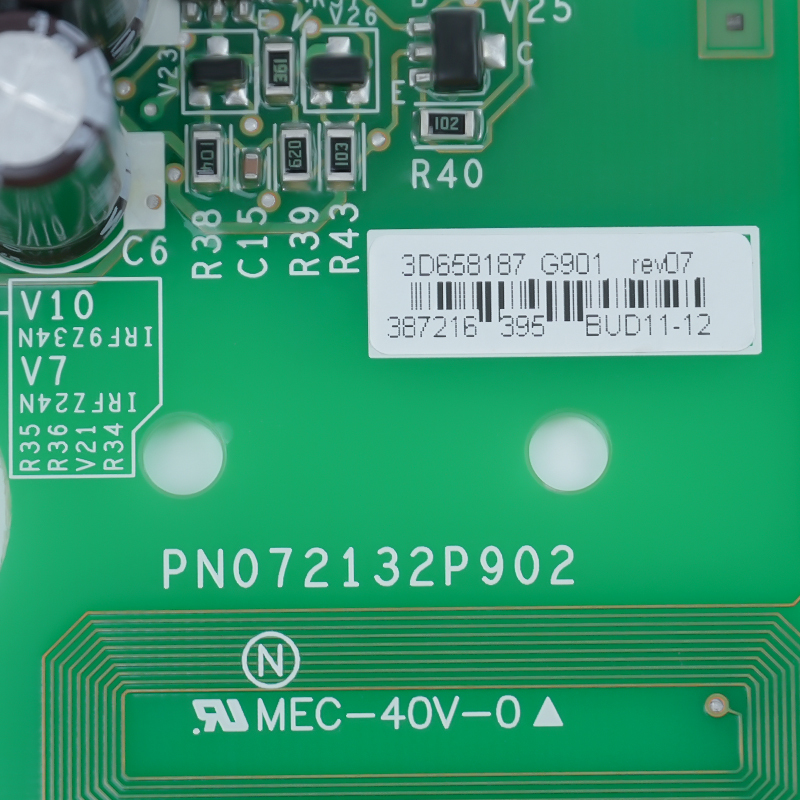

PN072132P902 and 3D658187G901 are the two references supplied for this Schneider Electric replacement-board enquiry. Keeping both references visible helps distinguish the requested board from similarly marked spare parts and prevents a quotation from relying on only one abbreviated code. The scope is a circuit-board spare, not a complete drive, control cabinet or commissioned system. A matching decision should use the installed equipment catalogue number, board revision and connector arrangement as well as the two printed references. No voltage, current, power or universal drive-compatibility claim is made without an exact manufacturer cross-reference.
Before ordering, identify whether the original assembly has configuration devices, plug-in accessories or programmed components that must remain matched to the equipment. The quotation should describe which items are actually supplied and what checks are included. A visually similar board or shared number prefix is not evidence of interchangeability. Where the exact English manufacturer manual is unavailable, use the original equipment records to establish the spare-part mapping before installation; neighbouring-model electrical data must not be substituted.
Technical source: Exact-model manufacturer electrical ratings and drive cross-reference have not been verified; no neighbouring-model values are used.. Match the complete ordering code and supplied execution.
PN072132P902 3D658187G901 documentation and product-selection resources. An exact-model English PDF is not currently attached.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Keep PN072132P902 and 3D658187G901 together when comparing the original assembly with the supplied replacement. Do not drop characters or treat a common prefix as a complete match.
Compare connector labels, pin arrangements and fitted accessories with the original board. Mechanical similarity alone cannot establish electrical compatibility.
The parent equipment catalogue number and service documentation are needed to establish fit. No blanket compatibility with an entire drive series is claimed for this reference.
