Features:

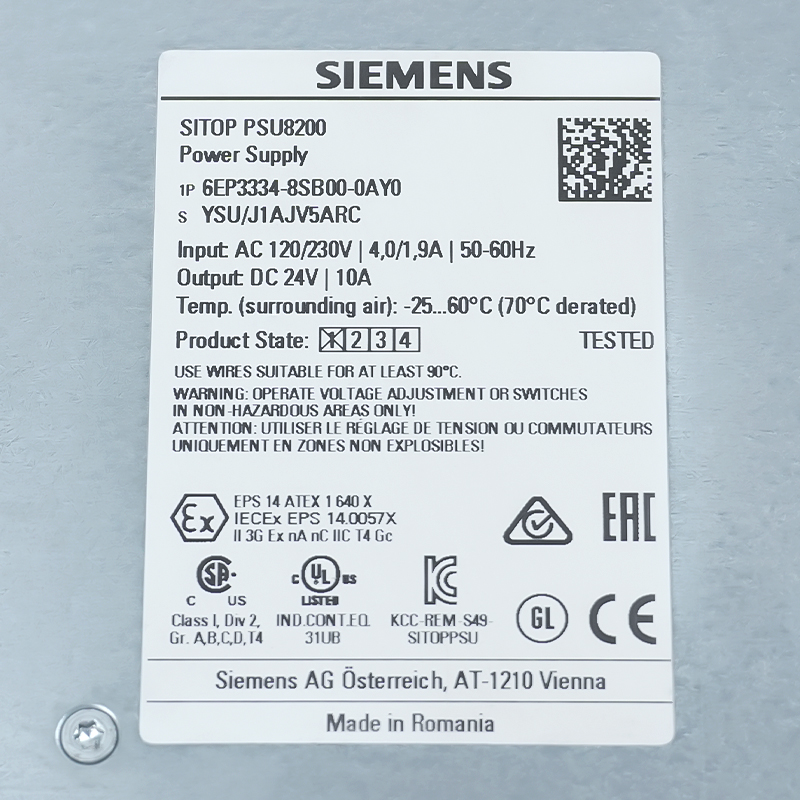

- 6EP3334-8SB00-0AY0 is identified by rated output 24 VDC, 10 A within the documented SITOP PSU8200 one-phase power supplies configuration.
- The official specification gives rated input as 120/230 VAC, which must be retained during selection.
- Commissioning must also preserve supply type (One-phase stabilized power supply) and the stated connection limits.
An active SITOP PSU8200 stabilized supply with 120/230 VAC input and 24 VDC 10 A output. The one-phase unit is designed for regulated industrial control power and must be selected by its complete 6EP article number, terminal arrangement and load requirement. Selection must preserve the complete label identity, connected-equipment compatibility and manufacturer installation limits.
Manufacturer reference: official SITOP PSU8200 one-phase power supplies documentation.
Moore Automated supports exact-item verification and spare-part enquiries for 6EP3334-8SB00-0AY0.
Siemens 6EP3334-8SB00-0AY0 24 VDC 10 A stabilized power supply manual PDF, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Confirm the complete 6EP3334-8SB00-0AY0 identity and compare rated output, rated input and supply type with the installed design before approving a replacement.
Calculate the 24 VDC load and inrush, verify 120/230 VAC supply, upstream protection, DIN-rail space, conductor size and any SITOP redundancy or selectivity modules connected to the supply.
Provide Siemens-specified clearance and ventilation, install the required input protection, bond protective earth, torque input/output terminals and confirm regulated 24 V output at operating load.
