      Siemens 6AV6647-0AG11-3AX0
      Siemens 6AV6647-0AG11-3AX0
      Siemens 6AV6647-0AG11-3AX0
      Siemens 6AV6647-0AG11-3AX0
      Siemens 6AV6647-0AG11-3AX0
      Siemens 6AV6647-0AG11-3AX0

      • ISO 9001:2015 Certified

        Our quality management system covers sourcing,testing and dispatch

      • View Our Success Stories

        Real stories from real customer orders
      In Stock

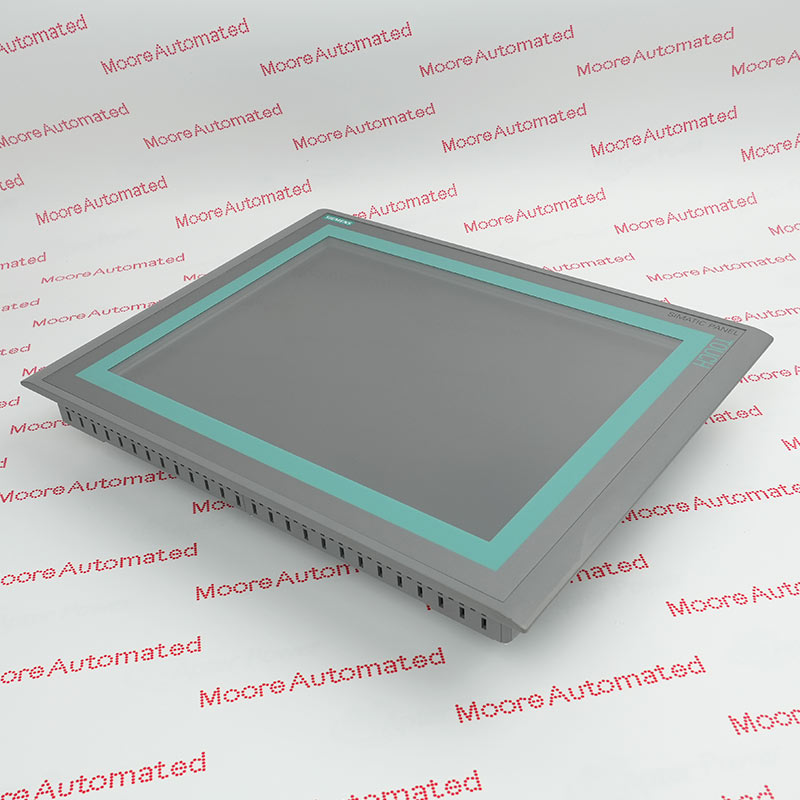

      Basic Panel module

      6AV6647-0AG11-3AX0

      Spare Part Number

      PN6AV6647-0AG11-3AX0

      Product Information:

      SIMATIC HMI TP1500 Basic Color PN,

      Basic Panel, Touch operation, 15"

      TFT display, 256 colors, PROFINET

      interface, configurable as of WinCC

      flexible 2008 SP2 Compact

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
      Technical specifications for

      6AV6647-0AG11-3AX0

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        Siemens
      • Product Category:
        HMIs and Displays
      • Spare Part Number:
        6AV6647-0AG11-3AX0
      • Estimated shipping dimensions:
        53.00 x 40.50 x 17.50 cm
      • Weight:
        4.72 kg
      • Tariff Code:
        8537101190
      • Country of origin:
        Germany
      • Place of shipment:
        Xiamen, Fujian, China
      • Product type designation:
        TP1500 Basic color PN
      • Rated value (DC):
        24 V DC
      • Current consumption (rated value):
        0.8 A
      • Active power input, typ.:
        20 W
      • Processor type:
        RISC 32 bit
      • Memory available for user data:
        2 Mbyte
      • Degree and class of protection IP (at the front):
        IP65
      • Ambient temperature during operation:
        0 °C to 50 °C
      • Operation, max.:
        90 %; no condensation
      • Product Type:
        SIMATIC HMI TP1500
      • Series:
        Siemens Simatic HMI
      • Stock Availability:
        30
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      6AV66470AG113AX0 6AV6647 0AG11 3AX0

      Manuals

      PRODUCT & ORDER FAQS

      Questions buyers ask about 6AV6647-0AG11-3AX0

      • What specific HMI class and designation does 6AV6647-0AG11-3AX0 represent within the SIMATIC family, and what role does it fulfill in automation interfaces?

        The 6AV6647-0AG11-3AX0 is designated as a SIMATIC HMI TP1500 Basic Color PN Basic Panel, a 15-inch color touch operator interface used for graphical process visualization, parameter editing, and operator control in industrial systems via a touch-activated TFT display.

      • What display technology and image fidelity does 6AV6647-0AG11-3AX0 employ, and how does this impact operator perception?

        The 6AV6647-0AG11-3AX0 utilizes a 15-inch TFT LCD display with a 1024 × 768 pixel resolution and 256 distinct colors, providing high-clarity visualization of process graphics, alarms, and trends compared to monochrome or lower-resolution panels.

      • How does 6AV6647-0AG11-3AX0 handle user interaction, and what is the type of touch technology implemented?

        User interaction on 6AV6647-0AG11-3AX0 is facilitated through an analog-resistive touch screen, allowing intuitive finger or stylus input for navigation, setpoint adjustments, and soft-key activation directly on the display surface.

      • What communication interface does 6AV6647-0AG11-3AX0 provide for PLC connectivity, and how is integration accomplished?

        The 6AV6647-0AG11-3AX0 integrates a PROFINET industrial Ethernet interface, enabling seamless, high-speed data exchange with Siemens PLCs (e.g., S7-1200/S7-1500) and other PROFINET-capable devices in automated control networks.

      • What ambient and mechanical installation parameters are defined for 6AV6647-0AG11-3AX0 to ensure reliable service life?

        The 6AV6647-0AG11-3AX0 is optimized for vertical installation only and supports a permissible inclination of up to 35° without external ventilation. Its construction accommodates industrial ambient conditions typical for operator panels, significantly enhancing ergonomic deployment.

      • What software toolchains and configuration platforms support 6AV6647-0AG11-3AX0 project development and deployment?

        Programming and screen development for 6AV6647-0AG11-3AX0 are supported using WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, or STEP 7 Basic V10.5, enabling intuitive creation of HMI screens, tag mapping, alarms, recipes, and diagnostics.
