Features:
- Sixteen sink/source inputs expand the available 24 V DC field-signal count on an S7-22X station.
- Sixteen sourcing transistor outputs provide fast DC switching without the contact behavior of relay variants.
- Plug-in I/O terminals support service replacement after supply groups, commons and channel assignments are recorded.

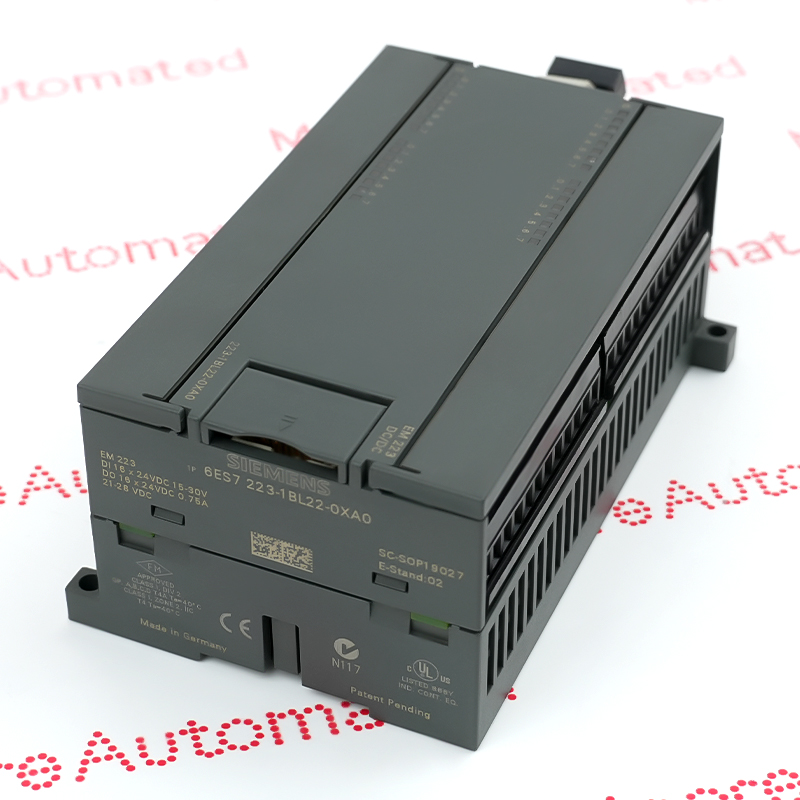

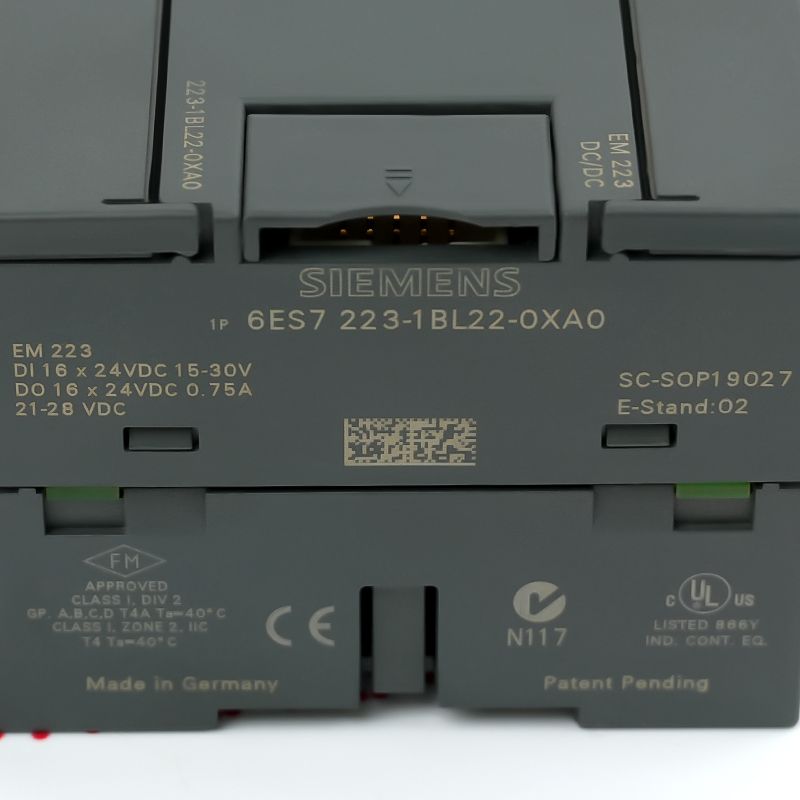

The Siemens 6ES7223-1BL22-0XA0 is a SIMATIC S7-200 EM 223 digital expansion module for S7-22X CPUs. It adds 16 sink/source 24 V DC inputs and 16 sourcing 24 V DC transistor outputs rated 0.75 A per channel.
Manufacturer reference: Siemens English product data sheet for 6ES7223-1BL22-0XA0 and the S7-200 system manual.
Exact-model verification and sourcing support are available for 6ES7223-1BL22-0XA0.
Siemens 6ES7223-1BL22-0XA0 official documentation and relevant product resources, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Preserve the sixteen input and sixteen output addresses used by the Micro/WIN project. Record the terminal assignment, input commons and all four output supply groups before the original module is removed.
Each sourcing output is rated 0.75 A, with a 3 A limit per group. There is no internal short-circuit protection, so branch protection, inductive-load suppression and inrush current require external engineering.
The EM 223 connects only to the documented S7-22X CPU family. Confirm available 5 V backplane current, physical expansion position, neighboring modules and the complete saved configuration before installation.
