Features:

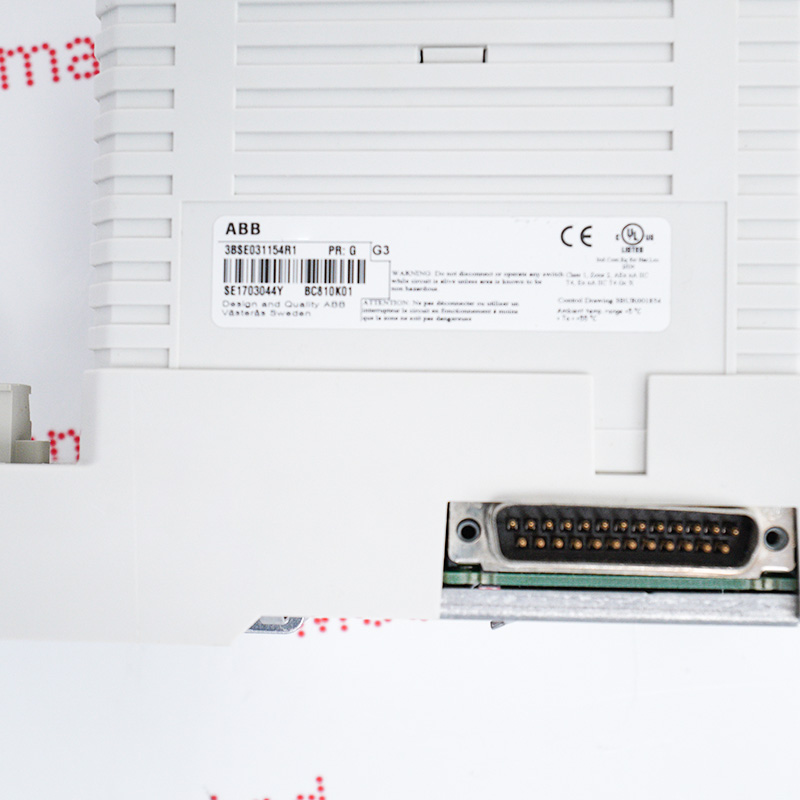

- ABB article 3BSE031154R1 identifies BC810K01 as a CEX-Bus interconnection unit.
- System role: connects and segments the documented redundant AC 800M CEX-Bus.
- Compatibility is controlled by the complete article, installed position, connectors and approved project record.
BC810K01 3BSE031154R1 must remain matched to ABB AC 800M and System 800xA control systems. Record the receiving equipment, connector assignment and installed settings before removal.
After installation, verify power and diagnostics first, then prove communication or I/O status and the assigned function under a controlled test before process release.
Documentation rule: use only an exact-model official English PDF when one is available. Unverified nearby-model ratings are withheld.
BC810K01 3BSE031154R1 technical documentation and verified Moore Automated resources.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This CEX-Bus interconnection unit connects and segments the documented redundant AC 800M CEX-Bus. Match the complete ABB identity and receiving-equipment record before installation.
Keep BC810K01 on the documented signal, bus or power path. Preserve connector orientation, installed position and approved settings.
After replacement, compare diagnostics with the saved baseline and prove the assigned CEX-Bus interconnection unit function under controlled test conditions.
