Features:
- Monitored Guarded Output Module for the documented ICS Triplex safety automation.

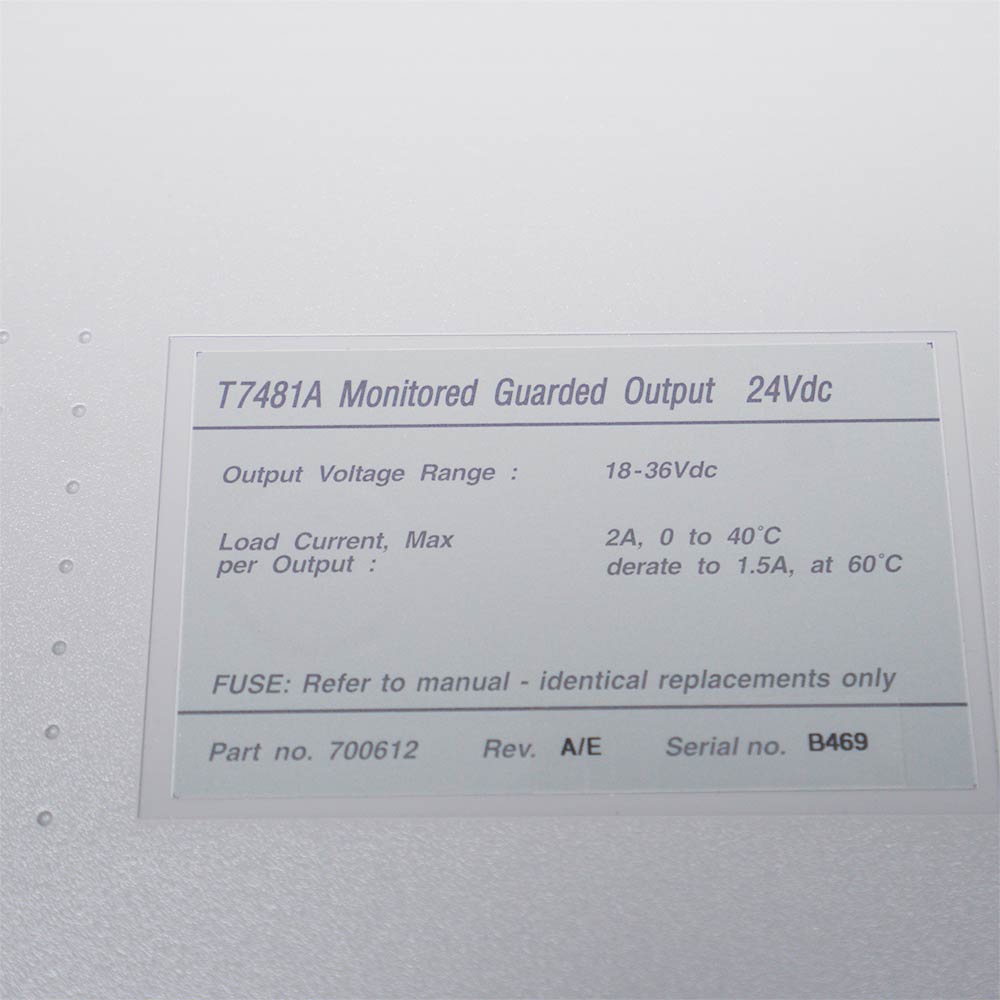

- Voltage Range: 18 to 36 VDC.
- Frequency: N/A.

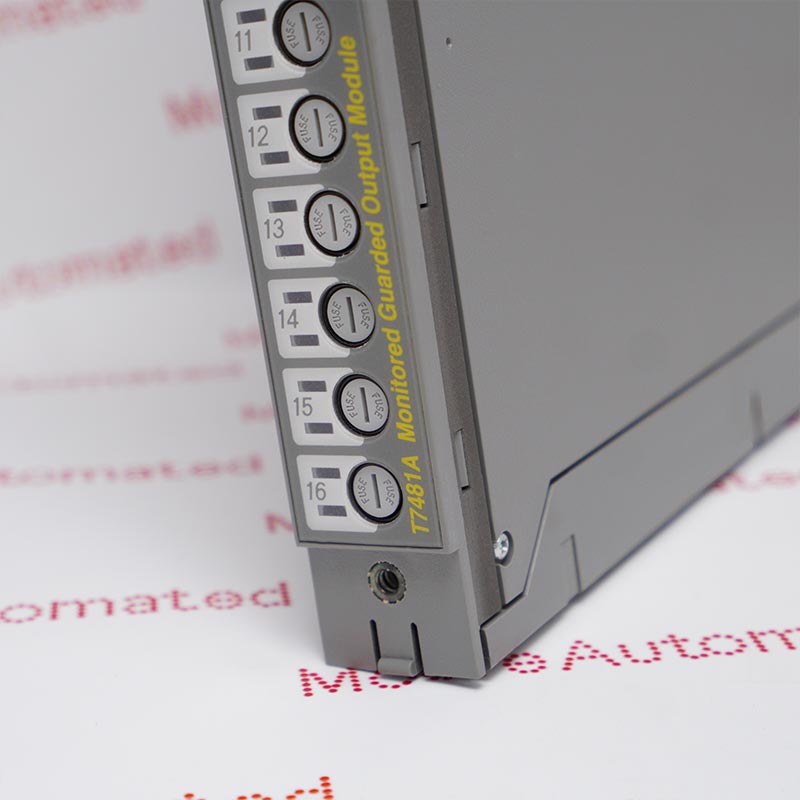

T7481A belongs to the ICS Triplex safety automation and performs the documented monitored guarded output module role in the ICS Triplex safety and critical-control platform. The retained technical evidence records Voltage Range: 18 to 36 VDC; Frequency: N/A; Load Current: 2 amp or 1.5 amp. The full marking, receiving hardware, connectors or terminals, configuration dependencies and installed position must be matched before substitution.
For installation, retain the ICS Triplex safety automation receiving position, connector or terminal arrangement and configuration record. After power restoration, review diagnostics and test the affected operating path before process release.
The T7481A Monitored Guarded Output Module is supplied only after the complete hardware identity, condition and current OEM lifecycle status have been confirmed.
ICS Triplex T7481A Monitored Guarded Output Module Manual(Datasheets), Link
Important Notice: The linked document or internal product-family information must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement. Accessories, cables, software and certificates are included only when stated in the quotation. All prices are shown in USD.
Channel Setup: T7481A performs the monitored guarded output module function within the ICS Triplex safety automation. The retained documentation identifies voltage range as 18 to 36 VDC; apply that value only to this documented execution.
Match the complete label, hardware form and functional position before transferring any setting, cable or termination from the removed unit.
Rack Review: approve T7481A only for the documented ICS Triplex safety and critical-control platform. Compare rack, carrier or panel generation, connector keying, terminal numbering and all paired assemblies with the installation drawings.
Photograph both sides and the installed position before removal so revision markings, jumpers, addressing and channel allocation can be reconstructed accurately.
Startup Checks: isolate the equipment, remove stored energy and inspect the receiving hardware before installing T7481A.
Restore power in the approved sequence, review status and diagnostics, then test every affected control, signal, relay, communication, protection or monitoring path against the commissioning record.
