Features:
- AO810V2 8-channel analog output module
- 3BSE038415R1 ABB S800 I/O
- The V2 hardware supplies process setpoints to field devices through an S800 station

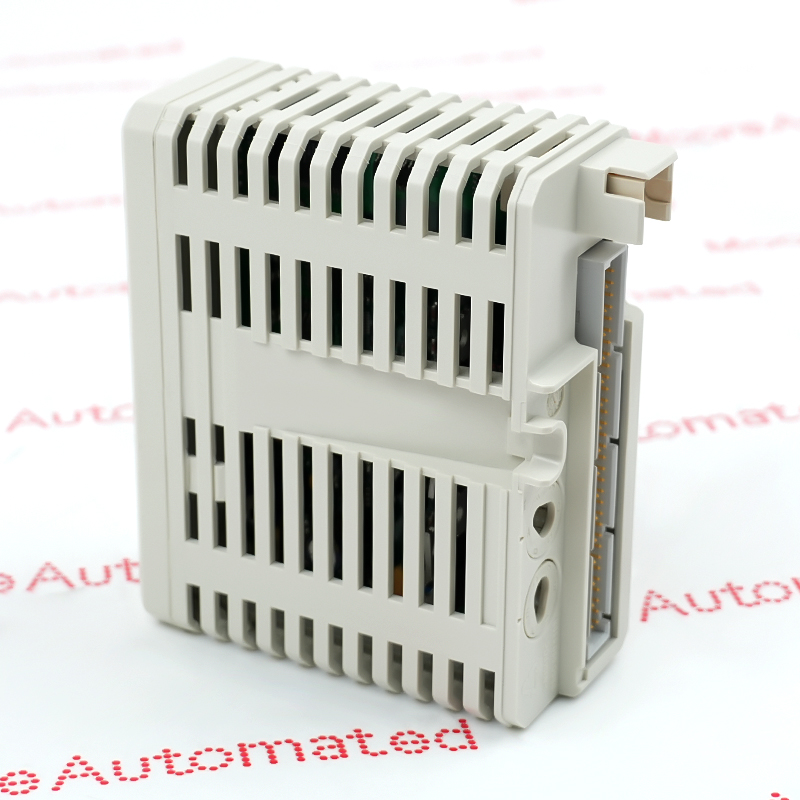

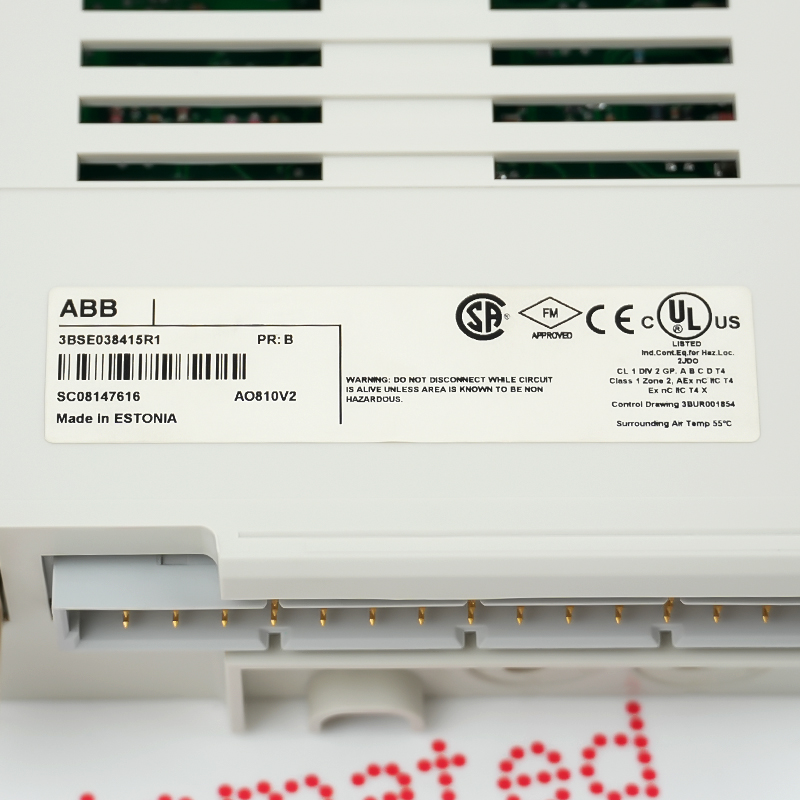

The ABB AO810V2 3BSE038415R1 is a 8-channel analog output module in the ABB S800 I/O. The manufacturer specifies it provides eight configurable 0/4-20 mA current output channels. The V2 hardware supplies process setpoints to field devices through an S800 station. Its ordering identity combines AO810V2 with 3BSE038415R1; both references should be checked when selecting a replacement. Engineering confirmation should also cover AO810V2 hardware identity, current range, load resistance and TU8xx termination unit and the installed base or terminal hardware before the unit is placed into service.
Values are based on the manufacturer's official ABB S800 I/O documentation. Final selection must be verified against the complete article number and installed configuration.
The ABB AO810V2 3BSE038415R1 8-channel analog output module is supported by Moore Automated for verified industrial replacement and spare-part requirements.
ABB AO810V2 3BSE038415R1 8-channel analog output module manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
AO810V2 3BSE038415R1 should be engineered using the official ABB S800 I/O documentation, with the stated 0/4-20 mA current outputs matched to the configured signal path.
Before installation, confirm AO810V2 hardware identity, current range, load resistance and TU8xx termination unit, the associated base or terminal hardware, and the field-side electrical conditions shown in the manufacturer's instructions.
Use the complete article number when comparing units. Channel configuration, connected equipment and any safety or communication requirements must remain consistent with the verified design.
