Features:
- The documented signal specification is 24...110 V d.c. / 250 V a.c. (max 2 A), and this value must match the supplied unit.
- The documented number of channels is 8, and this value must match the supplied unit.
- The documented signal type is Relay (NO), and this value must match the supplied unit.

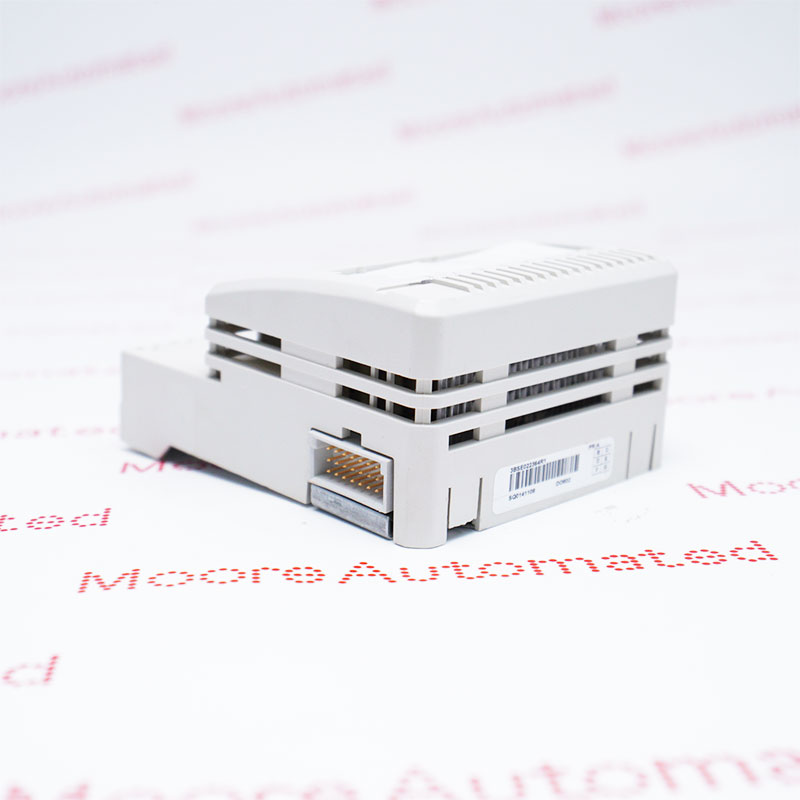

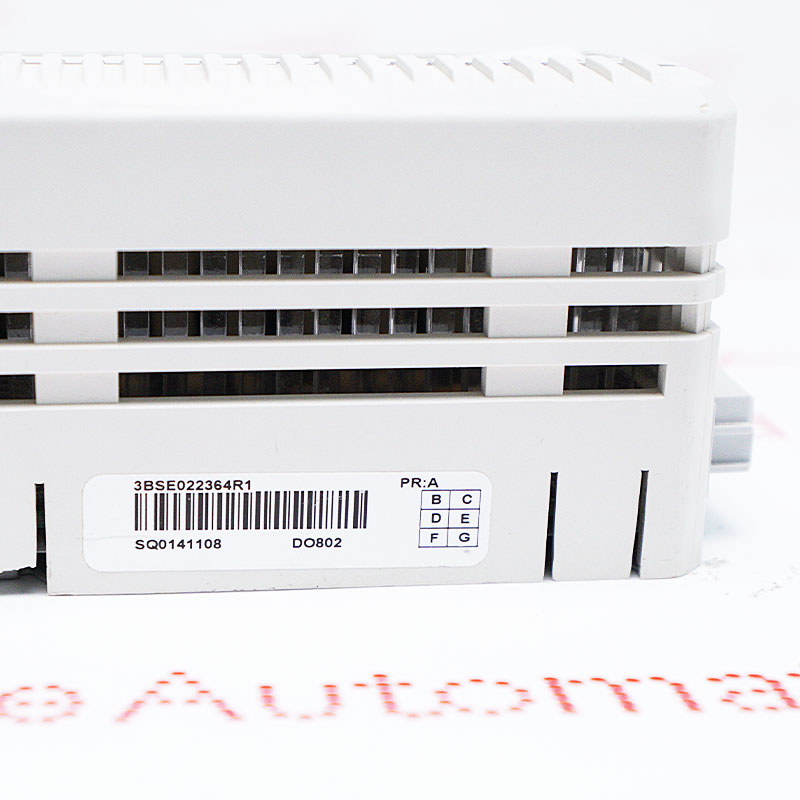

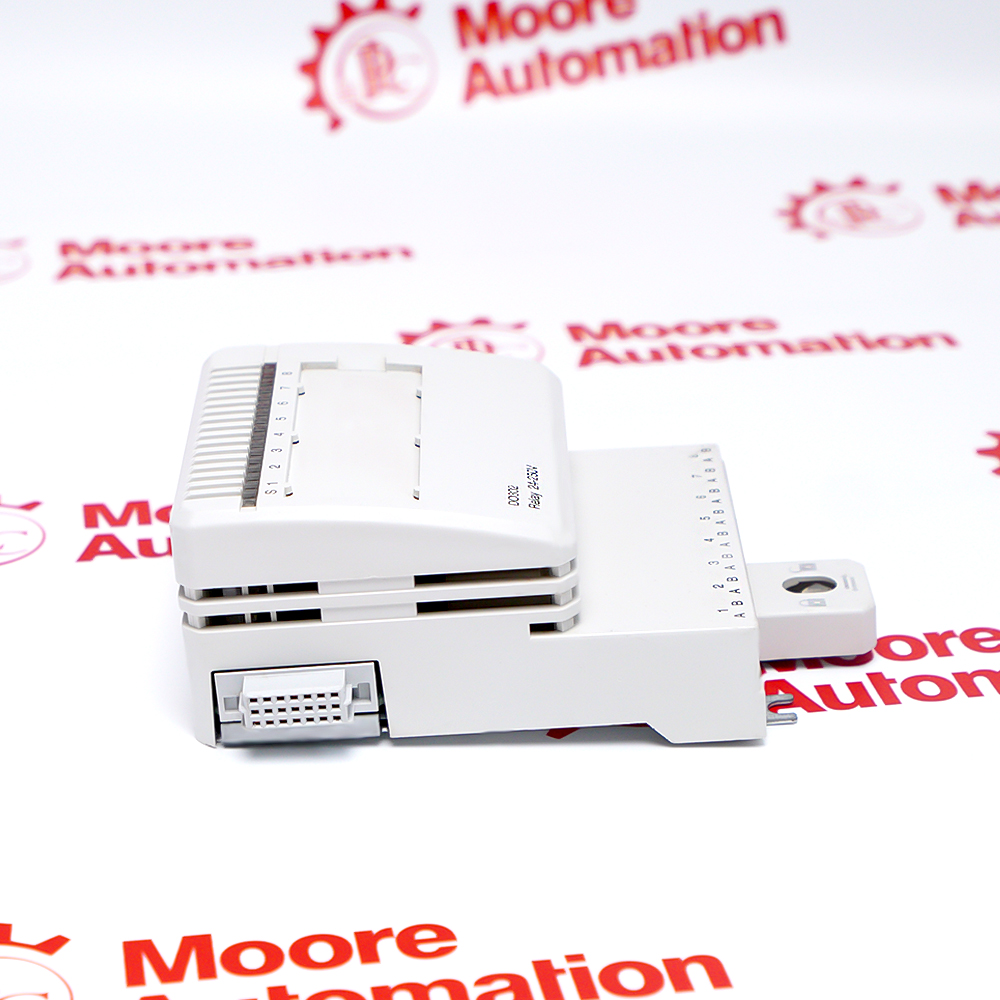

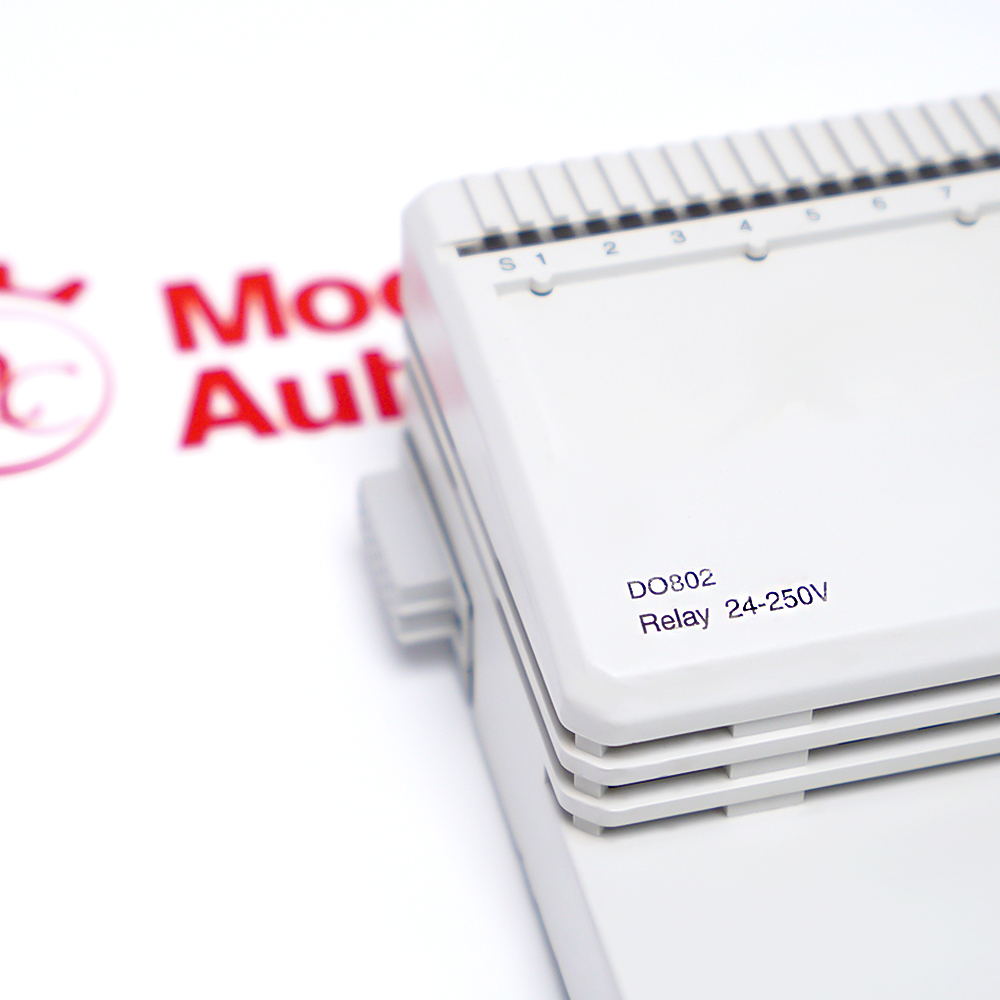

DO802 is an ABB digital output module selected by its complete product identity and documented equipment role. Its verified data includes Signal specification 24...110 V d.c. / 250 V a.c. (max 2 A); Number of channels 8; Signal type Relay (NO); Redundancy No; Isolation Individually isolated, channel-to-channel and to circuit common. Correct selection depends on the installed hardware, interfaces and approved system configuration rather than appearance alone.
Before installing DO802, record the original nameplate, installed position, connected assemblies and relevant settings. Compare the supplied unit with the approved ABB documentation, isolate affected energy sources and complete controlled functional checks before returning the equipment to service.
The DO802 ABB Digital Output Module is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB DO802 documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
DO802 performs the documented digital output module function within the Advant S800 I/O platform. Verified product data includes Signal specification 24...110 V d.c. / 250 V a.c. (max 2 A); Number of channels 8; Signal type Relay (NO); Redundancy No; Isolation Individually isolated, channel-to-channel and to circuit common; Rated insulation voltage 250 V. These values and the complete hardware revision must match the supplied unit.
Integrate DO802 only with the approved Advant S800 I/O receiving hardware, connector or terminal arrangement and paired assemblies. Preserve all recorded settings, then verify each affected interface and diagnostic path after installation.
Before energizing DO802, inspect mounting, connector keying, wiring allocation, protective grounding and connected equipment. Review status indications and diagnostics, then complete controlled functional tests before service release.
