Features:

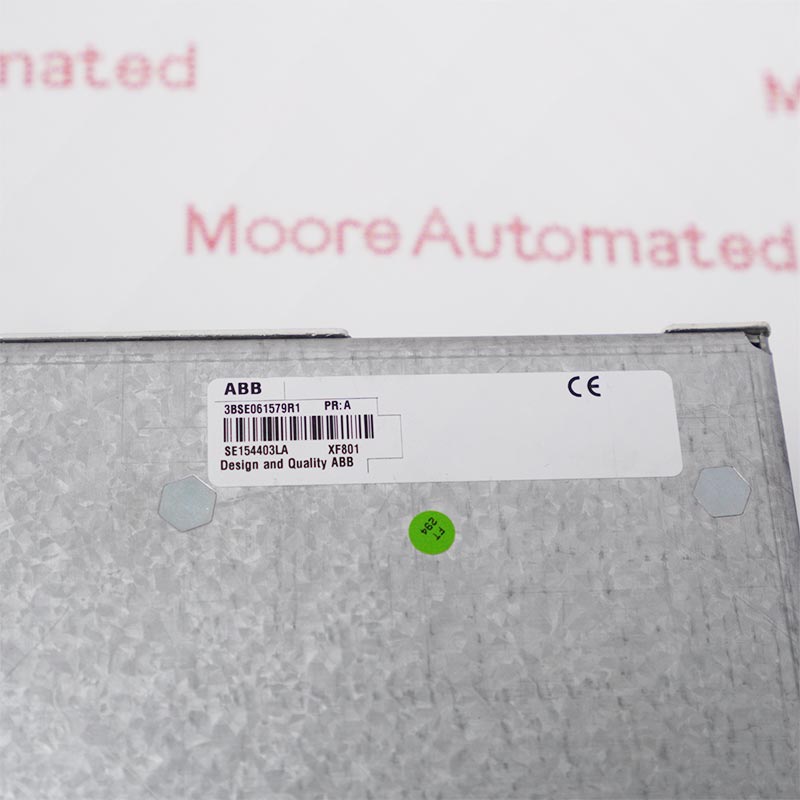

- ABB article 3BSE061579R1 identifies XF801 as a fast I/O module for PEC3 controllers with 16 input and 16 output channels.
- Confirm article 3BSE061579R1, XF801 designation, PEC3 controller compatibility, connector pinout, channel assignment, signal levels and application configuration.
- Use XF801 only in the documented PEC3 control system position whose fast-input and fast-output assignments match this exact module.
XF801 3BSE061579R1 must be matched to the receiving equipment and project record. Isolate field and controller power, label all connectors, use ESD precautions and preserve channel, grounding and cable-shield assignments. Verify PEC3 recognition, every assigned input and output, signal timing, interlocks and the application response before enabling the controlled equipment.
Official source: official ABB XF801 product PDF. Values not tied to the exact official source are withheld.
XF801 3BSE061579R1 official technical documentation and verified Moore Automated resources.
Important Notice: Confirm the complete model, article number and installed configuration before replacement. All links open in a new page.
Confirm all 16 input and 16 output assignments and signal levels.
Match controller hardware, application configuration, connectors and grounding.
Prove I/O state, timing, interlocks and application response before service.
