Features:
- The documented channels is 8, and this value must match the supplied unit.
- The documented voltage is 250 V, and this value must match the supplied unit.
- The documented mounting is Both directions, and this value must match the supplied unit.

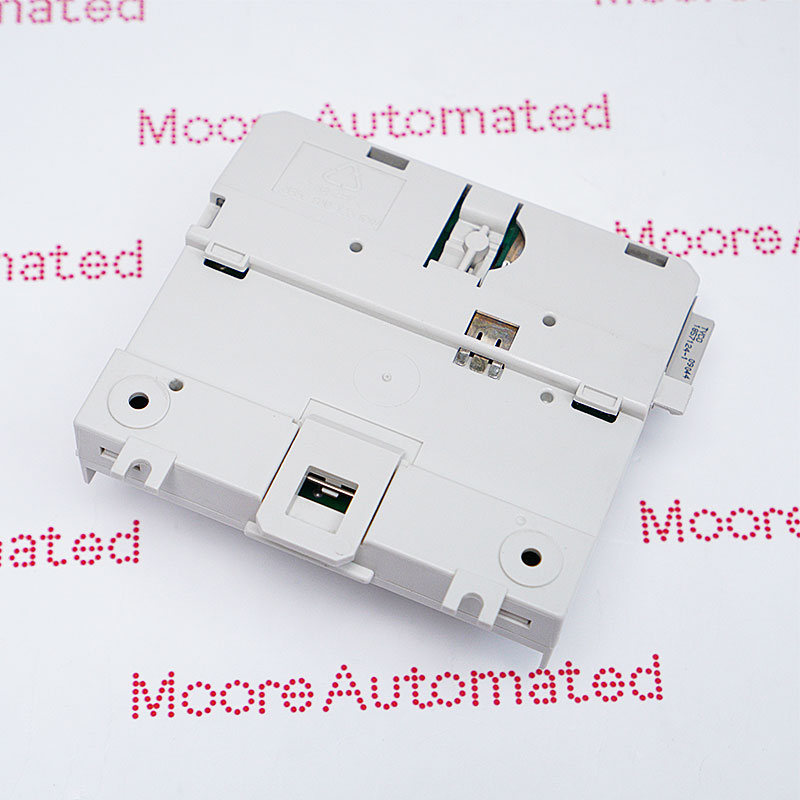

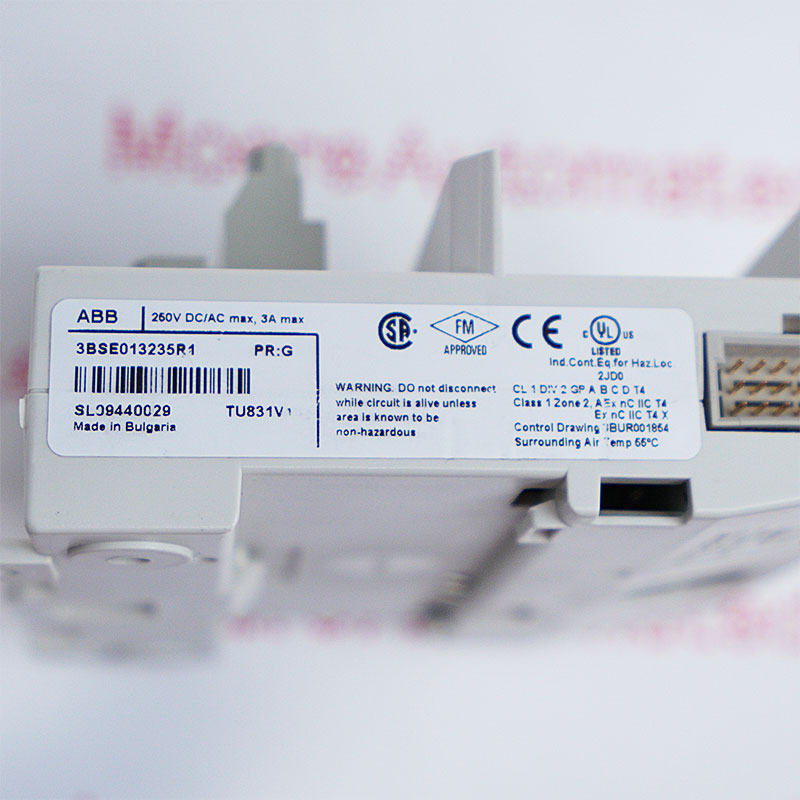

TU831V1 3BSE013235R1 is an ABB module termination unit selected by its complete product identity and documented equipment role. Its verified data includes Channels 8; Voltage 250 V; Mounting Both directions; Mounting detail 55 ºC (131 °F); Single/redundant I/O Single. Correct selection depends on the installed hardware, interfaces and approved system configuration rather than appearance alone.
Before installing TU831V1 3BSE013235R1, record the original nameplate, installed position, connected assemblies and relevant settings. Compare the supplied unit with the approved ABB documentation, isolate affected energy sources and complete controlled functional checks before returning the equipment to service.
The TU831V1 3BSE013235R1 ABB Module Termination Unit is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB TU831V1 3BSE013235R1 documentation and reference links.
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
TU831V1 3BSE013235R1 performs the documented module termination unit function within the Advant S800 I/O platform. Verified product data includes Channels 8; Voltage 250 V; Mounting Both directions; Mounting detail 55 ºC (131 °F); Single/redundant I/O Single; Maximum current per I/O channel 3 A. These values and the complete hardware revision must match the supplied unit.
Integrate TU831V1 3BSE013235R1 only with the approved Advant S800 I/O receiving hardware, connector or terminal arrangement and paired assemblies. Preserve all recorded settings, then verify each affected interface and diagnostic path after installation.
Before energizing TU831V1 3BSE013235R1, inspect mounting, connector keying, wiring allocation, protective grounding and connected equipment. Review status indications and diagnostics, then complete controlled functional tests before service release.
