Features:
- 16 digital input channels
- 48 V DC input application
- Rack I/O expander bus communication
- Compatible termination hardware
The

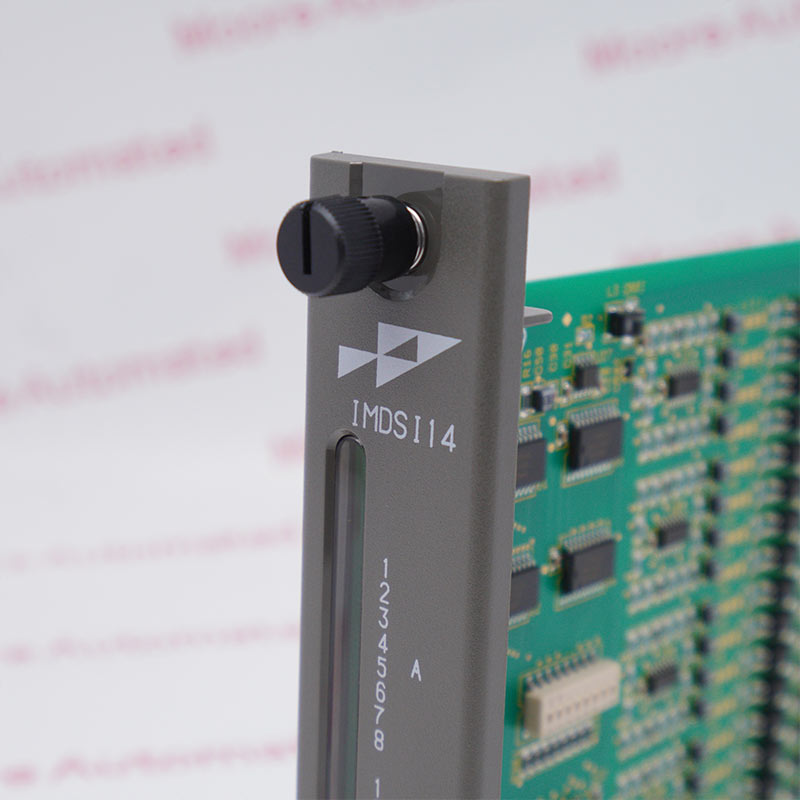

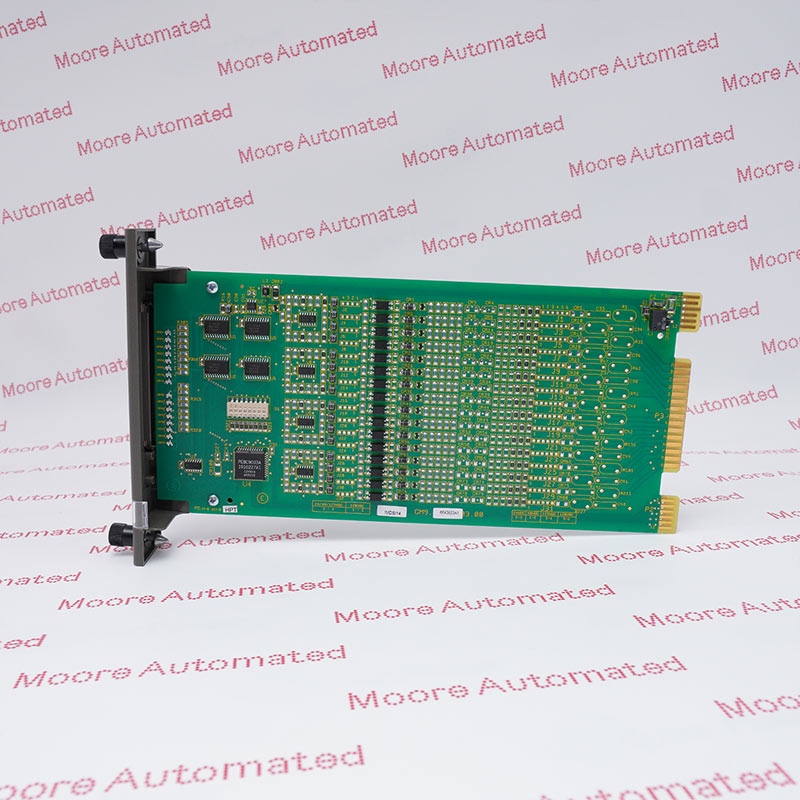

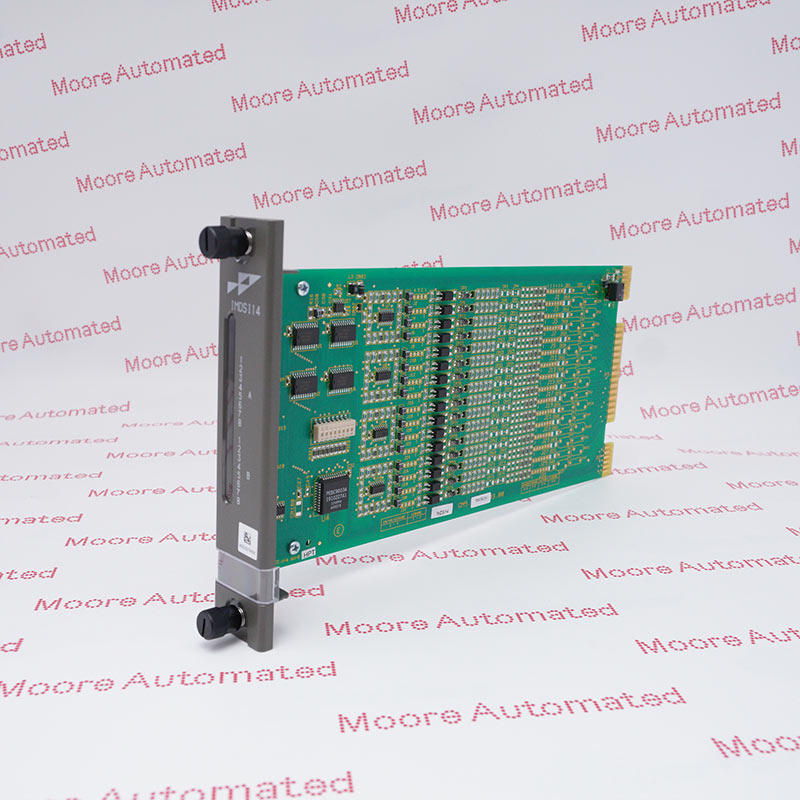

ABB IMDSI14 is a 16-channel digital input module in the Harmony Rack I/O family. It monitors discrete 48 V DC field states and transfers them to the control system. Its ordering identity should be checked exactly against the installed module before procurement.
ABB documentation identifies 16 digital input channels, 48 v dc input application, rack i/o expander bus communication. Use the approved rack position, termination hardware, power arrangement, and system configuration specified for the application.
The ABB IMDSI14 is a legacy ABB module. Moore Automated can support replacement and spare-part requirements; the documented evolution reference is SPDSI22 or SD DI04, subject to application verification.
ABB IMDSI14 16-Channel Digital Input Module Manuals(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
I/O Characteristics
ABB IMDSI14 monitors discrete 48 V DC field states and transfers them to the control system. Official ABB documentation identifies 16 digital input channels, 48 v dc input application, rack i/o expander bus communication.
Installation Notes
Match the complete IMDSI14 order identity with the installed ABB rack, backplane, termination unit, field signal, power supply, and engineering configuration. Commission the replacement only after wiring and channel assignments have been verified.
Lifecycle Guidance
Obsolete/Discontinued by OEM. The official evolution reference is SPDSI22 or SD DI04; final selection requires application-specific verification. Moore Automated supplies high-quality ABB replacement modules and spare parts to help reduce customer downtime.
