Core Technical Specifications
Features:
- 16 independent digital output channels
- Open Collector design, providing high flexibility when interfacing with a variety of external switching frameworks
- Specifically engineered to switch 24 VDC and 48 VDC external load voltages

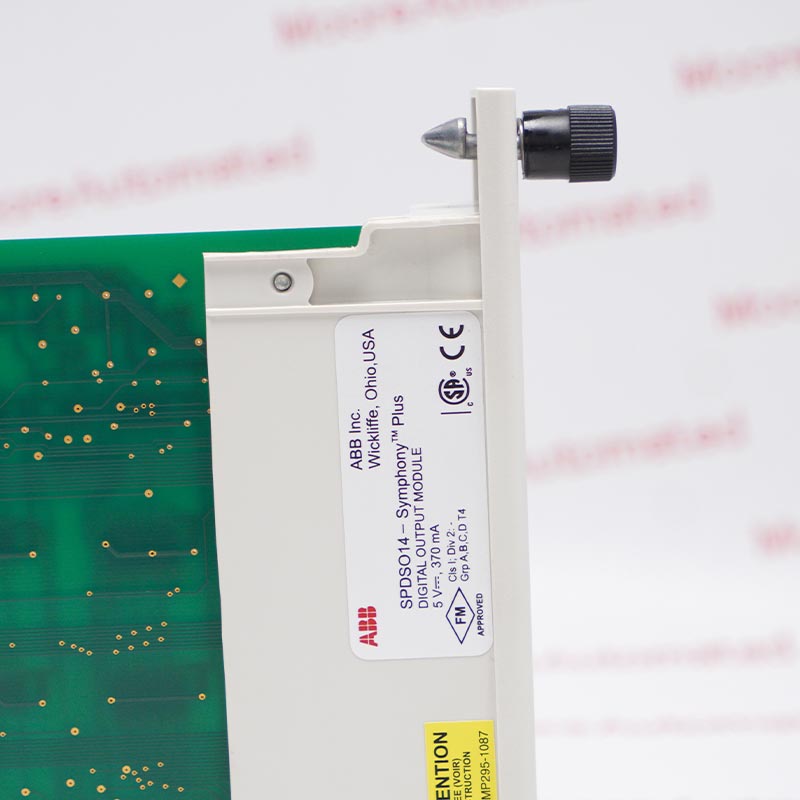

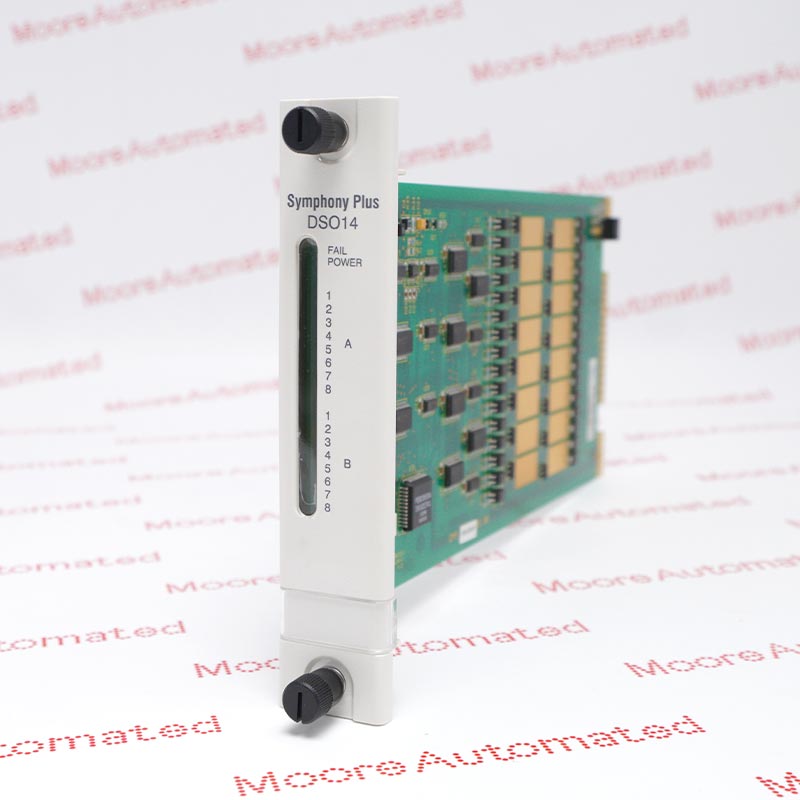

The ABB SPDSO14 is a high-performance, high-density digital output (DO) slave module designed by ABB specifically for Symphony Plus control systems and Harmony rack-mount I/O systems. Fully backward compatible with existing INFI 90 OPEN strategic enterprise management systems, this module typically operates as a rack-mount slave, designed to establish a secure and reliable binary signal control path between distributed control system (DCS) controllers and external industrial field devices.

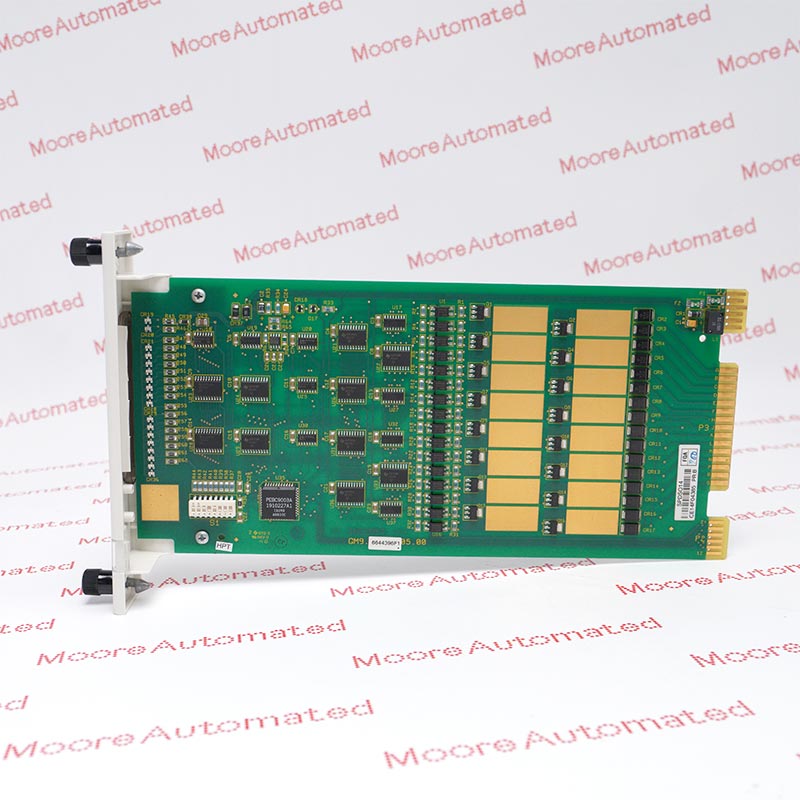

In terms of functionality and hardware compatibility, the SPDSO14 module integrates 16 independent digital output channels with a highly flexible open-collector circuit configuration. Each channel features independent electrical isolation (optical isolation) protection, effectively preventing external field voltage spikes from interfering with the control system's internal logic network. Furthermore, the module can be connected via dedicated cables to solid-state relays on the NTDO02 terminal unit or to other relay components to drive conventional electromechanical relays, solenoid valves, actuators, and various indicator loads, demonstrating excellent application compatibility in multi-voltage process control environments.
The SPDSO14 ABB Digital Output Slave Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB SPDSO14 Digital Output Slave Module Manuals/Datasheets/Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This module operates as a slave component within the internal rack topology:
Extended Bus Connection: The card connects to the I/O extended bus via its rear edge connector, continuously polling command words from the master controller (e.g., SPBRC410).
Terminated Panel Interface: External field signals are rarely directly connected to the card. Typically, a multi-pin flat cable exits from the rack slot to a separate terminal block assembly (most commonly ABB NTDI01), where the field physical wiring is terminated.
Number of Channels: 16 independent digital output channels.
Output Configuration: Open collector design for high flexibility when connecting to a variety of external switching frames.
Voltage Compatibility: Designed for switching 24VDC and 48VDC external load voltages.
Current Capacity: Powerful drive capability, each channel is rated to handle up to 2A of continuous current.
Electrical Safety: Tight electrical isolation between the digital control logic on the backplane side and the high-voltage field-side circuitry.
Logic-Side Power Consumption: Approximately 150mA (5VDC) is consumed directly from the rack logic bus.
