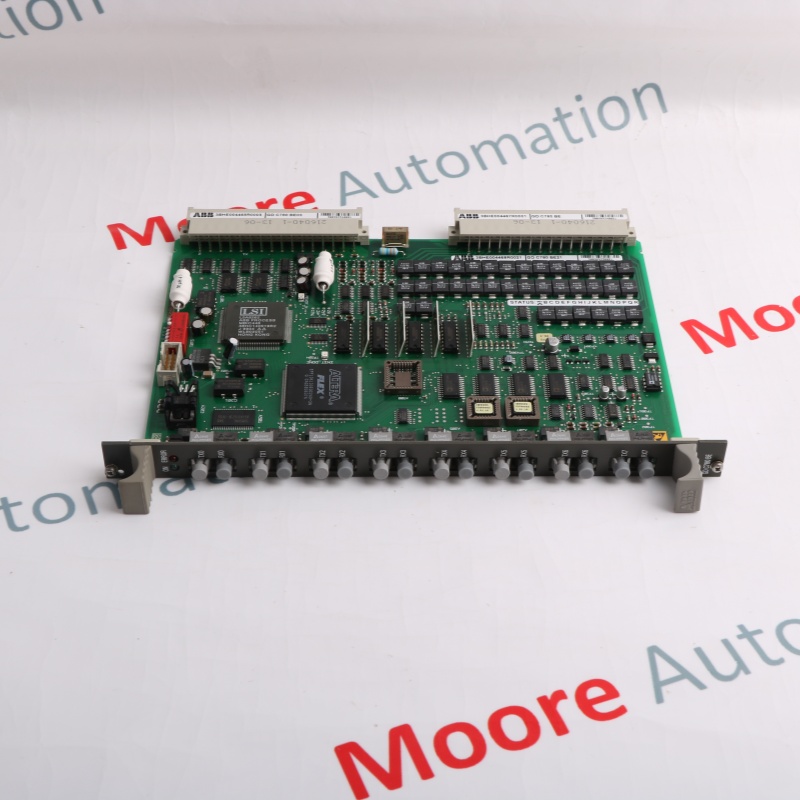

- UB C717 BE101; OVVP-Board Coated
- OVVP-Board Coated spare part for ABB drive systems
- Industrial automation and power management systems
As the core communication hub of the system, it coordinates the large-scale data flow between the main control processor and the distributed power modules. By providing a high-bandwidth dedicated bus interface, this unit ensures extremely high real-time performance and determinism in command transmission within complex power grid control logic, thereby supporting precise scheduling of power electronic switching devices.
This highly integrated design not only enhances the system's immunity to electromagnetic interference (EMI) but also ensures lossless transmission of control signals between different hardware abstraction layers, even in extreme industrial environments, through built-in redundant link management logic.
The 3BHE021887R0101 UBC717 BE101 ABB OVVP-Board may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 3BHE021887R0101 UBC717 BE101 OVVP-Board manual(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
During operation, it achieves microsecond-level clock synchronization at the hardware level, ensuring that all external units connected to the bus operate on a unified time base. Through a photoelectric conversion mechanism, the 3BHE021887R0101 UBC717 BE101 safely transmits logic instructions from the low-voltage side to the high-voltage side power supply hardware, achieving absolute electrical isolation between the control circuit and the high-voltage power supply circuit.
1. Digital I/O Interface: Serving as a bridge between the control system and field devices, it provides 16 digital inputs and 16 digital outputs for signal processing.
2. System Protection: The "OVVP" designation indicates integrated overvoltage protection, protecting sensitive control electronics from transient voltages.
3. Compatible Systems: It is a key component of the ABB ACS 6000, ACS 5000, and AC 800PEC control platforms, widely used in power generation, oil and gas, and marine automation.
