UAD144 A101 Complete identity
Application
Commissioning
Features:
- The documented abb article number is 3BHE016842R0101, and this value must match the supplied unit.

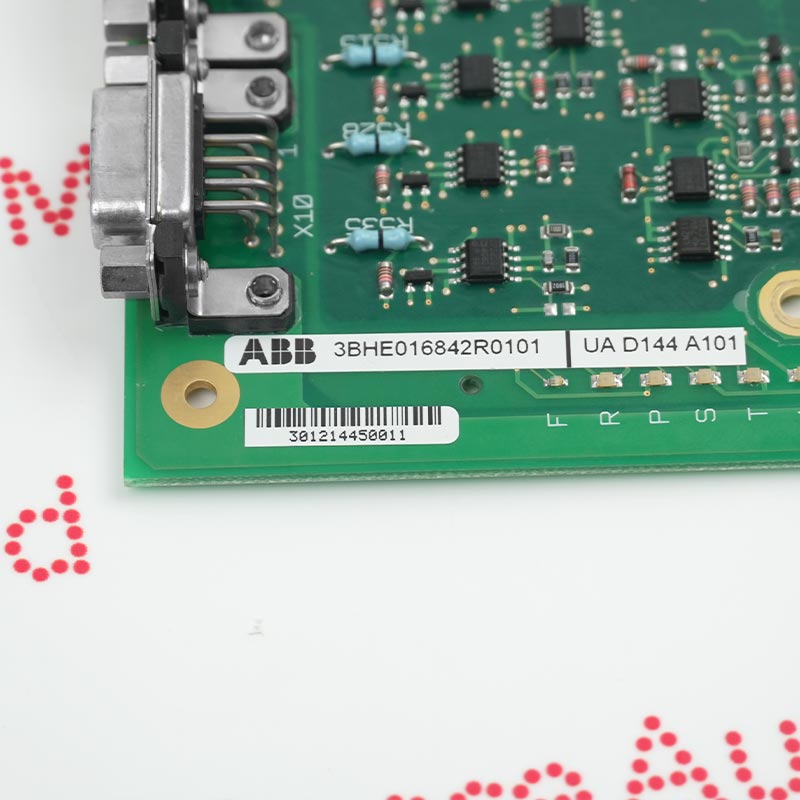

- The documented type designation is UAD144 A101, and this value must match the supplied unit.
- The documented product type is excitation-system interface board, and this value must match the supplied unit.
ABB 3BHE016842R0101 UAD144 A101 is documented for the applicable UNITROL Excitation Systems system configuration. Its recorded specification includes abb article number 3BHE016842R0101, type designation UAD144 A101, product type excitation-system interface board. Correct selection depends on the complete article identity, installed equipment, mechanical or electrical interfaces and the documented configuration rather than appearance alone. Using the exact model helps maintenance teams avoid incompatible revisions, connector arrangements and application variants.
Before installing 3BHE016842R0101 UAD144 A101, record the original nameplate, installed position, connected assemblies and every relevant configuration detail. Compare the supplied unit with the existing hardware and applicable ABB service documentation, isolate all affected energy sources and preserve required settings or calibration data. After installation, inspect each affected interface and complete controlled functional checks before returning the equipment to service.
The 3BHE016842R0101 UAD144 A101 ABB excitation-system interface board is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB 3BHE016842R0101 UAD144 A101 documentation and reference links.
Important Notice: Every linked document must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
Confirm 3BHE016842R0101, UAD144 A101, the receiving rack or equipment, connector population, hardware revision and documented configuration before replacement.
Use 3BHE016842R0101 UAD144 A101 only in the documented ABB UNITROL excitation systems position whose parts list, wiring and configuration name this exact execution.
Restore only the approved settings, review diagnostics and test the assigned function before releasing the equipment.
