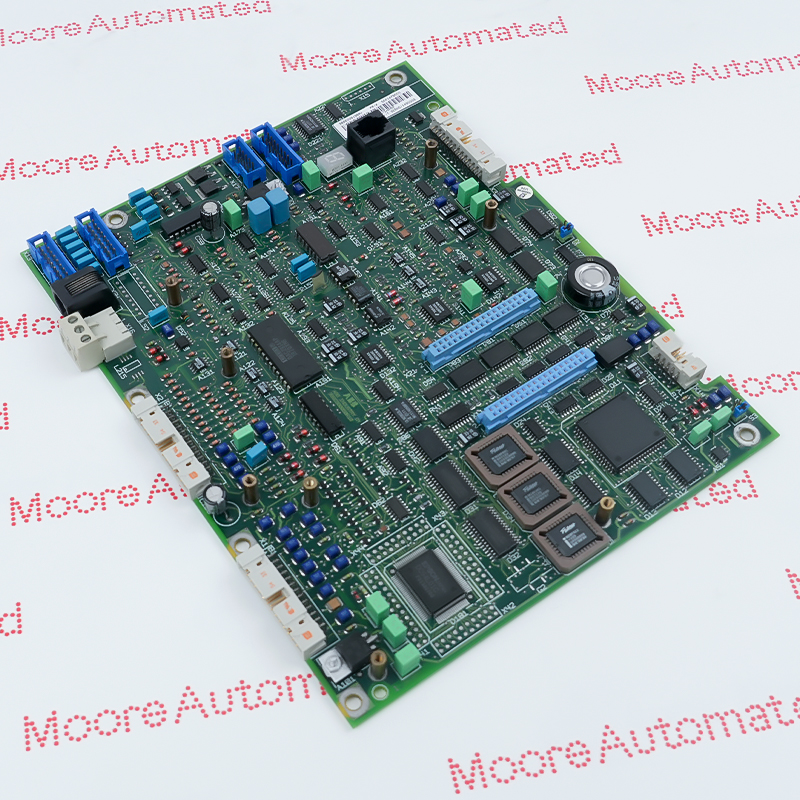

      Control Circuit Board

      SDCS-CON-H01 3ADT320000R1501

      Product Information:

      SDCS-CON-H01 3ADT320000R1501 is an ABB control circuit board used in the DCS880/DCT880 drive and thyristor-controller platform. It manages control processing, stores unit and application data through the X205 memory unit, supports three option slots, and provides watchdog and seven-segment diagnostics.

      Product image is representative; revision or series may vary. Contact us to request a specific version.
      Get a Quote
      • One-year warranty
      • Global shipping
      • Exact-model verification
      WhatsApp: +86 180 2077 6792 Email parts team
      01


      Model Verified

      Model, revision and nameplate reviewed
      02


      Email confirmation

      You will get an email confirming that we have received your enquiry
      03


      Dedicated Account Manager

      One of our team will be in touch to confirm your part(s) specification and condition
      04


      Your quote

      You will receive a comprehensive quote tailored to your specific needs
        • PRODUCT OVERVIEW

          What is this product?

          SDCS-CON-H01 3ADT320000R1501 is an ABB control circuit board used in the DCS880/DCT880 drive and thyristor-controller platform. It manages control processing, stores unit and application data through the X205 memory unit, supports three option slots, and provides watchdog and seven-segment diagnostics.

          Selection basis

          Match the complete 3ADT320000R1501 material number, receiving DCS880/DCT880 type code, memory unit, firmware and option layout.
        • APPLICATIONS

          Where it may be used

          Applications are specific to the documented product function and still require system-level verification.

          DC Motor Drives

          Provides the control-board function in compatible ABB DCS880 drive cabinets for motors, auxiliaries and process lines.

          Metals Processing

          Supports documented drive control in rolling, coiling and material-handling systems using the matching ABB power unit.

          Pulp & Paper Lines

          Used in compatible sectional-drive and winder cabinets where the complete DCS880 execution is verified.

          Cranes & Hoists

          Maintains control processing in matching ABB DC-drive systems used for lifting and heavy material movement.
      Technical specifications for

      SDCS-CON-H01 3ADT320000R1501

      0 TECHNICAL PARAMETERS
      • Manufacturer:
        ABB
      • Product Category:
        DC Drives
      • Product Type:
        Control circuit board
      • Supported Units:
        ABB DCT880 sizes T1 to T6
      • Internal Supervision:
        Integrated control-board watchdog
      • Memory Interface:
        X205 removable memory-unit connection
      • Option Slots:
        Three F-type option-module slots
      • Control Panel Interface:
        X13 RJ-45 panel / PC-tool connection
      • Control Cable Range:
        0.5 to 2.5 mm2 (24 to 12 AWG)
      • Terminal Torque:
        0.5 Nm (5 lbf-in)
      • Status Indication:
        V301 seven-segment display
      • Stock Availability:
        4
      Ask for Quote
      WHAT HAPPENS NEXT?

      From enquiry to delivery

      Six clear steps show what information is required and what the written quotation will contain.
      • 01

        Find the product

        Search the part number or send an inquiry for obsolete, discontinued or hard-to-find parts.
      • 02

        Provide the details

        Share the exact part number, quantity, condition, revision, destination and any required certificates or photos.
      • 03

        Review the quotation

        Receive price, currency, condition, availability, warranty, lead time, shipping terms and quotation validity in writing.
      • 04

        Confirm the order

        Accept the quotation in writing and complete the required payment before shipment.
      • 05

        Pay by bank transfer

        Pay the full invoiced amount by bank wire in RMB/CNY, GBP, EUR or USD using the official invoice details.
      • 06

        Verify and dispatch

        The item receives a pre-shipment inspection and suitable protective packaging. Functional testing is performed only where appropriate equipment and procedures are available for the specific item. We confirm the applicable inspection scope and provide tracking after dispatch.
      Request a Verified Quote
      BUYER INFORMATION

      Product condition level information

      Commercial details are confirmed in writing before payment.
      • 01

        Factory Sealed

        Unused product with the original factory seal intact; packaging age or storage marks may still be present.

        view
      • 02

        Original Pack

        Unused product in original manufacturer packaging that was not originally factory sealed.

        view
      • 03

        Factory New

        New and current product sourced through the manufacturer or authorized supply channel when expressly confirmed in the quotation.

        view

      Alternative Names

      SDCS-CON-H01 3ADT320000R1501 SDCS CON H01 3ADT320000R1501

      Information

      Overview Manuals Board Interfaces Memory & Parameters Replacement Diagnostics

      Features:

      • Internal watchdog supervises the board and firmware and disables firing control if a watchdog event occurs.
      • X205 accepts the removable memory unit containing firmware, parameters and the optional application program.
      • Three F-type option slots support documented I/O extensions and fieldbus adapters for the installed drive configuration.
      • X13, XC12, XS13, X14 and X38 provide the documented panel, power-interface and measurement-board connections.
      ABB documents the SDCS-CON-H01 as the common control-board platform for DCT880 sizes T1 through T6. The board coordinates firing control, digital and analog processing, parameter storage and option-module communication.

      Before replacement, isolate the drive, record every plug and option position, transfer the memory unit only with auxiliary power removed, and confirm the power-unit type code before restarting the equipment.

      The exact SDCS-CON-H01 3ADT320000R1501 identity, condition, included hardware and receiving-system fit must be confirmed before purchase or replacement.
      ABB SDCS-CON-H01 3ADT320000R1501 Control Circuit Board documentation and related resources.Important Notice: The uploaded PDF contains the original manufacturer first page and only the pages relevant to this model or identified product family. Confirm the complete order code, nameplate, connected hardware and installation requirements before replacement. Accessories, cables and certificates are included only when stated in the written quotation.

      Verify X205 memory, X13 panel, XC12 / XS13 / X14 / X38 power-interface connections and every installed F-type option module before transferring the board.

      Remove or install the X205 memory unit only with auxiliary power off. Confirm firmware, application, power-unit type and rating data before commissioning the replacement.

      After installation, check the V301 seven-segment indication, control-panel communication, connector seating and any rating-ID or type-code fault before enabling firing control.

      Technical notes

      SDCS-CON-H01 3ADT320000R1501 is a drive control circuit board. Isolate mains and auxiliary power, wait for the documented discharge period, label every connector and option, and remove the X205 memory unit only when de-energized. After replacement, verify the power-unit type code, rating data, firmware, V301 status and firing-control interlocks before returning the drive to service.

      Control Board Identity

      Confirm SDCS-CON-H01 and ABB material number 3ADT320000R1501 on the supplied label. The complete receiving DCS880 or DCT880 type code, frame size, firmware and option layout must match.

      Installation Evidence

      Provide the drive nameplate, power-unit rating, memory-unit label, option-module list and clear photographs of X205, X13, XC12, XS13, X14 and X38 before authorizing replacement.

      Customs & shipping dimensions / weight

      • Packed shipping dimensions
        Recorded exact-model dimensions
        31.5 x 26 x 6 cm. The value is taken from the warehouse record for SDCS-CON-H01 3ADT320000R1501 because the ABB manual does not publish packed dimensions; final packed dimensions are confirmed before dispatch.
      • Packed shipping weight
        Recorded exact-model weight: 2.1 kg
        The warehouse record for the exact model lists 2.1 kg; final gross shipping weight is recorded after protective packing.
      • HS / customs code
        8537109090
        Indicative China HS code for other electrical control or distribution apparatus not exceeding 1000 V; final classification is confirmed by the customs declarant.
      • Country of origin
        Verify supplied unit
        Country of origin is confirmed from the actual unit nameplate or applicable origin documentation before dispatch.
      • Ships from
        Xiamen, Fujian, China
        The dispatch location, quantity and handling time are confirmed in the written quotation.
      • Customs documents
        Confirmed for the destination
        Invoice, packing-list and origin-document requirements are agreed with the order.
      PRODUCT & ORDER FAQS

      Questions buyers ask about SDCS-CON-H01 3ADT320000R1501

      • Which ABB drive platforms use SDCS-CON-H01 3ADT320000R1501 as the control board?

        The board is documented for compatible ABB DCS880 drives and DCT880 thyristor controllers; confirm the complete hardware execution before replacement.

      • What does the SDCS-CON-H01 watchdog supervise?

        It supervises the control board and firmware; a watchdog trip resets and disables thyristor firing control and stops normal I/O processing.

      • What is stored in the X205 memory unit?

        ABB states that it contains firmware, parameters and the optional application program, with fault-log entries stored during auxiliary-power removal.

      • Which option modules can the board accept?

        The three slots are used for documented F-type I/O extension modules and F-type fieldbus adapters.

      • Can the memory unit be moved while powered?

        No. ABB warns that the memory unit must not be removed or inserted while the unit is powered.

      • What must be matched before replacement?

        Match the complete board material number, drive type code, power-unit rating, firmware, memory unit, connectors and option-slot population.

      • What warranty applies to the supplied board?

        Moore Automated provides a one-year warranty; the quotation confirms condition, test scope and included hardware.

      • Which shipping data is recorded for this item?

        Warehouse records for the exact model show 31.5 x 26 x 6 cm and 2.1 kg; final packed gross details are confirmed before dispatch.
