Features:
- The documented model family is CM15, and this value must match the supplied unit.
- The documented i/o build code 0 is Basic I/O, and this value must match the supplied unit.
- The documented functionality code 0 is Base functionality, and this value must match the supplied unit.

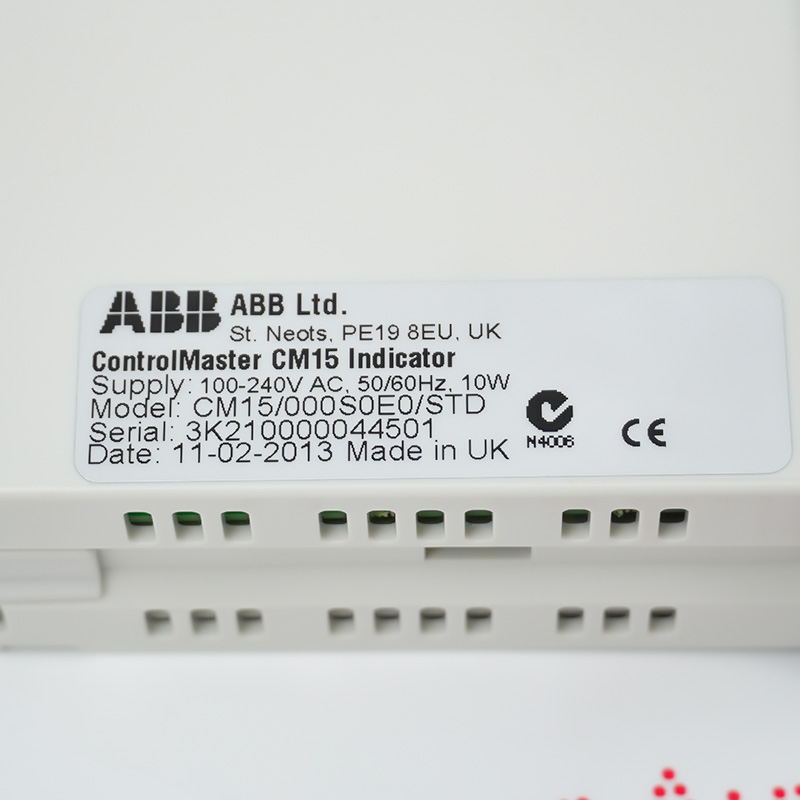

ABB CM15/000S0E0/STD is documented for the applicable DCS Systems system configuration. Its recorded specification includes model family CM15, i/o build code 0 Basic I/O, functionality code 0 Base functionality. Correct selection depends on the complete article identity, installed equipment, mechanical or electrical interfaces and the documented configuration rather than appearance alone. Using the exact model helps maintenance teams avoid incompatible revisions, connector arrangements and application variants.
Before installing CM15/000S0E0/STD, record the original nameplate, installed position, connected assemblies and every relevant configuration detail. Compare the supplied unit with the existing hardware and applicable ABB service documentation, isolate all affected energy sources and preserve required settings or calibration data. After installation, inspect each affected interface and complete controlled functional checks before returning the equipment to service.
The CM15/000S0E0/STD ABB DCS Systems is listed as Active / Available from OEM. Current revision, availability and supplied scope are confirmed in the written quotation.
ABB CM15/000S0E0/STD documentation and reference links.
Important Notice: Every linked document must identify the listed model or its documented family. Confirm the complete order code, hardware revision and installed-system requirements before replacement.
Each position in 000S0E0/STD identifies the installed I/O, function, communications, approval, supply and language.
Restore sensor type, range, units, linearization and display settings from the approved configuration.
Inject representative values and confirm display accuracy, alarm thresholds, relays and any configured retransmission.
