Their core function is to act as an intelligent bridge between field devices and the system bus, flexibly receiving analog signals (such as pressure and temperature) and binary switching signals. This series of modules features extremely high channel density and self-diagnostic capabilities. Each channel can typically be independently configured with filtering, calibration, and limit alarm functions, ensuring accurate and real-time acquisition of field data, providing a solid foundation for decision-making throughout the control system.
It incorporates comprehensive monitoring mechanisms that can detect transmitter power short circuits, line breaks, and internal hardware faults in real time, issuing immediate alarms via front panel indicator lights or the system bus. The module supports hot-swapping technology, allowing maintenance and replacement without interrupting system operation. Furthermore, its robust electrical design enables stable operation in harsh power plant environments with strong electromagnetic interference and extreme temperatures, making it a key component for ensuring the safe operation of energy infrastructure.
The GJR2389800R1210 81ET03N-E ABB Temperature Input Module may still be available for purchase and support from Moore Automated Company beyond End-Of-Life (EOL) by the manufacturer (OEM).

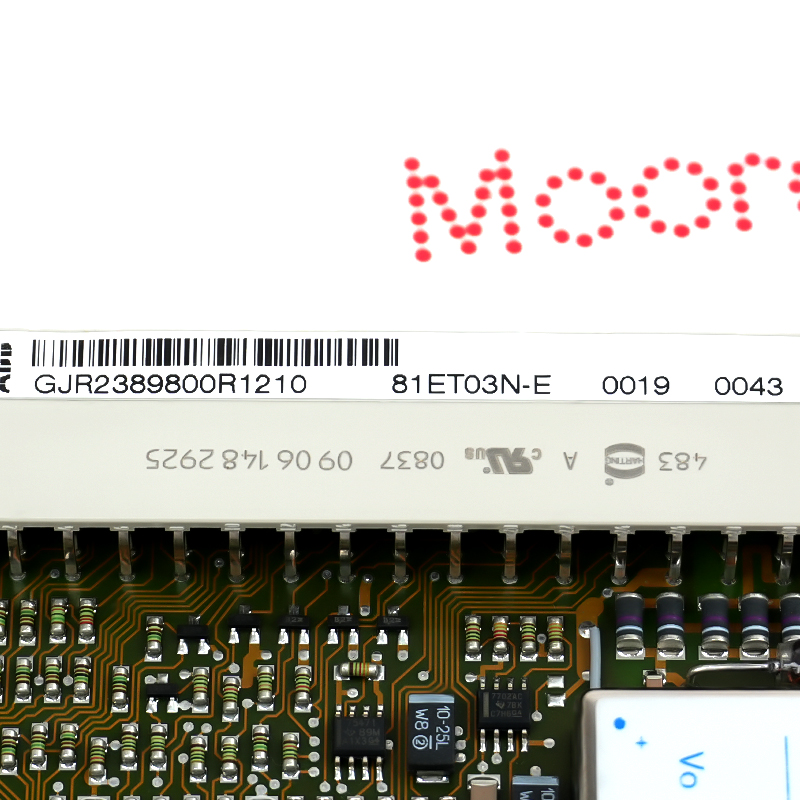

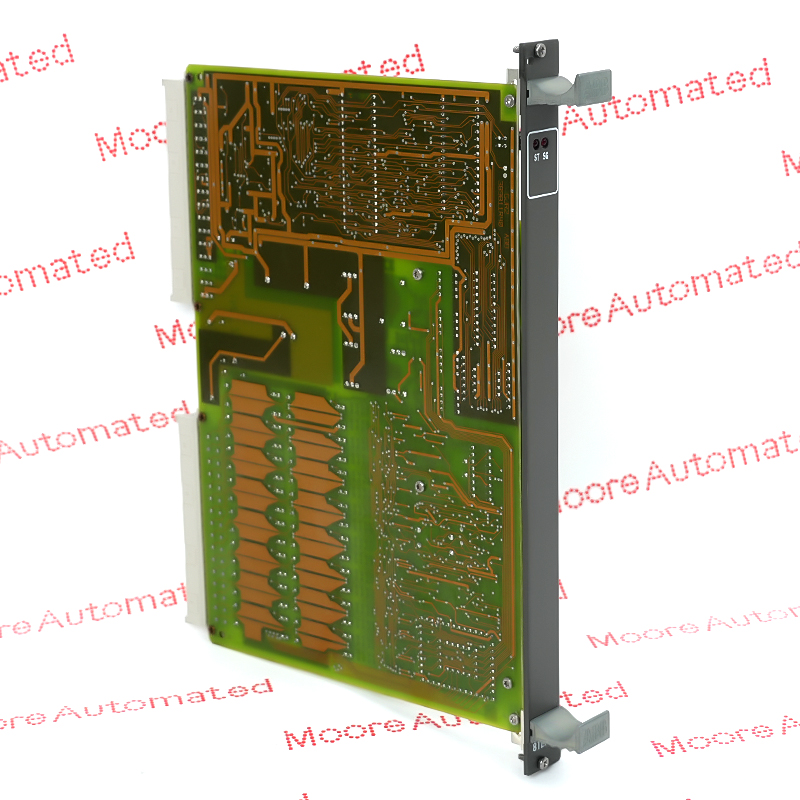

ABB GJR2389800R1210 81ET03N-E Temperature Input Module info(Datasheets), Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Its operating principle is based on distributed processing and standard bus communication: The module first receives raw electrical signals from field sensors through a monitored input interface and performs analog-to-digital conversion (ADC) or jitter suppression using an onboard microprocessor. The processed data undergoes engineering quantity conversion and verification according to preset logic, and is then encapsulated into standard telegrams with parity bits. Finally, this data is uploaded to the system bus via the PROCONTROL station bus interface for use by the controller or host; simultaneously, the module continuously executes a cyclic self-test program to ensure the integrity and authenticity of each transmitted signal.
Power Plant Instrumentation: It is a core component in thermal and nuclear power plants, used to monitor critical process temperatures in boilers, turbines, and exhaust systems.
Safety and Limit Signals: Each of its 16 channels can generate up to four independent limit signals, making it ideal for triggering alarms or protective shutdowns when temperatures exceed preset safety thresholds.
High-density signal acquisition: Each module is equipped with 16 functional units (channels) for large-scale data acquisition, while maintaining independent passive isolation for each measurement circuit to prevent ground loops.
